Product Description

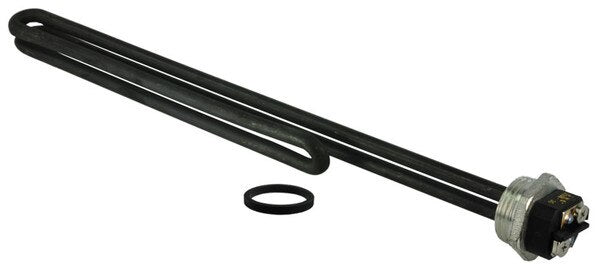

The Rheem UV12905 is a screw-in water heater element designed to convert electrical energy into heat for water heating systems. This component is made from stainless steel and operates at 5500 watts with a voltage rating of 240 volts. As a direct replacement for Rheem water heaters, this element is easy to install and features a fold back configuration for efficiency.
- Stainless steel construction ensures durability.
- Fold back configuration enhances heating efficiency.
- Standard thread size of one inch for compatibility.
Product Highlights
This element is suitable for various Rheem water heater models, providing reliable performance for residential and commercial applications.
Product Information
Standard Information
-
Manufacturer Part Number: UV12905
-
Input Voltage: 240 V
Technical Specifications
-
Wattage at 240V: 5500 W
-
Watt Density: 126 W/sq. in.
-
Watt Density Classification: MWD
-
Outer Sheath Material: Stainless Steel
-
Configuration: Fold back
-
Element Diameter: 0.316 in.
-
Element Length - Flange to Tip: 13.27 in.
-
Actual Thread Size - Outside Diameter: 1-9/32 in.
-
Nominal Thread Size: 1 in.
-
Threads per Inch: 11-1/2
-
Thread Type Series Designation: NPSM
-
Hex Head Size - Across Flats: 1-1/2 in.
