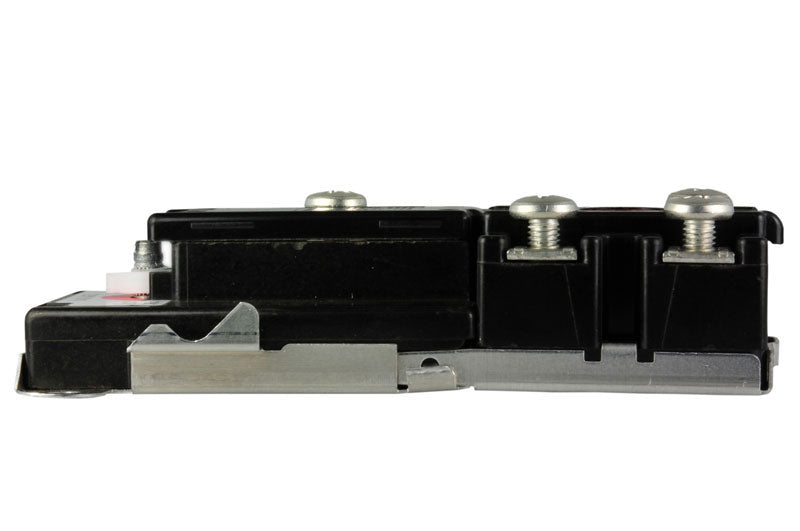

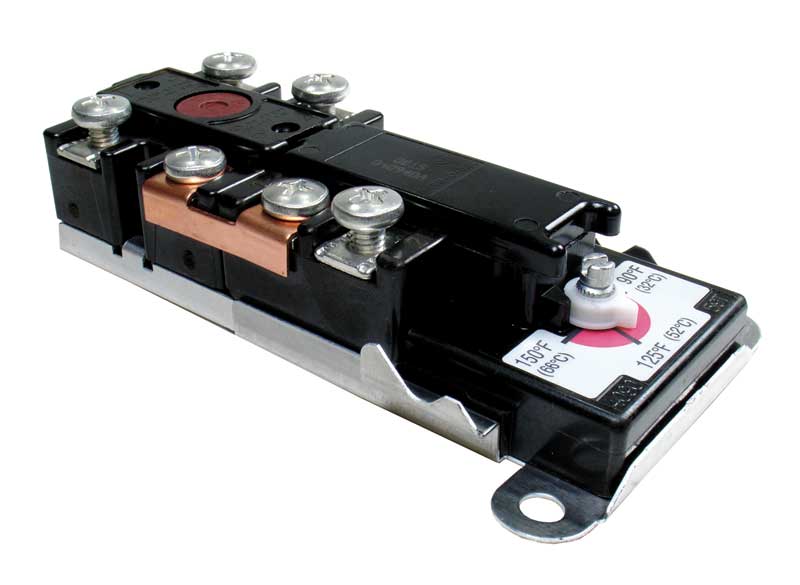

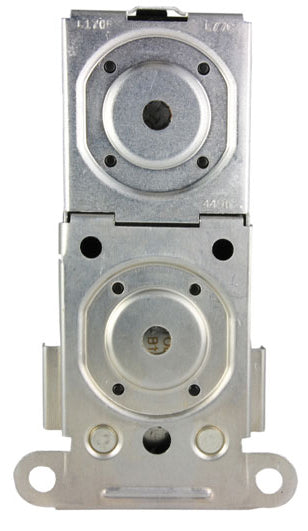

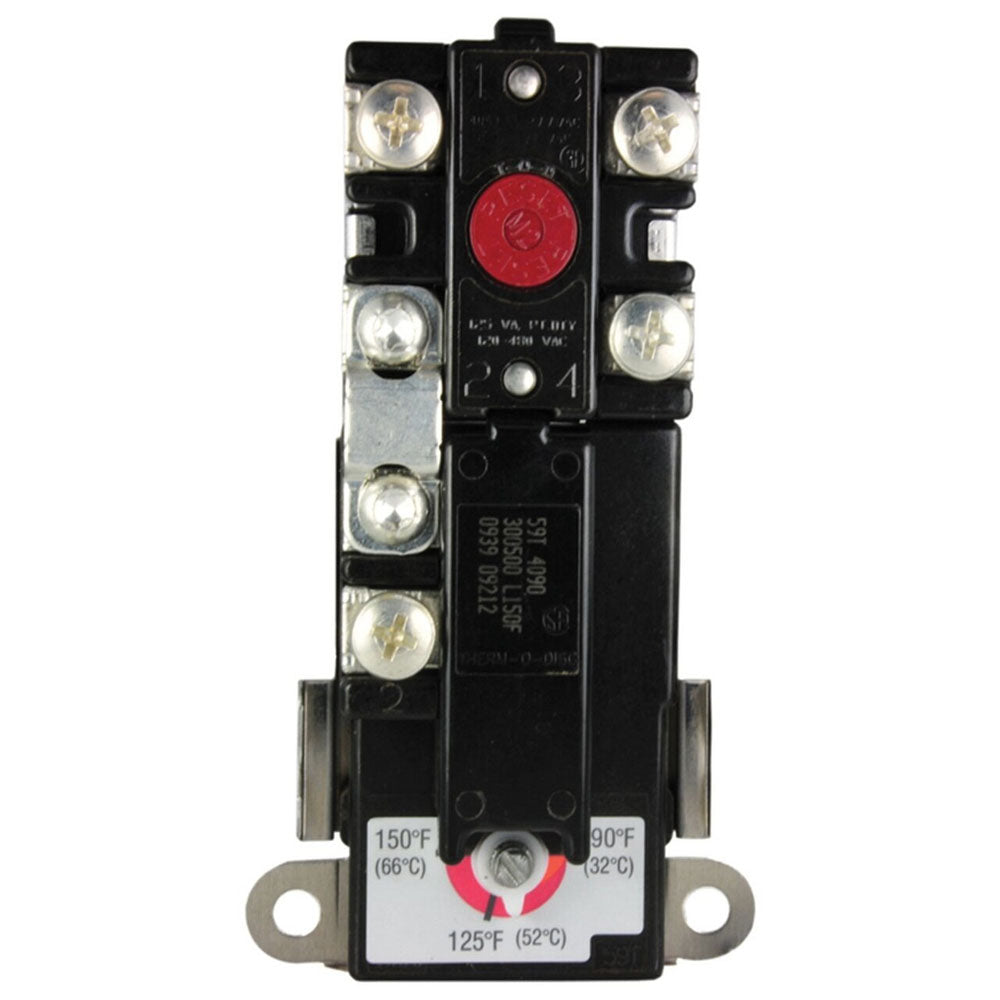

Rheem UV11699 Therm - Electric

Product Description

The Rheem UV11699 is a single system high-limit thermostat designed for electric water heaters. It features a therm-O-disc for precise temperature control. This thermostat can handle simultaneous and non-simultaneous operations at voltage levels of 208, 240, 277, or 480 volts. Its maximum operational temperature is one hundred fifty degrees Fahrenheit, with a high limit temperature set at one hundred seventy degrees Fahrenheit.

• Compatible with most residential electric water heaters
• Simultaneous operation for optimal performance
• Manual reset high limit control feature

Product Highlights

The Rheem UV11699 thermostat ensures reliable temperature management within electric water heating systems.

Product Information

Standard Information

• Brand: Rheem
• MPN: UV11699

Technical Specifications

• Type: Electric Thermostat
• Maximum Temperature: 150°F
• High Limit Temperature: 170°F
• Voltage Options: 208V, 240V, 277V, 480V
• Control Type: Manual Reset
• Configuration: Therm-O-disc Upper Thermostat
• Thermostat Adjustment Range: 90°F to 150°F
• Compliance Warning: This product contains chemicals known to the state of California to cause cancer or reproductive harm.
