Product Description

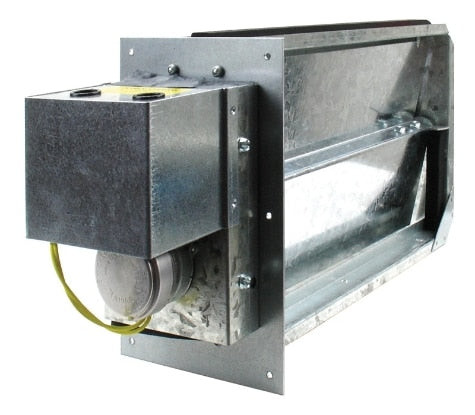

The RHEEM TREC14X10 is a rectangular low-pressure damper for HVAC systems. It features a strong galvanized steel frame along with a heavy-duty front plate, ensuring effective operation. The structure includes fully enclosed Celcon bushings on the blade shafts to reduce friction and noise during operation. The high-density foam rubber gasket and welded galvanized angle create a reliable seal, minimizing leakage between the blades and the frame. This damper is powered by a 24VAC full-stall motor, which removes the necessity for end switches to stop blade travel.
- Constructed with a durable galvanized steel frame
- Includes a motor terminal board and an LED indicator for damper closure
- Operates efficiently under low pressure with a maximum of 0.5 in. W.C.
Product Highlights
This damper is ideal for low-pressure applications, ensuring a quiet and reliable operation.
Product Information
Standard Information
-
Shape: Rectangular
-
Stroke/Travel: 90 degrees - Full Close
Technical Specifications
-
Supply Voltage (VAC): 24
-
System Compatibility: DigiTract 3 | DigiTract 4
-
Close Type: Power
-
Damper Configuration: Single Blade
-
Damper Type: Zone
-
Duct Opening Height (in.): 10
-
Duct Opening Width (in.): 14
-
Maximum Pressure Differential (in. W.C.): 0.5
