Rheem SP8296 Electric Thermostat Power EA Replacement MPN

Product Description

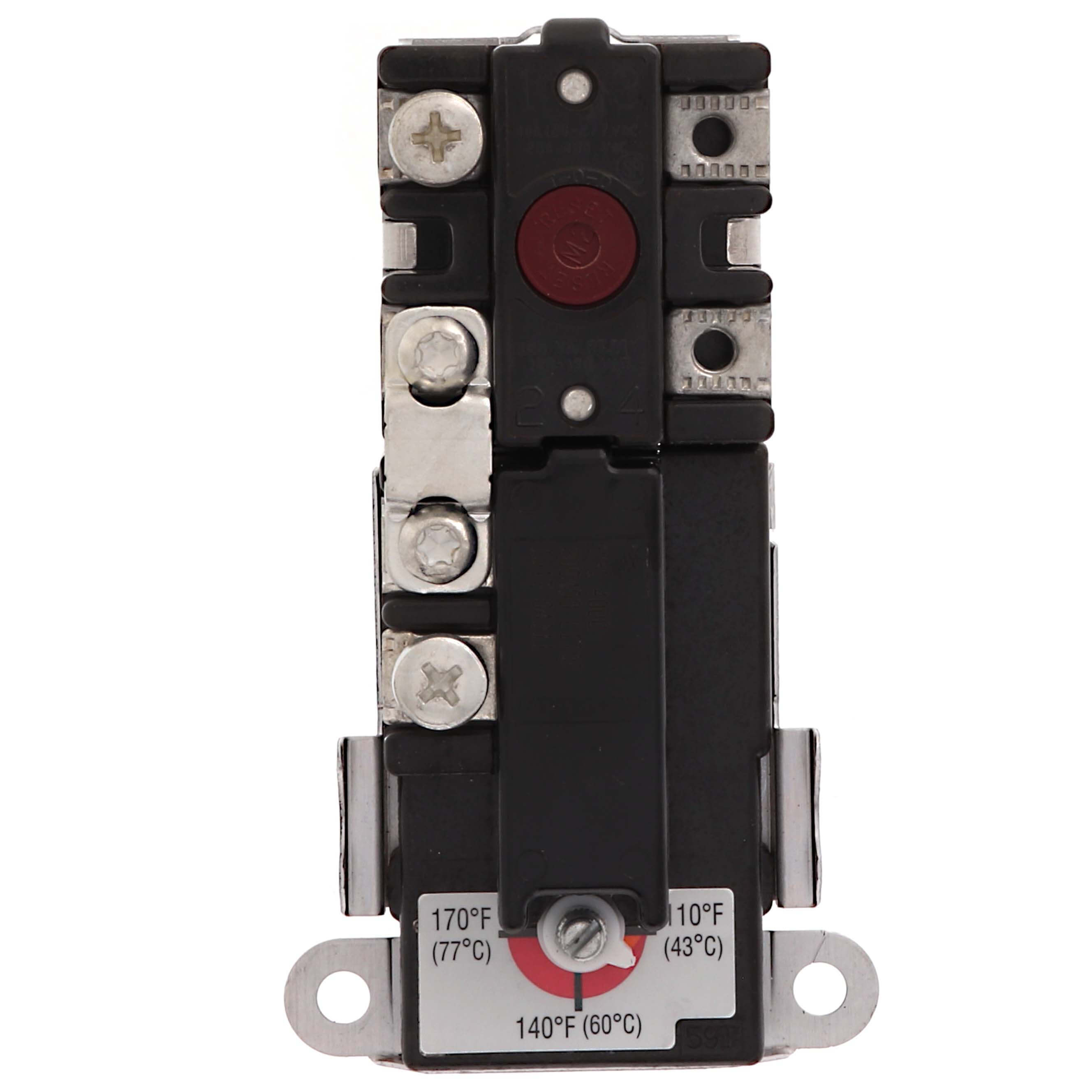

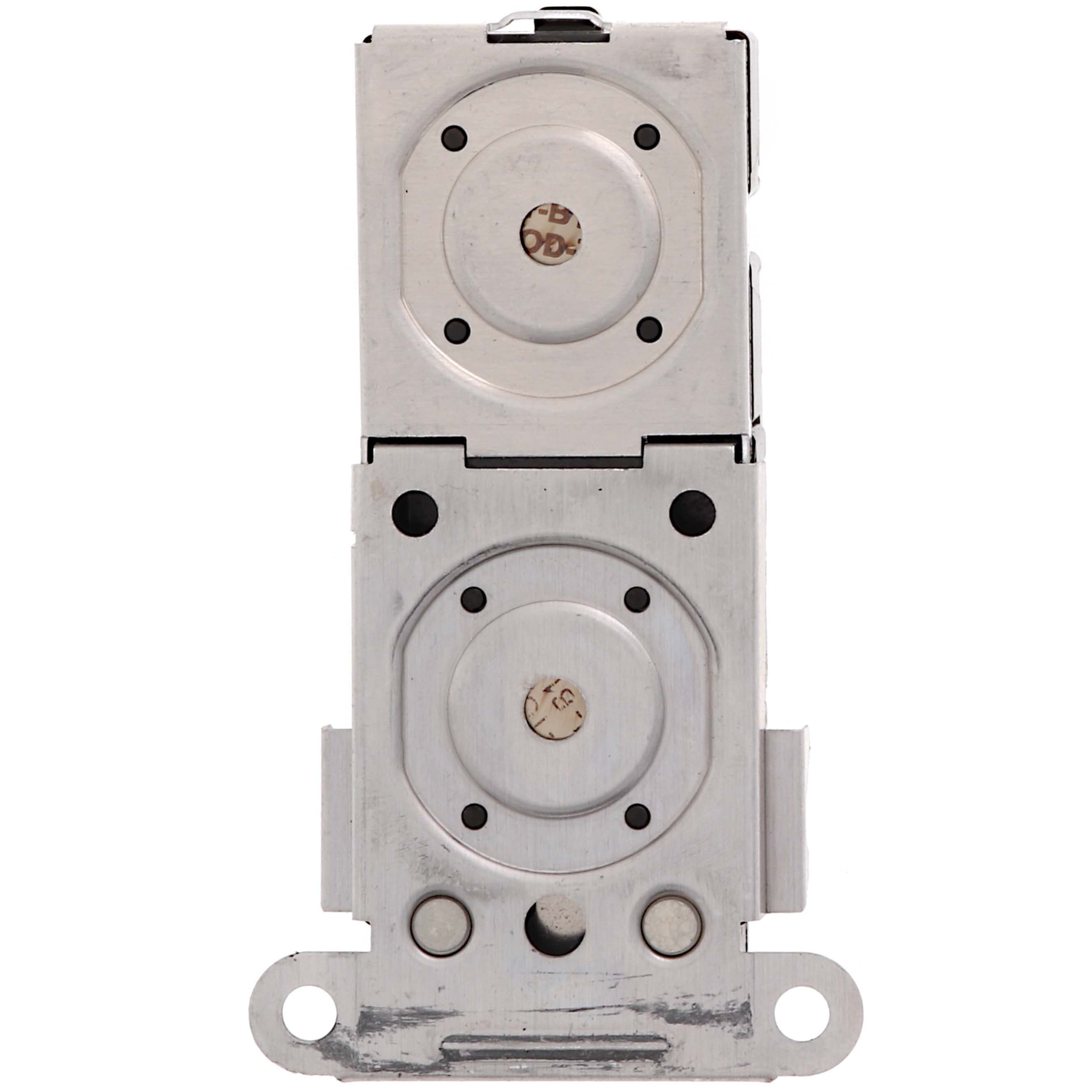

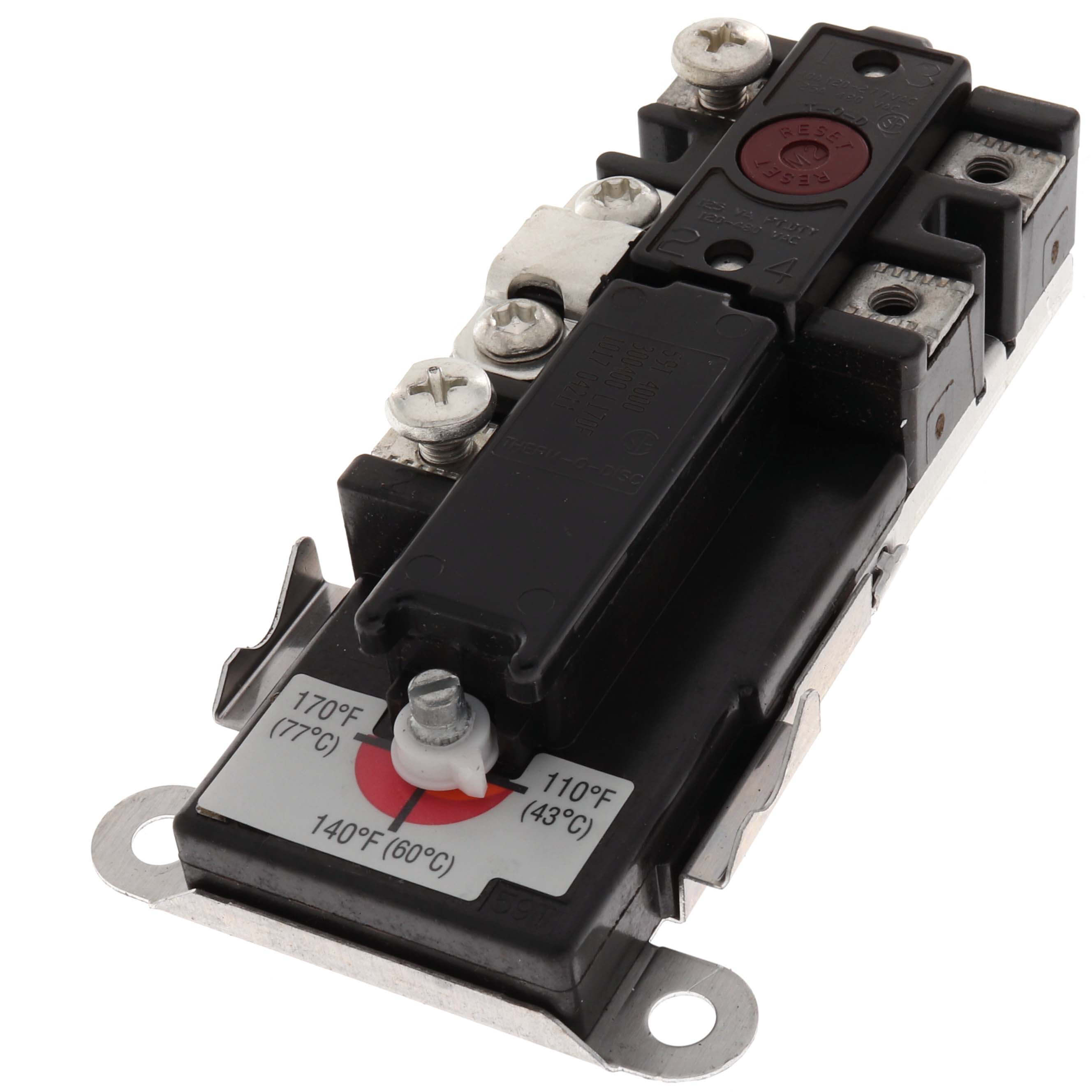

The Rheem SP8296 is an essential electric thermostat used in residential electric water heaters. This unit features a one-pole high limit design with normally closed contacts. It is widely recognized as one of the most common upper thermostats for residential installations.

• Non-simultaneous operation ensures only one heating element activates at a time.
• Manual reset high limit function enhances safety control.
• Adjustable temperature range of one hundred ten to one hundred seventy degrees Fahrenheit.

Product Highlights

This thermostat is suitable for use in various Rheem electric water heaters.

Product Information

Standard Information

• Brand: Rheem Parts
• Manufacturer: TOD
• Category: Plumbing Supplies > Water Heater Parts > Rheem Water Heater Parts > Thermostats

Technical Specifications

• High Limit Setting: 190°F
• High Limit Tolerance: +/- 5°F
• Thermostat Adjustment Range: 110 to 170°F
• Thermostat Tolerance: +/- 5°F
• Thermostat Differential: 5 to 15°F
• Thermostat Contact Configuration: SPST
