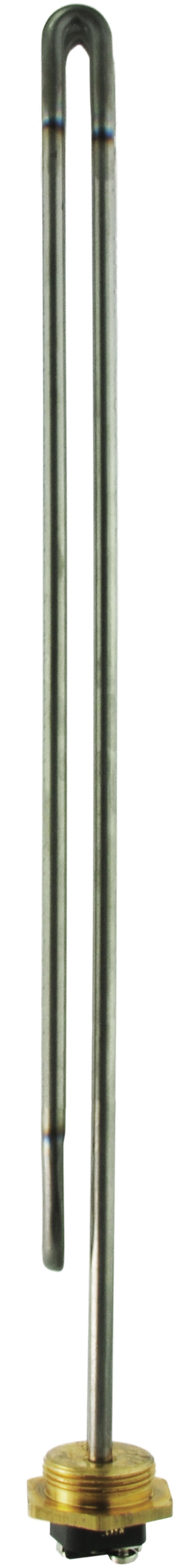

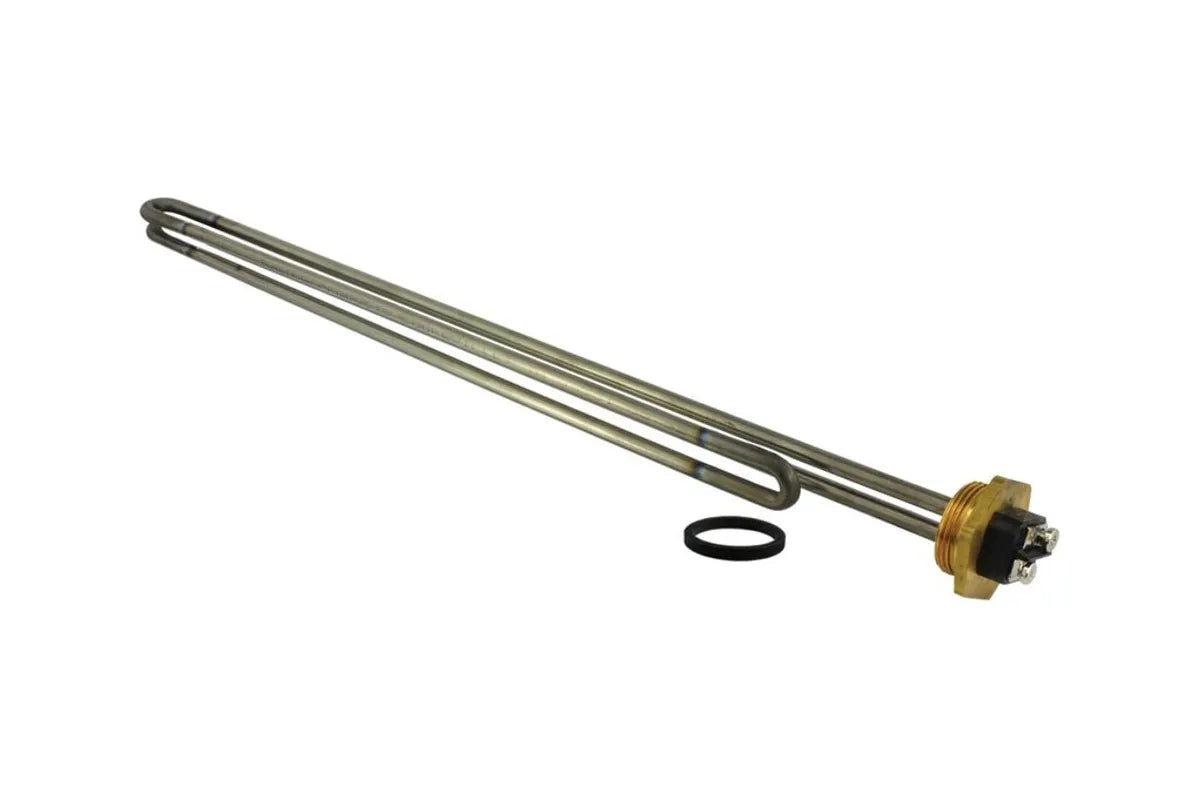

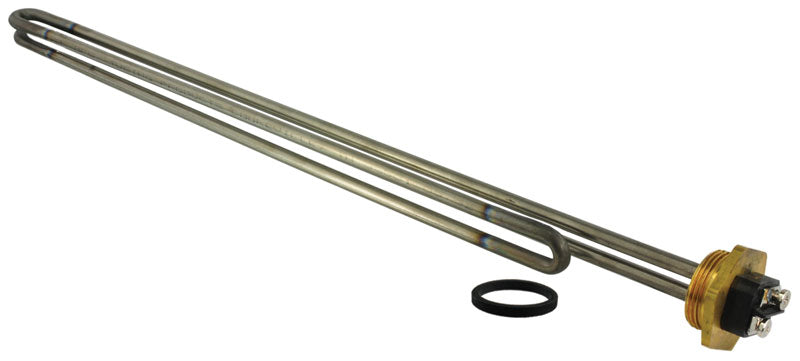

Rheem SP210199 Element 240V/3800W Titanium

Product Description

The Rheem SP210199 element is a 240V/3800W titanium element designed for water heaters. This element converts electricity into heat, which is then conducted into the water. The titanium construction resists corrosion and extends service life, helping maintain consistent water temperature. It is a LWD screw-in element, designed for efficient heating.

• Provides 3800 watts of power at 240 volts
• Titanium construction resists corrosion
• Fits various water heater models

Product Highlights

This Rheem element is ideal for maintaining consistent water temperature and is easy to install.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: SP210199

Technical Specifications

• Brand: Rheem
• MPN: SP210199
• Input Voltage (V): 240
• Wattage at 240V (W): 3800
• Outer Sheath Material: Titanium
• Mounting Type: Threaded
• Actual Thread Size - Outside Diameter (in.): 1-1/2
• Nominal Thread Size - (in.): 1-1/2
• Threads per Inch: 12
• Thread Type Series Designation: UNF
• Manufacturer: Rheem
• Number of Items: 1.0
• Watt Density Classification: LWD
• Watt Density at 240V (W/sq. in. ): 53
• Cold Resistance (ohms): 15.60
• Resistored: No
• Configuration: Foldback
• Element Diameter (in.): .316
• Element Length - Flange to Tip (in.): 19.95
• Hex Head Size - Across Flats (in.): 1-7/8
