Rheem rh2ty3617stannj 3 Ton 2-stage Air Handler R454B

Product Description

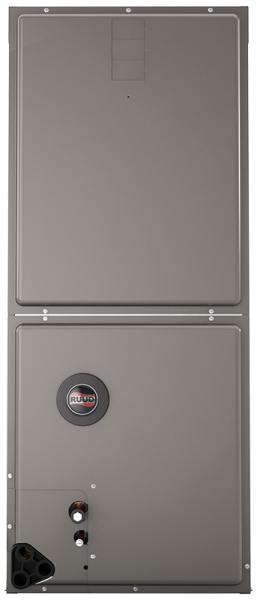

The RHEEM rh2ty3617stannj is a 3-ton, 2-stage residential air handler from the Endeavor Line, engineered for split-system HVAC applications using R454B refrigerant. It operates on 208/240 volts, single-phase, 60 Hz and uses an X13 constant-torque motor rated at 1/2 HP with five selectable speeds and a motor RPM range of 300 to 1100. The unit delivers between 1000 and 1200 CFM and is designed for installation by a licensed HVAC technician in residential or light-commercial ducted forced-air systems. The 4-way convertible cabinet allows for flexible installation orientation to suit a variety of job site conditions.

The rh2ty3617stannj fits ducted split-system installations where 2-stage cooling operation is required for improved humidity control and energy efficiency. The unit uses a thermostatic expansion valve (TEV) metering device and is compatible with R454B refrigerant systems. With a cabinet footprint of 17.5 inches wide by 21.6 inches deep by 42.5 inches tall, it is sized for closet, utility room, or mechanical space installations. The supply opening measures 16 inches wide by 10.26 inches deep, and the return opening measures 15.8 inches wide by 19.75 inches deep. Refrigerant connections are sweat-type: 3/8 inch liquid line and 3/4 inch vapor line.

Key Features

• 2-stage operation for better comfort and humidity management across varying load conditions
• X13 constant-torque motor with 5 selectable speeds and 300 to 1100 RPM range
• 4-way convertible cabinet for upflow, downflow, horizontal left, or horizontal right installation
• TEV metering device supports accurate refrigerant flow control
• R454B refrigerant compatibility aligns with current low-GWP refrigerant standards
• 10x10 blower wheel rated for 1000 to 1200 CFM airflow

Compatibility

Designed for use in residential split-system installations requiring 2-stage air handler performance with R454B refrigerant and a 3-ton capacity rating. Specific outdoor unit compatibility should be verified against AHRI ratings or the manufacturer's product match documentation before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation instructions. Disconnect and lock out all electrical power before servicing the unit. Refrigerant handling requires EPA Section 608 certification. Confirm cabinet orientation, duct connections, and drain pan configuration before securing the unit in place.

Technical Specifications

• Capacity: 3 Ton
• Stages of Operation: 2-Stage
• Voltage: 208/240 volts, 1-Phase, 60 Hz
• Motor Type: X13 Constant Torque, 1/2 HP, 5-Speed
• Motor RPM Range: 300 to 1100 RPM
• CFM Rating: 1000 to 1200 CFM
• Refrigerant Type: R454B
• Metering Device: TEV
• Configuration: 4-Way Convertible
• Communication: Non-Communicating
• Blower Wheel: 10x10
• Product Dimensions (W x D x H): 17.5 x 21.6 x 42.5 inches
• Supply Opening: 16 inches wide x 10.26 inches deep
• Return Opening: 15.8 inches wide x 19.75 inches deep
• Liquid Line Connection (Sweat): 3/8 inch
• Vapor Line Connection (Sweat): 3/4 inch
• Item Weight: 96 pounds
• Shipping Weight: 110 pounds

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: rh2ty3617stannj
