Product Description

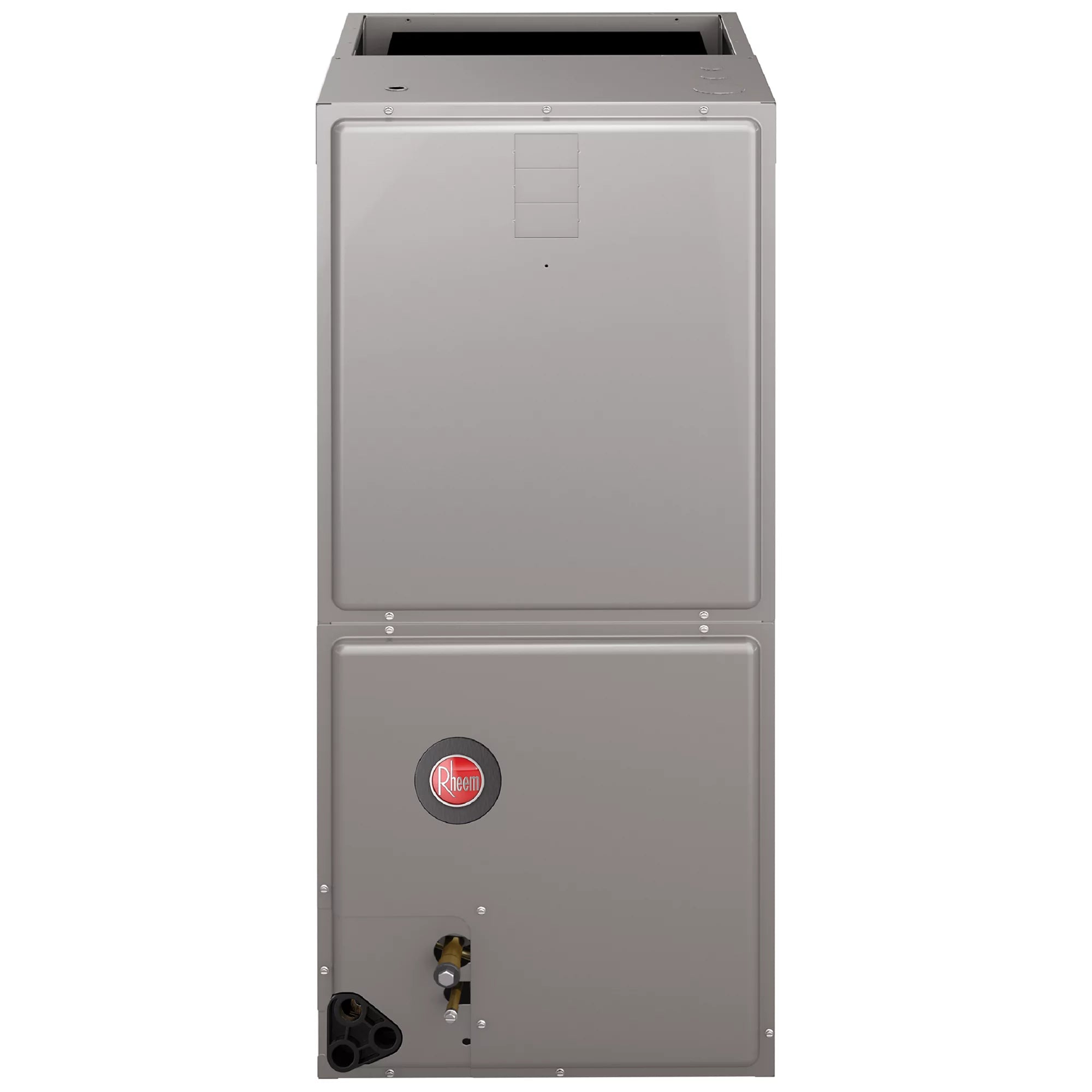

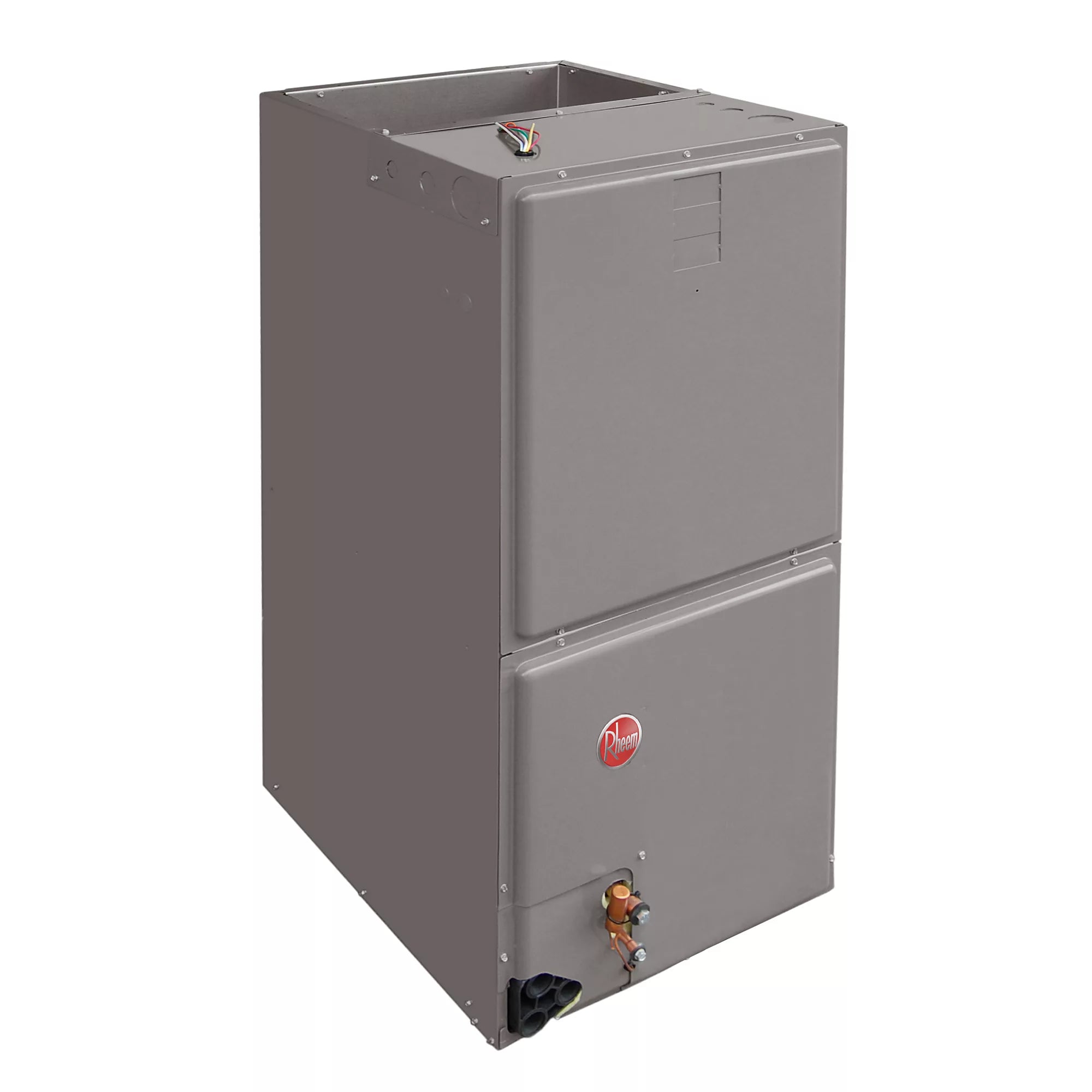

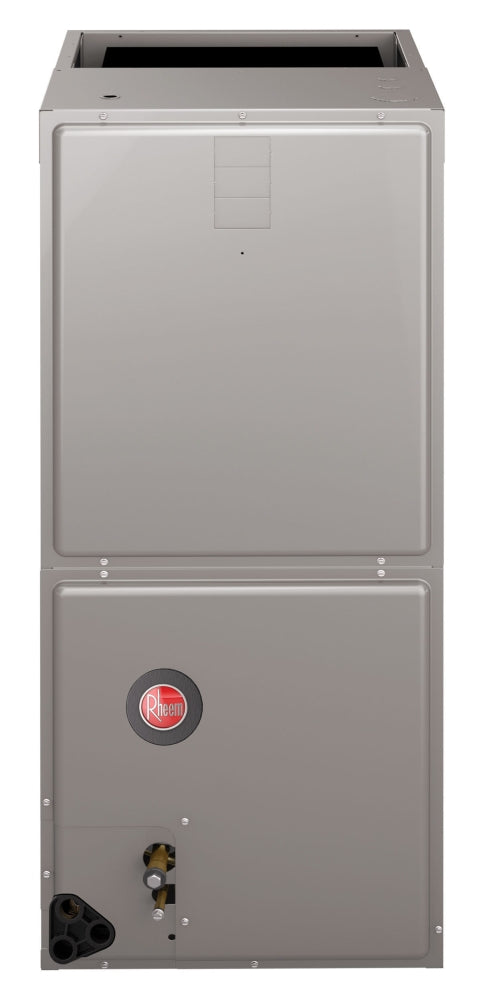

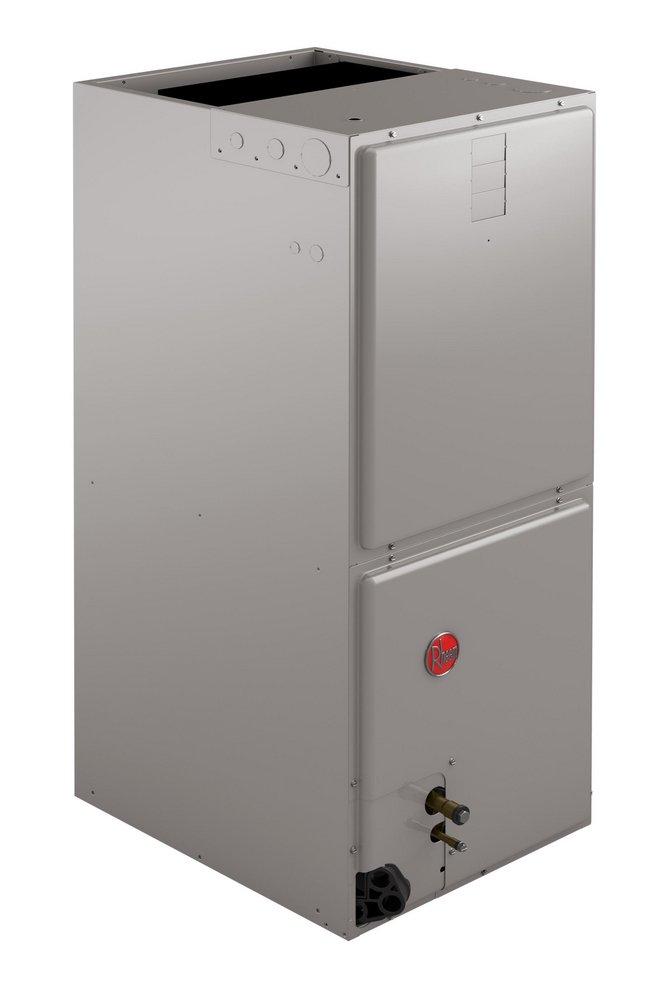

The RHEEM RH1P4221STANJA is a 3.5 ton air handler designed for indoor use with heat pump systems. It features a versatile 4-way convertible design for upflow, downflow, horizontal left, and horizontal right applications. The sturdy cabinet is constructed with 1.0 inch of foil-faced insulation for sound and thermal performance. This unit is designed for standard efficiency and uses R-410A refrigerant.
- Versatile 4-way convertible design
- Factory-installed indoor coil
- Sturdy cabinet construction with 1.0 inch of foil faced insulation
Product Highlights
Convertible air handler with insulated cabinet and factory-installed coil for efficient and versatile climate control.
Product Information
Standard Information
-
Brand: RHEEM
-
Manufacturer Part Number: RH1P4221STANJA
-
Country of Origin: MEX
Technical Specifications
-
AHRI - Usage: Indoor AHU
-
Air Flow Direction: Convertible
-
Blower Motor HP: 1/2 HP
-
Blower Motor RPM: 1075
-
Blower Motor Speeds: 2 (Two)
-
Blower Motor Type: PSC (Permanent Split Capacitor)
-
Brand: Rheem
-
Cabinet Width: 21
-
CFM: 1050-1400
-
CFM Cooling: 1260-1600
-
CFM Heating: 1260-1600
-
Cooling Capacity: 42000 BTU/Hour
-
Cycle/Hertz: 60 Hz
-
Drain Connection Quantity: 2
-
Drain Connection Size: 3/4"
-
Electric Heat Range [kW]: 3.6-24
-
Energy Star Rated: No
-
Equipment Type: Heat Pump
-
Filter Size: 20" x 20
-
Heating Capacity: 42000 BTU/Hour
-
Includes Filter Rack: No
-
Liquid Line Fitting Type: Sweat or Braze
-
Liquid Line Size (OD): 3/8"
-
Metering Device: TXV/TEV - Thermostatic Expansion Valve
-
Nominal Electric Heat (kW): 12.31
-
Phase: Single
-
Product Family: RH1P
-
Prop 65: Yes
-
Refrigerant: R-410A
-
SEER: 15
-
Stage: Single
-
Suction Line Fitting Type: Sweat or Braze
-
Suction Line Size (OD): 7/8"
-
Tier: Standard Efficiency
-
Tonnage: 3.5 Ton
-
UL Listed: Yes
-
Voltage: 208-240 VAC
-
Width: 24
-
Maximum Overcurrent Protection (MOCP): 15
-
Blower Wheel Diameter: 10"
-
Blower Wheel Width: 10"
-
Series: RH1P
-
RPM: 1067 to 1094
-
Depth: 21.688 in
-
Motor Type: PSC
-
Number of Speeds: 1
-
Wattage Rating: 665 to 700W
-
Stages of Air Flow: 1
