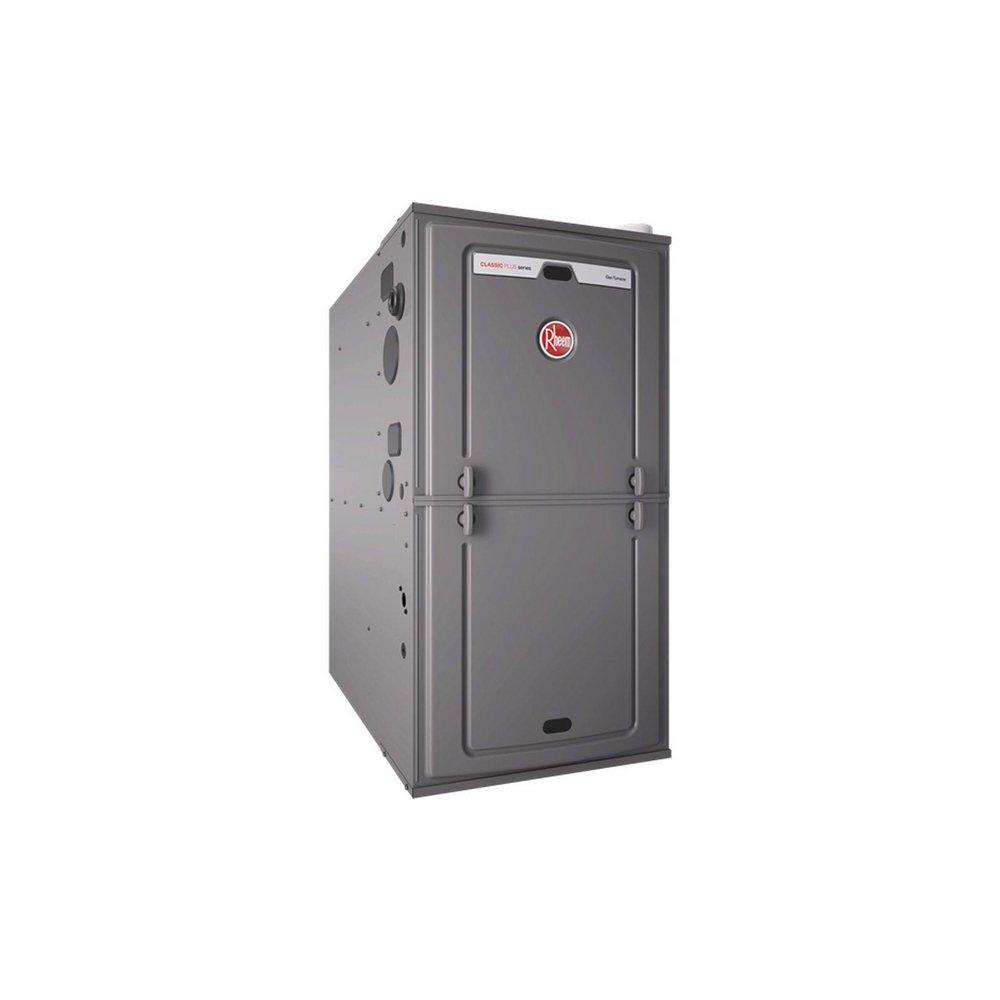

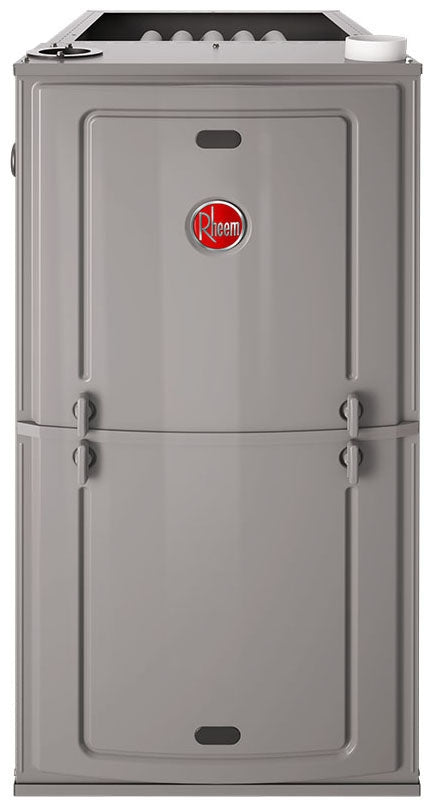

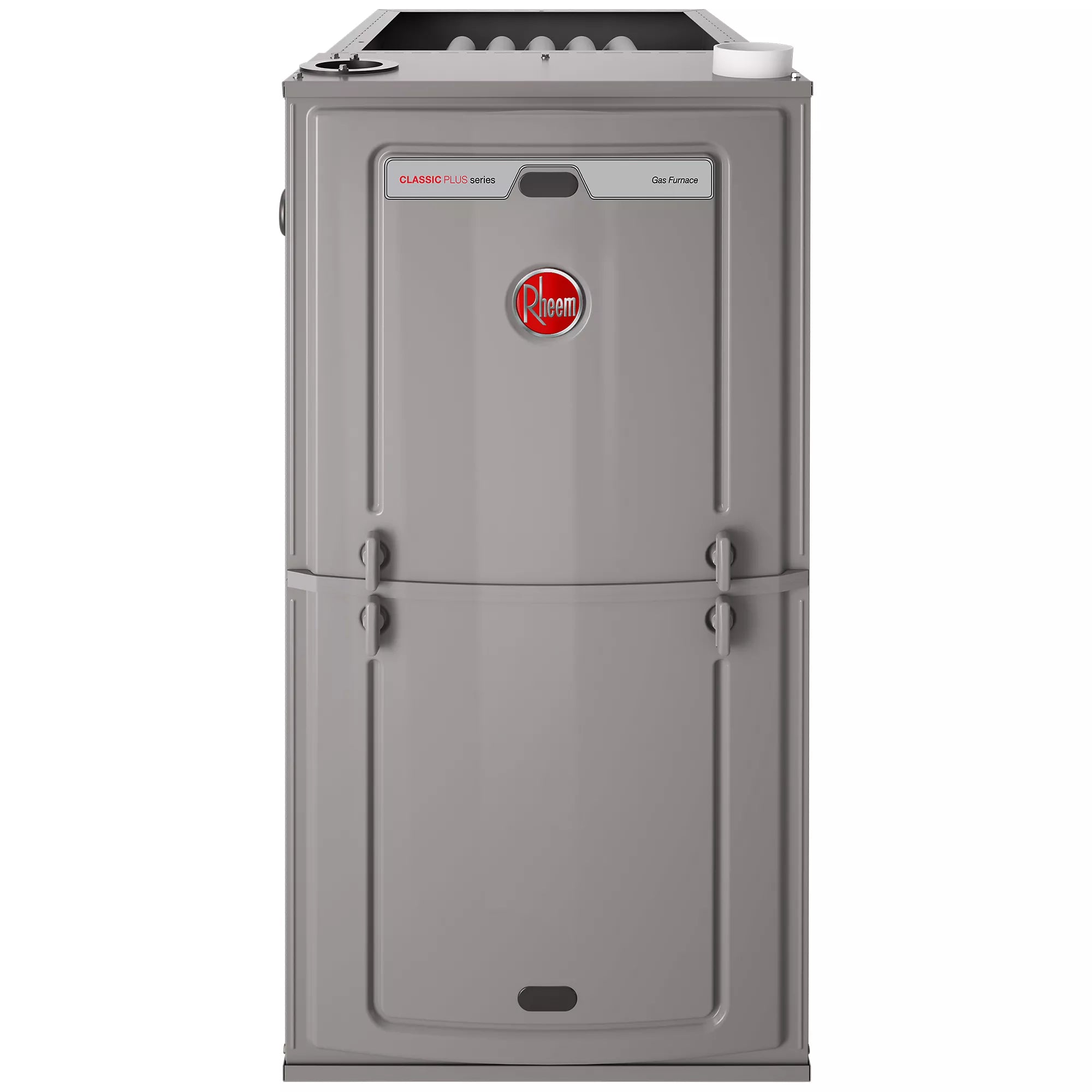

Rheem R96TA0702317MSA 70k BTU Gas Furnace, 96% Afue

Product Description

The RHEEM R96TA0702317MSA is a 70k BTU gas furnace with 96% AFUE. This upflow gas furnace features a two-stage constant torque design. It is designed for indoor air handler unit (AHU) usage and is compatible with natural gas or LP fuel types. The unit operates at 115 VAC and 60 Hz.

• 90% Plus Two Stage Constant Torque Upflow Gas Furnace
• AFUE rating of 96%
• Suitable for natural gas or LP fuel

Product Highlights

The RHEEM R96TA0702317MSA gas furnace provides efficient heating with its two-stage operation and is designed for easy installation and maintenance.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: R96TA0702317MSA
• Country of Origin: USA

Technical Specifications

• AFUE: 96
• AHRI - Usage: Indoor AHU
• Air Flow Direction: Upflow
• Blower Motor HP: 1/2 HP
• Blower Motor Speeds: 5 (Five)
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Brand: Rheem
• BTU Input: 70000
• BTU Output: 49000
• Cabinet Width: 17.5
• CFM: 135-725
• CFM Heating: 1198
• Cycle/Hertz: 60 Hz
• Energy Star Rated: Yes
• Equipment Type: Furnace
• FER Compliant: Yes
• Filter Size: 15 3/4" x 25"
• Fuel Type: Natural/Propane Gas
• Full Load Amps: 6.4
• Furnace Type: Gas
• Gas Connection Size: 1/2"
• Gas Connection Type: NPT
• Heating Stages: Two Stage
• Height: 35
• Ignition Type: Direct Spark
• Includes Filter Rack: No
• Length: 32.75
• Phase: Single
• Product Family: R96T
• Prop 65: Yes
• Stages Cool: 2
• Voltage: 115 VAC
• Width: 20.5
• Maximum Overcurrent Protection (MOCP): 15
• Country of Origin: USA
• Blower Wheel Diameter: 11"
• Blower Wheel Width: 8"
• Blower Wheel Size: 11" x 8"
• Gas Inlet Size: 1/2 Inch Threaded
• Series: R96T
• Motor Type: Constant Torque ECM
• MBH: 70 MBH
• BTU Heating Input: 70,000 BTU/h
• BTU Heating Output: 67,000 BTU/h
• CFM Airflow: 1,100 CFM
• Number of Stages: Two-Stage
• Vent Size: 2 or 3 Inch
• Minimum Circuit Rating: 8 Amp
• Motor Power Rating: 1/2 HP
• Temperature Rise Range °F: 40-70
• Tonnage: Up to 2 ton
• Number of Speeds: 5
• Connection Type: 1/2 in NPT
• Frequency Rating: 60 Hz
• Amperage Rating: 8 A
• Blower Size: 8 in W x 11 in Dia
• Configuration: Multi-Position
• Communicating: Yes
• Depth: 29.81 in
