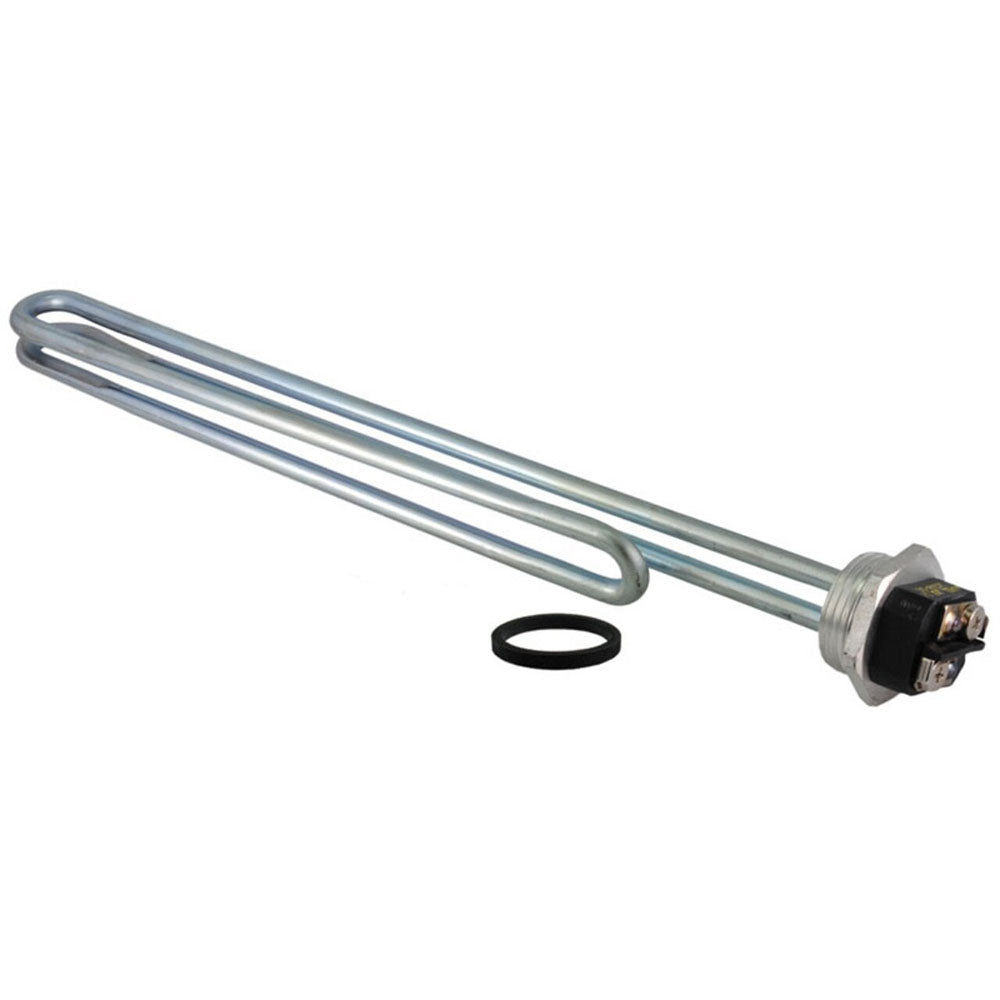

Rheem UV12901 4500W 240V Screw-In Copper Element

Product Description

The Rheem UV12901, a 4500W 240V screw-in copper element, is designed for efficient heating in water heaters. This non-resistored element provides reliable performance.

• Efficient heating with 4500W, 240V
• Durable copper construction
• Easy installation with screw-in design

Product Highlights

This Rheem copper element is ideal for water heater replacements. It is a non-resistored unit, ensuring consistent heating performance and long life. The element's screw-in design makes it suitable for quick installations.

Product Information

Standard Information

• Type: Water Heater Element
• Category: Water Heater
• Secondary Category: Elements
• Input Voltage (V): 240
• Wattage at 240V (W): 4500
• Outer Sheath Material: Copper (with Plating)
• Resistored: No

Technical Specifications

• Watt Density Classification: MWD
• Watt Density at 240V (W/sq.): 134
• Configuration: Foldback
• Element Diameter: 0.260 inches
• Element Length - Flange to Tip: 11.76 inches
• Mounting Type: Threaded
• Actual Thread Size - Outside Diameter: 1-9/32 inches
• Nominal Thread Size: 1 inch
• Threads per Inch: 11-1/2
• Thread Type Series Designation: NPSM
• Hex Head Size - Across Flats: 1-1/2 inches
