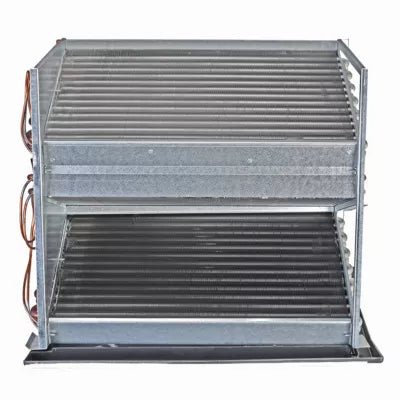

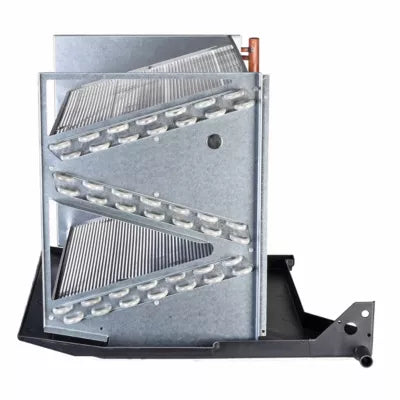

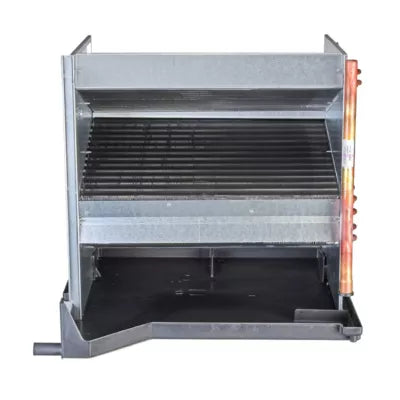

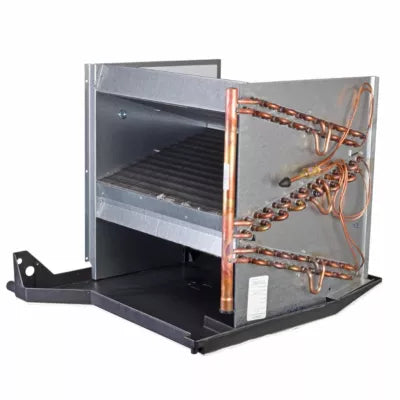

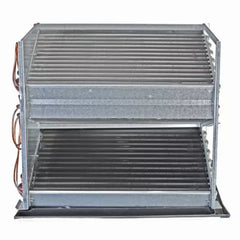

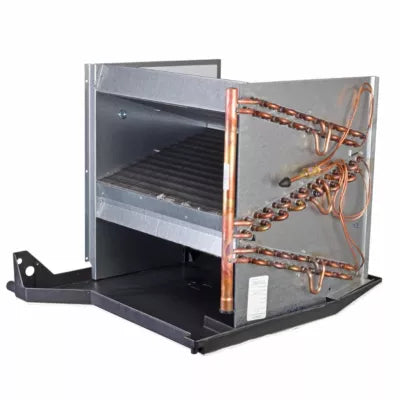

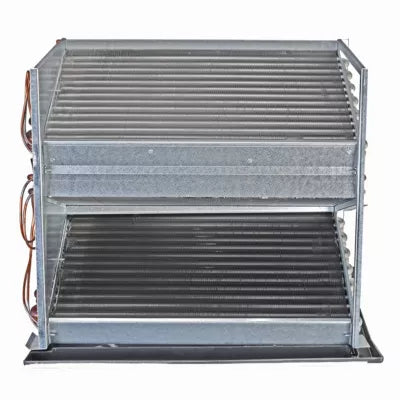

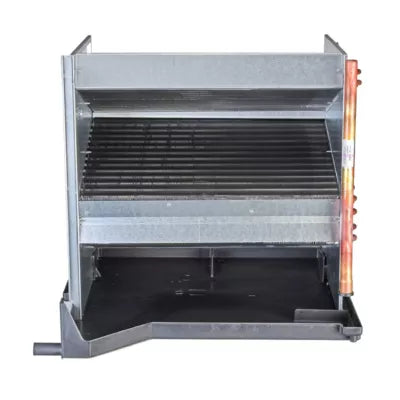

Rheem as-104668-04 Evaporator Coil Drain Pan

Product Description

The RHEEM as-104668-04 is a tin-plated evaporator coil drain pan designed as a direct OEM replacement component for residential and light commercial HVAC systems. The tin-plated construction provides corrosion resistance in the wet, condensate-heavy environment directly beneath the evaporator coil. This part is handled and installed by licensed HVAC technicians during routine coil service, drain pan replacement, or system refurbishment where the original pan shows cracking, warping, or corrosion damage that compromises condensate containment.

This drain pan is suited for split-system and packaged HVAC applications where the evaporator coil assembly requires a replacement pan to maintain proper condensate drainage and prevent water damage to the air handler or surrounding structure. It is sold as a single unit and is intended to restore the system to OEM specification. Installers should verify the pan dimensions and mounting configuration against the existing assembly before ordering.

Key Features

• Tin-plated construction resists corrosion from standing condensate
• OEM replacement design maintains original fit and drainage geometry
• Sold as a single unit for targeted component-level repair
• Intended for use in RHEEM evaporator coil assemblies requiring pan replacement

Compatibility

Designed as an OEM-style replacement drain pan for RHEEM evaporator coil assemblies. No additional compatible model numbers were specified in the product data. Confirm fitment against the original equipment assembly drawing or service manual before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out electrical power to the air handler or furnace before removing the evaporator coil assembly or drain pan. Verify that the condensate drain line is clear and properly sloped before reinstalling the pan. Follow local mechanical codes and manufacturer service documentation for fastener and sealing requirements.

Technical Specifications

• Material: Tin-plated steel
• Unit of Measure: Each

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: as-104668-04
