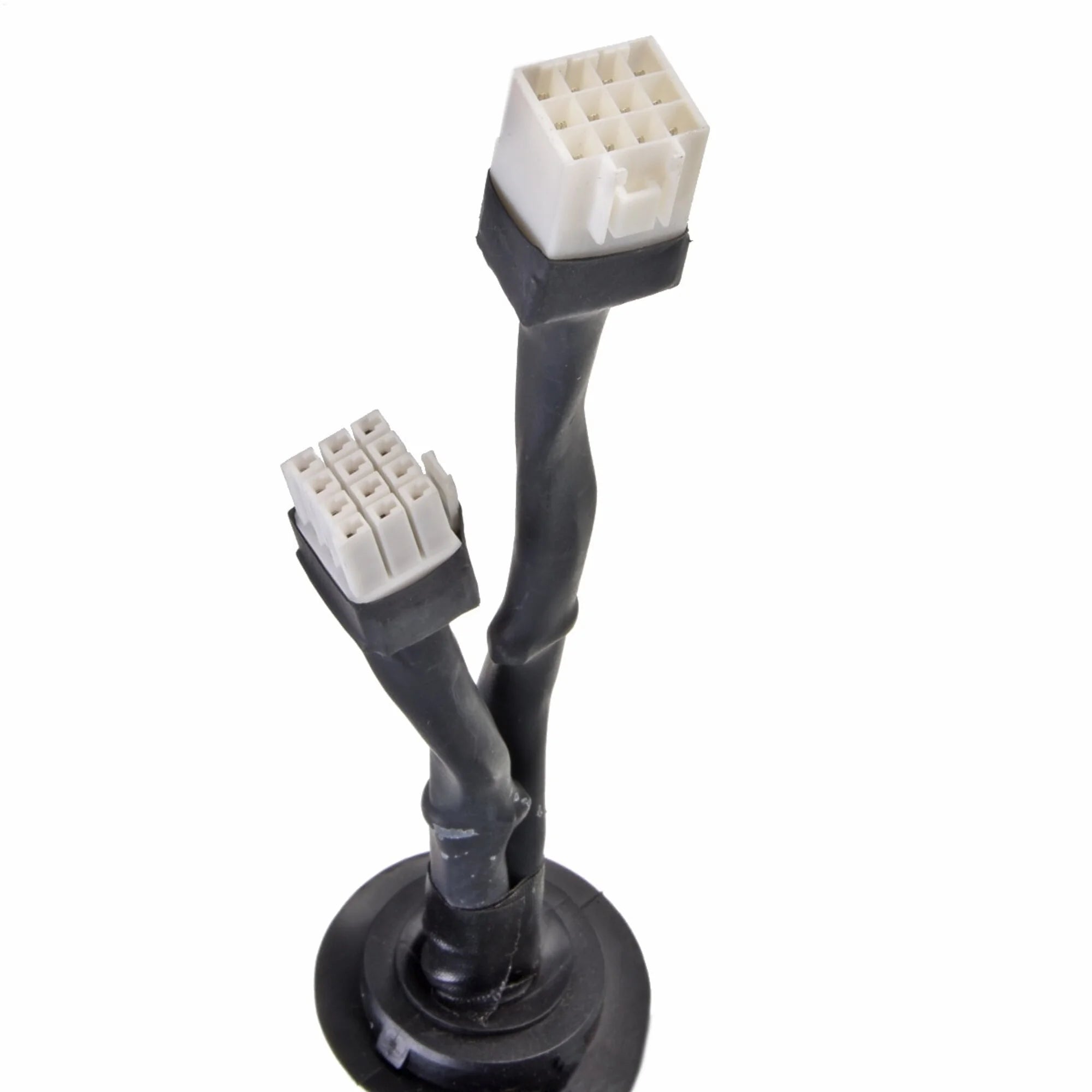

Rheem ap19238b-3 Wire Harness G2 Ghe 100

Product Description

The RHEEM ap19238b-3 is an OEM wire harness designed for use in Rheem HVAC equipment, specifically within G2 GHE 100 series systems. A wire harness organizes and routes electrical conductors inside the unit, protecting them from abrasion, heat, and vibration while ensuring reliable signal and power delivery between components. The inner jacket construction adds a layer of insulation and mechanical protection to the bundled conductors. This part is installed by licensed HVAC technicians during repair or replacement of damaged or degraded wiring assemblies.

This wire harness is intended for use in Rheem G2 GHE 100 series HVAC equipment. It is a direct OEM replacement component, maintaining the original wiring layout and connector configuration of the factory assembly. Technicians servicing residential or light commercial Rheem systems that use this harness designation will find it a direct fit for the intended application. Always confirm the part number against the unit service label or wiring diagram before installation.

Key Features

• OEM Rheem replacement wire harness for G2 GHE 100 series equipment
• Inner jacket construction provides added insulation and abrasion resistance
• Maintains original connector layout and routing for straightforward replacement
• Designed to meet factory wiring specifications for the intended system

Compatibility

Designed as an OEM replacement wire harness for Rheem G2 GHE 100 series HVAC equipment. Confirm compatibility by matching the part number to the unit service label or wiring diagram before ordering.

Installation Notes

Wire harness replacement should be performed by a licensed HVAC technician. Disconnect power to the unit at the disconnect box and verify zero voltage with a meter before handling any wiring. Route the replacement harness to match the original factory path, securing it away from sharp edges, moving parts, and high-heat surfaces. Follow applicable NEC requirements for electrical connections within HVAC equipment.

Technical Specifications

• Component Type: Wire Harness Inner Jacket
• Series: G2 GHE 100

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: ap19238b-3
