Rheem AP13047D Copper Element 240V 2500W Replacement MPN AP13047D

Product Description

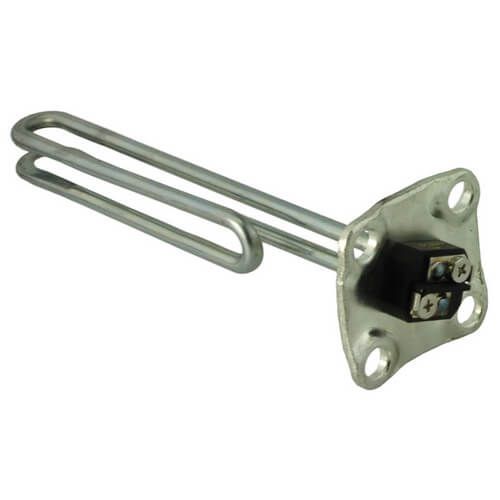

The Rheem AP13047D is a copper element for water heating applications, operating at 240V with a power output of 2500W. This model features a durable copper outer sheath with plating and comes equipped with a flange for easy installation. Its length measures nine point four four inches from the flange to the tip.

• Input voltage: 240V
• Power rating: 2500W
• Outer sheath material: Copper with plating

Product Highlights

Designed for effective heating and reliable performance in water heating systems.

Product Information

Standard Information

• Manufacturer Part Number: AP13047D
• Element Length: 9.44 inches

Technical Specifications

• Input Voltage: 240V
• Wattage: 2500W
• Outer Sheath Material: Copper with Plating
• Element Diameter: 0.26 inches
• Flange Bolt Circle Diameter: 2.50 inches
• Flange Hole Diameter: 0.41 inches (four places)
• Watt Density at 240V: 162 W/sq. in.
• Watt Density Classification: HWD
• Resistored: No
