Rheem a246 Draft Inducer Blower 115V 2-speed

Product Description

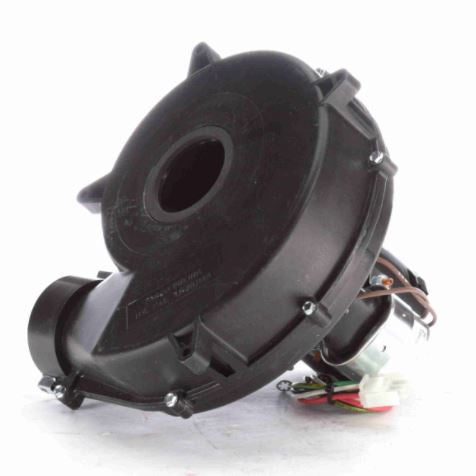

The RHEEM a246 is a draft inducer blower motor assembly designed for gas furnace applications. It operates on 115 volts and draws 0.85 amps, with a 2-speed design running at 3400 RPM on high and 2400 RPM on low. The motor uses a ball bearing construction for reliable long-term operation. Clockwise (CW) rotation is standard. This assembly is installed by licensed HVAC technicians during routine furnace maintenance, component replacement, or system restoration when the original inducer motor has failed or shows signs of reduced airflow performance.

This draft inducer blower is suited for residential gas furnace installations where induced-draft combustion is required. It is commonly found in Rheem and Ruud branded furnace equipment and serves as a direct OEM-style replacement for failed or worn inducer assemblies. The 2-speed capability allows the furnace control board to match inducer speed to the current firing stage or call for heat, supporting proper combustion airflow across operating conditions.

Key Features

• 2-speed operation: 3400 RPM high and 2400 RPM low
• Ball bearing motor construction for extended service life
• Clockwise (CW) rotation
• 115 volt single-phase input
• 0.85 amp draw
• Direct replacement for OEM part numbers 70-24206-01, 70-24206-02, 7062-3925S, 7062-5272, and Rheem-Ruud 7062-3925

Compatibility

Direct replacement for OEM part numbers 70-24206-01, 70-24206-02, 7062-3925S, 7062-5272, and Rheem-Ruud 7062-3925 as stated in manufacturer cross-reference data.

Installation Notes

Draft inducer blower replacement is performed by licensed HVAC technicians. Shut off all power to the furnace at the disconnect and breaker before beginning any service work. Confirm rotation direction and speed wiring match the original assembly before restoring power. Work should conform to applicable local mechanical codes and the furnace manufacturer service documentation.

Technical Specifications

• Voltage: 115 volts
• Amperage: 0.85 amps
• Speed: 2-speed
• RPM High: 3400 RPM
• RPM Low: 2400 RPM
• Rotation: Clockwise (CW)
• Bearing Type: Ball bearing

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: a246
