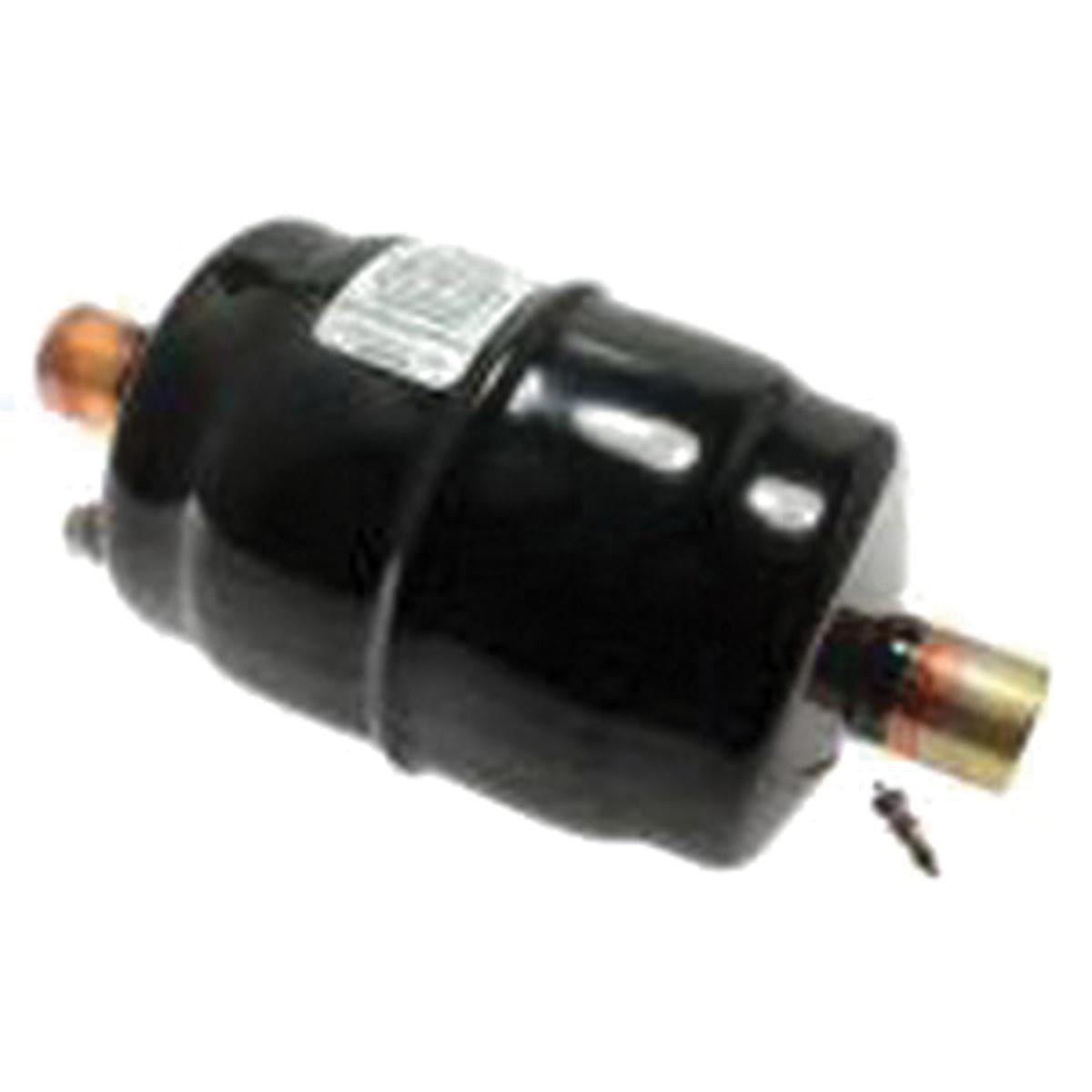

RHEEM 83-25209-03 Suction Line Filter Drier Sweat 16 cu-in Surface Area

Product Description

The RHEEM 83-25209-03 Suction Line Filter Drier offers a sweat connection and is rated for pressures up to 650 psig. This filter drier is designed for R-22 and R-410A refrigerants, making it suitable for various cooling systems. It has a surface area of sixteen cubic inches, allowing for efficient moisture removal from the refrigerant. The filter features a robust construction with a solid core and solid copper fittings.

• Pressure rating of 650 psig
• Compatible with R-22 and R-410A refrigerants
• Compact dimensions of three inches in diameter by six and five-sixteenths inches in length

Product Highlights

This product is engineered to enhance the reliability and efficiency of HVAC systems.

Product Information

Standard Information

• Connection Type: Sweat
• Surface Area: 16 cu-in

Technical Specifications

• Flow Capacity: 4.6 ton, 5.9 ton
• Pressure Rating: 650 psig
• Refrigerant Type: R-22, R-410A
• Finish: Epoxy Powder-Coated
• Dimensions: 3 in Dia x 6-5/16 in L
