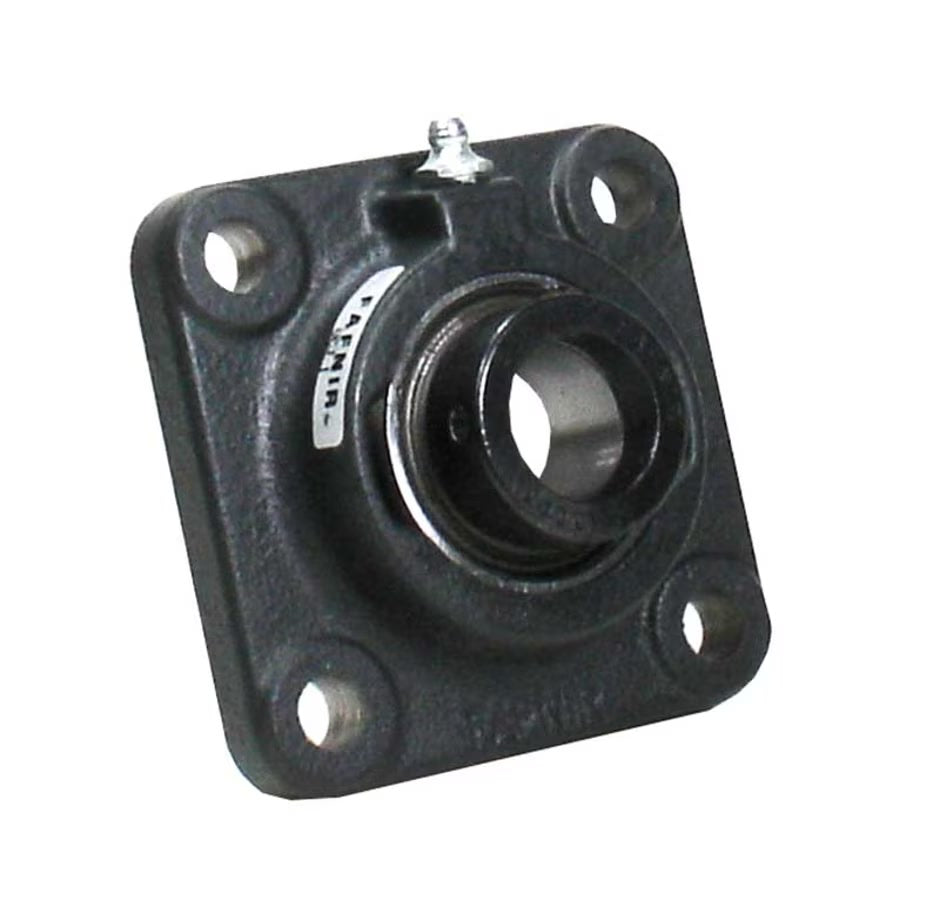

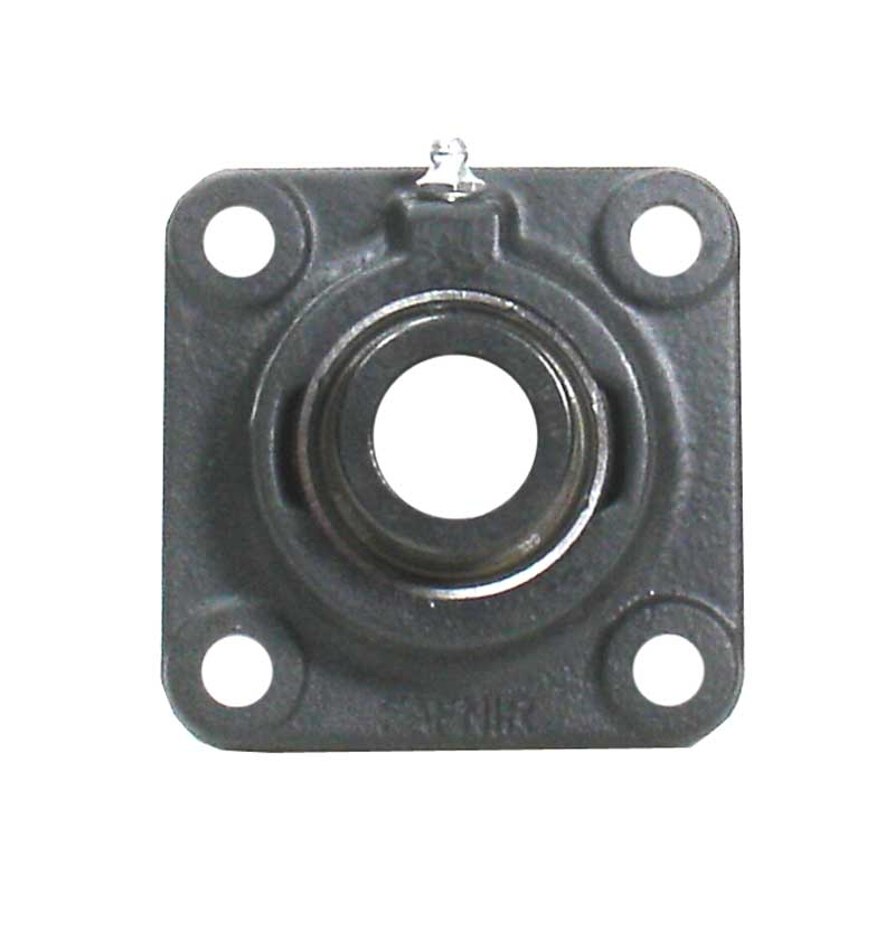

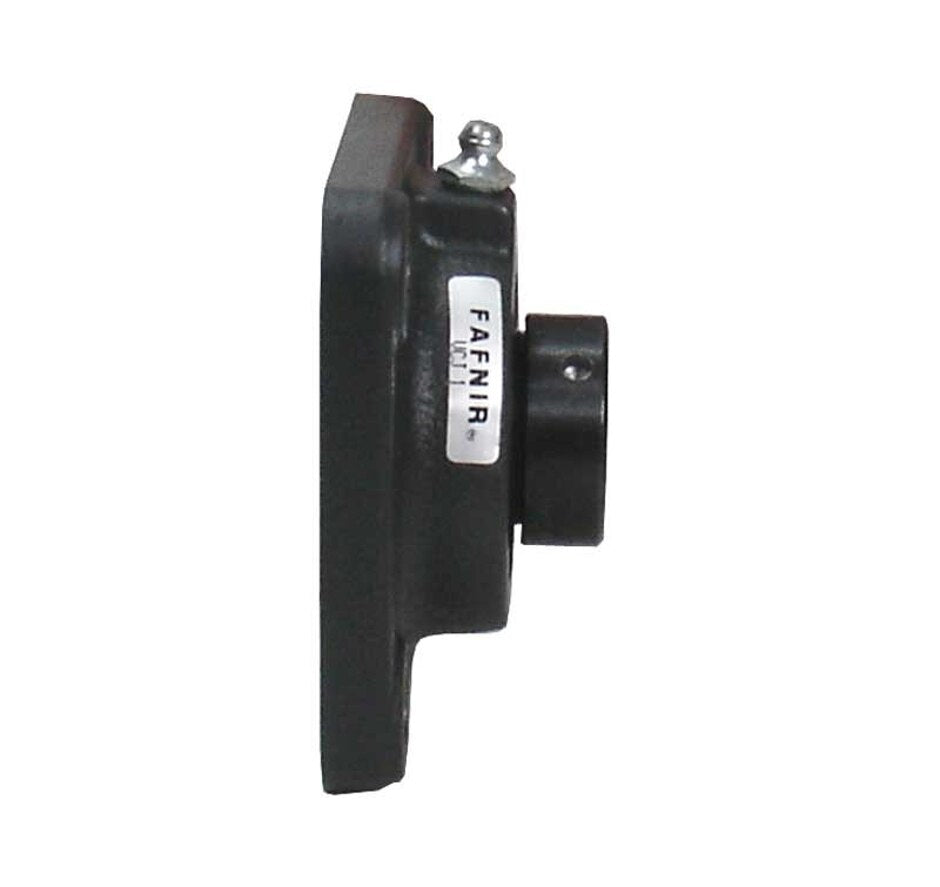

Rheem 70-40805-02 Flange Mount Bearing

Product Description

The Rheem 70-40805-02 is a flange mount bearing suitable for blower applications. This unit features a four-bolt flange design and an eccentric locking collar to ensure a secure attachment. It provides smooth rotational movement, reducing friction while supporting blower operations. The bearing is designed for easy mounting with bolts.

• Four-bolt flange mounted design
• Eccentric locking collar for secure fitting
• Bore diameter of one inch

Product Highlights

This bearing is essential for effective blower function and durability.

Product Information

Standard Information

• Product Group: Blower Bearings
• Type: Four-Bolt Flange Mounted Unit with Eccentric Locking Collar

Technical Specifications

• Width Including Locking Collar: 1.84 inches
• Bore Diameter: 1 inch
• Packaging Height: 3.70 inches
• Packaging Length: 5.30 inches
• Packaging Width: 5.20 inches
• Shipping Weight Actual: 1.89 pounds
• Shipping Weight Dimensional: 1.89 pounds
• Bearing Outer Race Diameter: 2.05 inches
• Bearing Outer Race Width: 0.59 inches
• Mounting Bolt Size: 7/16 inches
