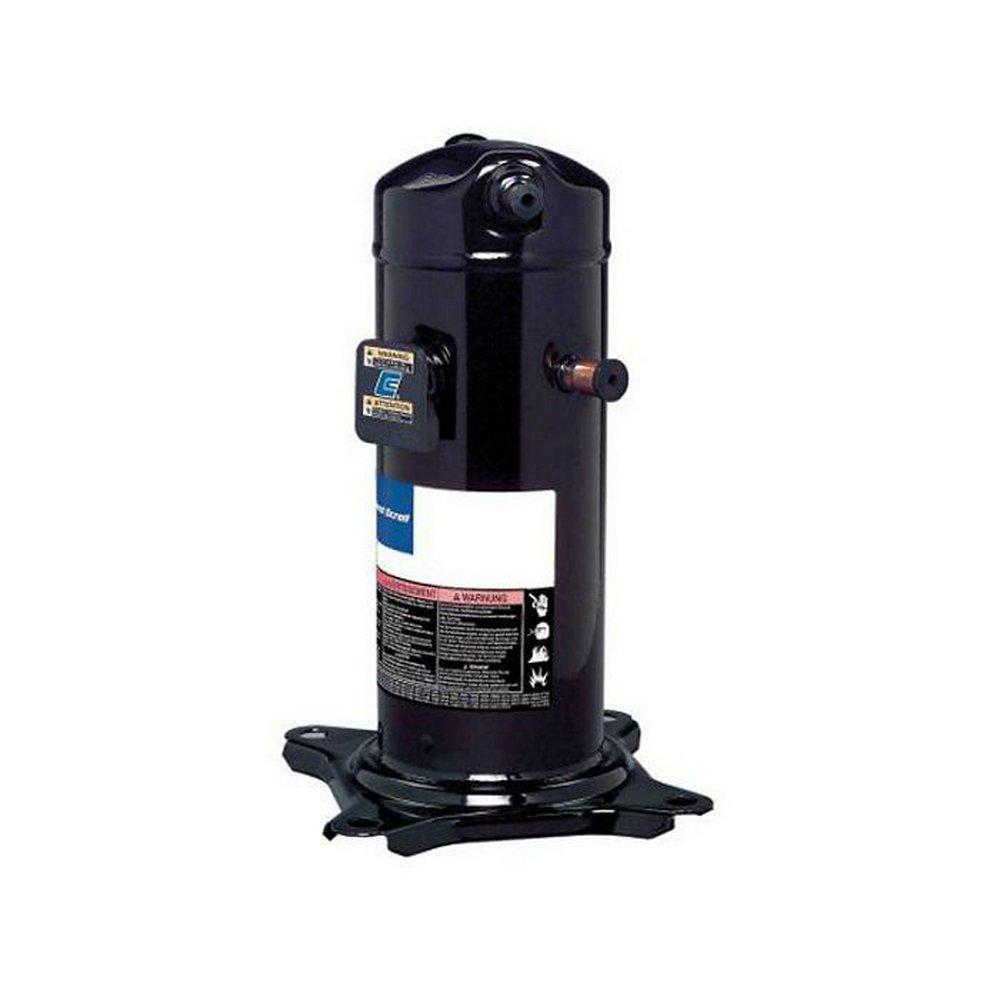

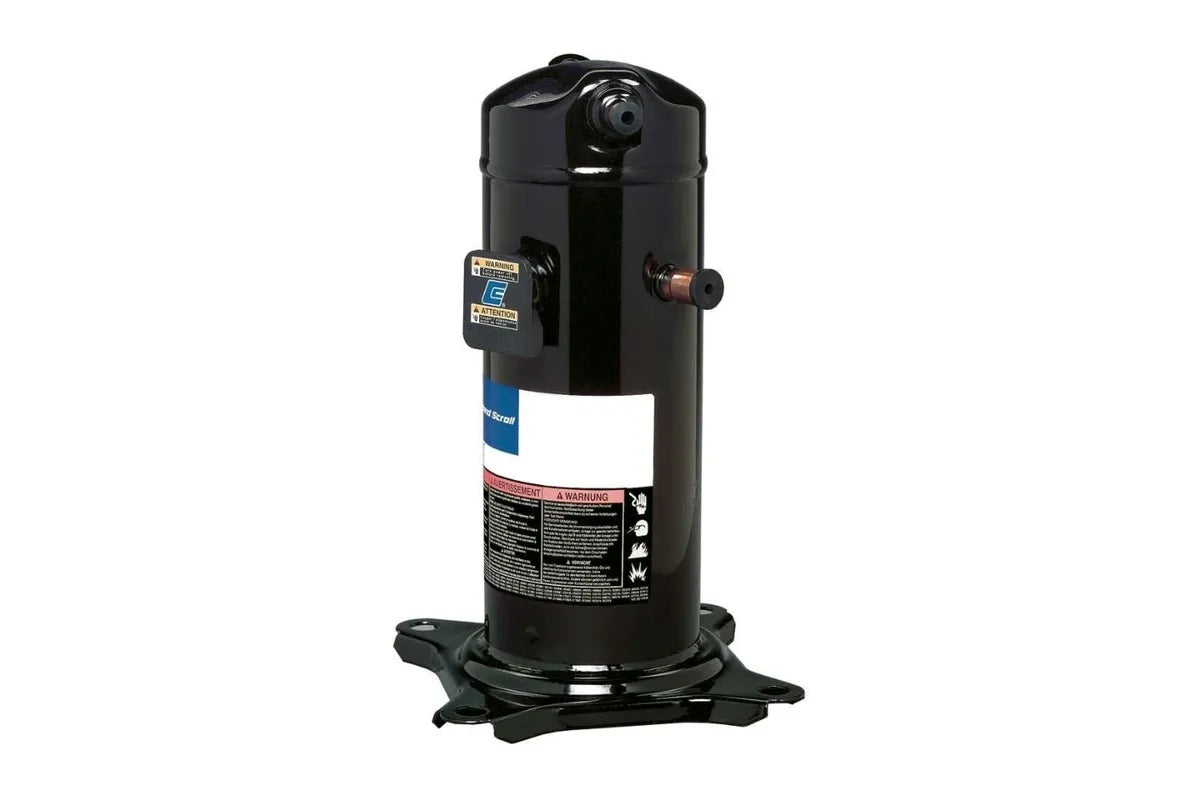

RHEEM 55-102045-150 OEM Replacement Scroll Compressor

Product Description

The Rheem 55-102045-150 is an OEM replacement scroll compressor suitable for both cooling and heating systems. This hermetic compressor operates efficiently with Polyolester (POE) oil and is compatible with R410a refrigerant. It features external protection for enhanced durability and includes stub-type suction and discharge line fittings for easy installation.

• UL Recognized with ASRAE ARI standards
• Designed for reliable performance in various HVAC applications
• Compact size with dimensions of ten inches by ten inches by sixteen inches

Product Highlights

The Rheem 55-102045-150 compressor offers robust performance with a displacement of 2.34 cubic inches per revolution. It is also suitable for use in variable BTU/hr applications.

Product Information

Standard Information

• Brand: Rheem
• Country of Origin: USA

Technical Specifications

• MPN: 55-102045-150
• Compressor Type: Scroll
• Compressor Housing: Hermetic
• Amps: 18.1
• Voltage: 220/240 VAC
• Phase: Three
• Refrigerant Type: R410a
• Oil Type: Polyolester (POE)
• Oil Charge Initial (oz.): 40 Oz.
• Suction Line Size: 3/4 Inch
• Discharge Connection Size (OD): 1/2 Inch
• Weight: 43.5
• Height: 16
• Width: 10
• Length: 10
• Mounting Type: 7-1/2 Inch x 7-1/2 Inch Base Mount
• Application: Scroll Compressor
