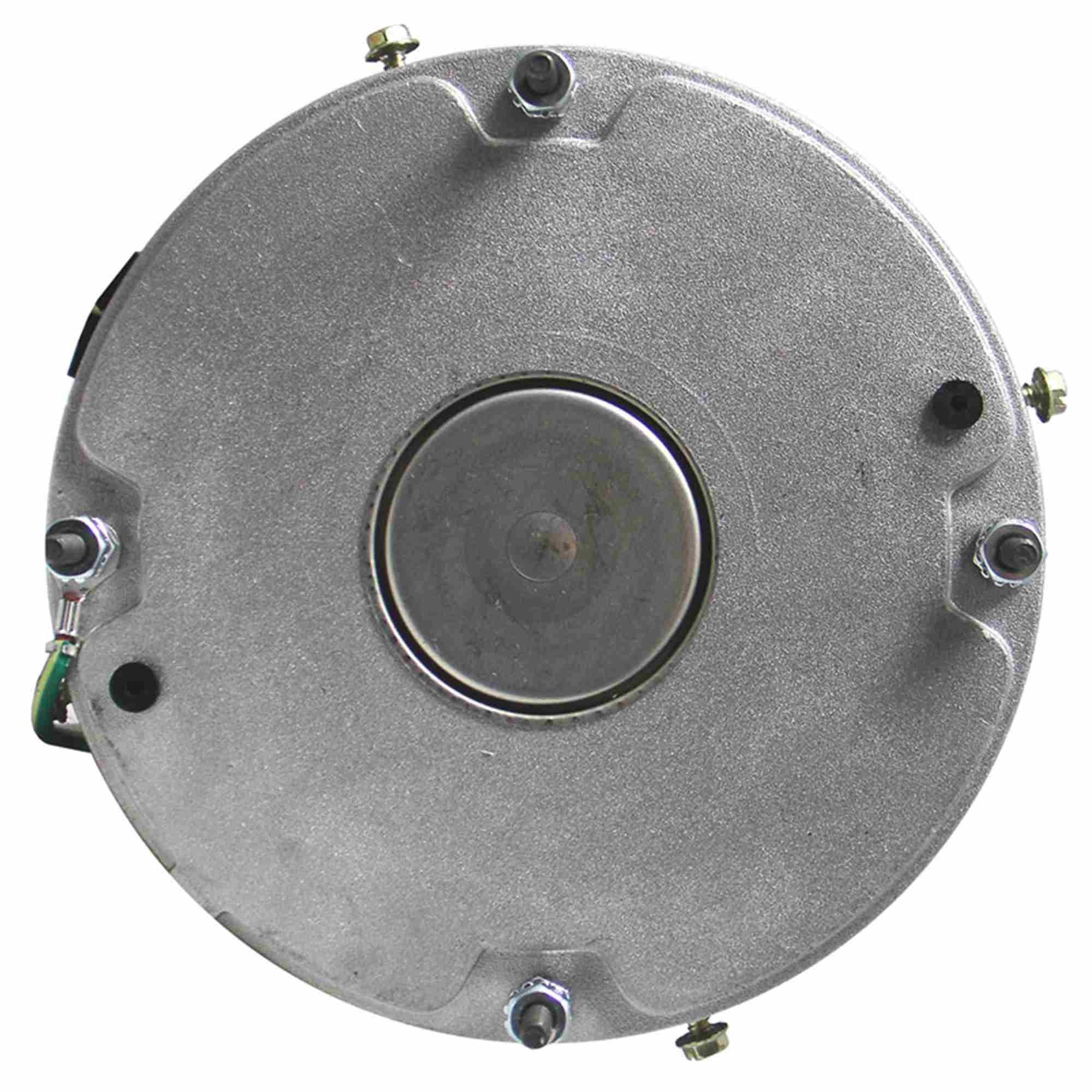

Rheem 51-23053-13 Condenser Fan Motor

Product Description

The Rheem 51-23053-13 is a condenser fan motor suitable for condenser applications. This motor requires an input voltage of two hundred eight to two hundred thirty volts and functions at a frequency of sixty Hertz. With a horsepower rating of one-third, it operates at a speed of one thousand seventy-five revolutions per minute. The motor allows for reversible rotation, enabling flexibility in installation and use. Its design supports direct drive AC capacitor operation.

• Operates at 208-230V
• Rated at 1/3 HP with 1075 RPM
• Reversible rotation for versatile applications

Product Highlights

This motor is designed for direct drive applications, making it a reliable choice for HVAC professionals.

Product Information

Standard Information

• Application: Condenser
• Horsepower: 1/3

Technical Specifications

• Input Voltage: 208-230
• RPM: 1075
• Phases: 1
• Frequency: 60 Hz
• Rotation Direction: Reversible
• Bearing Type: Sleeve
• Drive Type: Direct Drive AC Capacitor
• Run Capacitor: 5/370 (230V), 7.5/370 (208V)
• FLA at 230V: 2.60
• Shaft Diameter: 1/2
• Motor Body Diameter: 3-1/4
• Overall Shaft Length: 3-3/4
• Motor Body Length: 4-5/8
• Overall Motor Length: 5-5/8
• Keyed/Flat Shaft Length: 8-3/8
• Mounting Types: Shell-band, Thru-bolt, Shell-screw
• Frame Size: 48
