Rheem 51-106545-37 Motor SelecTech Gen 3 1/2 hp Replacement 51-104359-01

Product Description

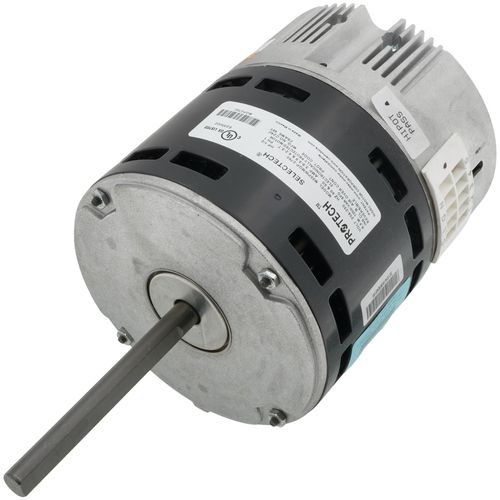

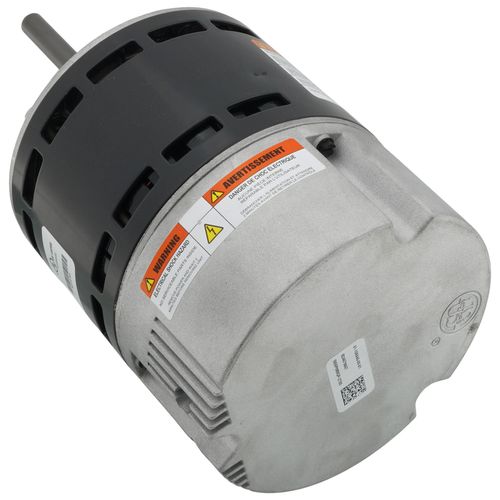

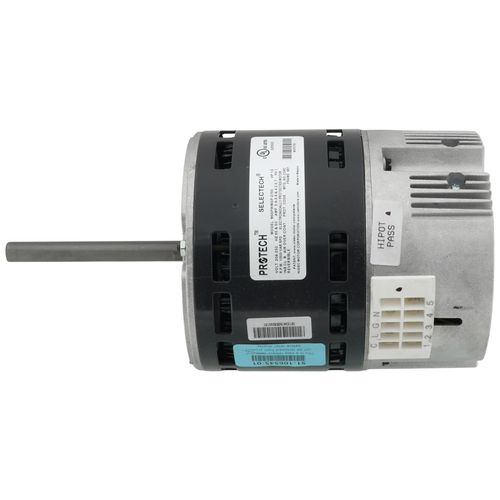

The Rheem 51-106545-37 is a SelecTech Gen 3 motor specifically made for Rheem HVAC systems. It supports a voltage range of 208 to 230 V and provides 1/2 horsepower. This motor is a direct drive type, featuring a 1/2 inch shaft diameter and equipped with ball bearings for smoother operation.

• Replaces part number 51-104359-01
• 1/2 hp motor suitable for HVAC applications
• Direct drive with ball bearings

Product Highlights

This motor ensures reliable performance in cooling and heating systems.

Product Information

Standard Information

• Item Name: Motor
• Type: SelecTech Gen 3

Technical Specifications

• Voltage Rating: 208 - 230 V
• Horse Power: 1/2 hp
• Phase: 1 ph
• Shaft Diameter: 1/2 in
• Mounting: Shell Band
• Shaft Length: 4-1/2 in
• Motor Body Diameter: 5-39/64 in
• Frame: 48Y
• Drive Type: Direct
• Bearing Type: Ball
• Number of Speed: Variable
• Overall Length: 11-13/16 in
• Frequency Rating: 60 Hz
