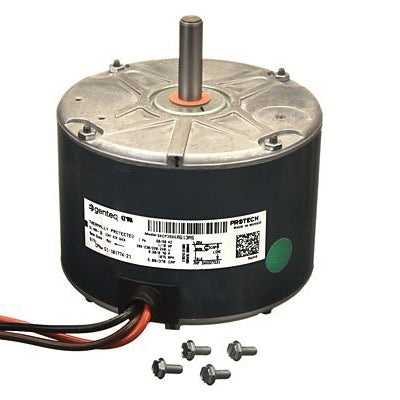

Rheem 51-101774-21 1/10hp 208-230v1ph 1075RPM Motor

Product Description

The Rheem 51-101774-21 1/10hp 208-230V single-phase motor is a reliable choice for industrial and commercial applications. This motor is lightweight and compact, making it ideal for space-constrained installations. Delivering 1/10 horsepower at 1075 RPM, the motor is compatible with most standard electrical systems.

• Suitable for various applications
• High build quality
• Reliable performance

Product Highlights

This Rheem-Ruud motor is designed for efficiency and longevity. It operates on 208-230V AC and is single-phase. The motor's design ensures it can withstand demanding operating conditions, making it a dependable component in many HVAC systems.

Product Information

Standard Information

• Brand: Rheem-Ruud
• MPN: 51-101774-21

Technical Specifications

• Horse Power: 1/10 HP
• Voltage Rating: 208 to 230V
• Phase: 1-Phase
• RPM: 1075 rpm
• No Load RPM: 1075 rpm
• Shaft Diameter: 1/2 inch
• Shaft Length: 1-3/4 inch
• Overall Length: 14.8 inch
• Amperage Rating: 0.6A Full Load at 230V
• Bearing Type: Sleeve
• Frequency Rating: 50/60 Hz
• Rotation: CCW
• Capacitor: 5/370 uF/V
