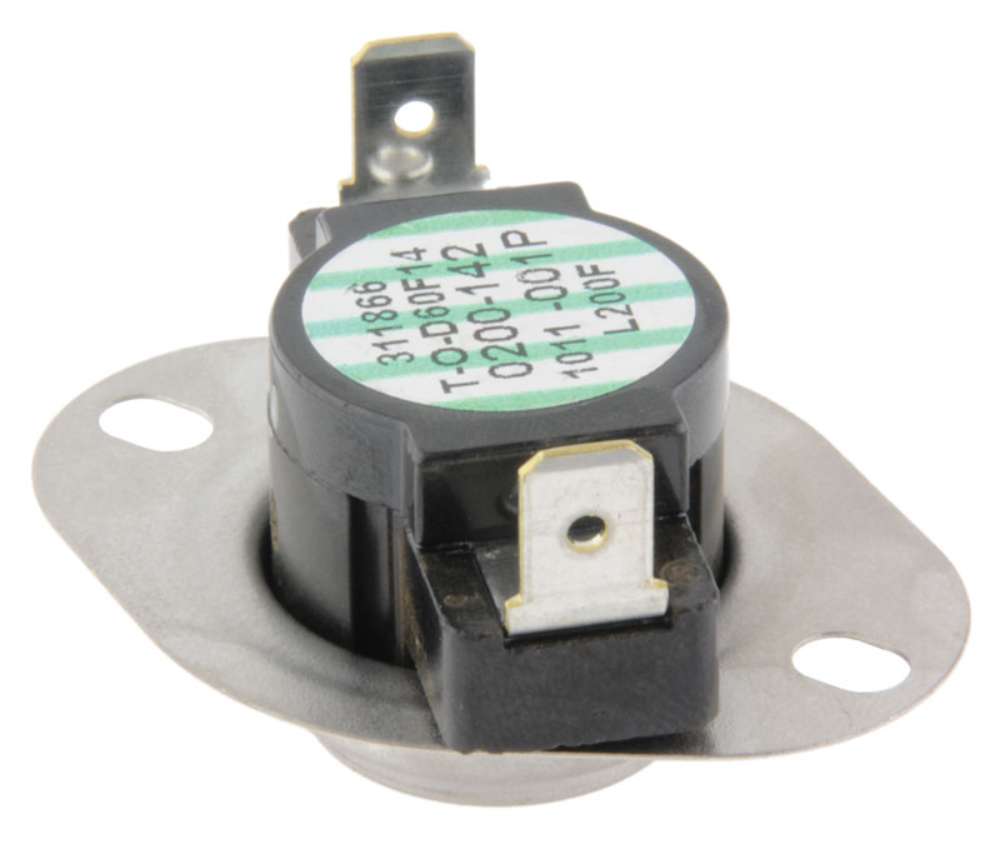

Rheem 470034 Non-Resettable Limit Switch

Product Description

The Rheem 470034 is a non-resettable limit switch suitable for various general-purpose applications. This device operates as a single pole, single throw (SPST) switch with flanged airstream mounting, ensuring reliable performance. It utilizes 1/4 inch quick connect terminals for easy installation. The switch is normally closed and opens at a temperature of 200 degrees Fahrenheit. It is designed to be mounted with a maximum insertion depth of three eighths of an inch.

• Non-resettable functionality.
• Quick connect terminals for easy setup.
• Flanged airstream mounting feature.

Product Highlights

This limit switch is essential for applications requiring accurate temperature regulation. Its exposure type disc face and normally closed contact orientation enhance its usability in various settings.

Product Information

Standard Information

• Brand: Rheem
• MPN: 470034

Technical Specifications

• Product Type: Limit Switch
• Category: General Purpose
• Connections: 1/4 in. Quick Connects
• Contact Orientation: Normally Closed
• Maximum Current Rating (A): 25
• Maximum Voltage Rating (VAC): 575
• Mounting Insertion Depth - Maximum (in.): 3/8
• Open Temperature (F): 200
• Reset Mode: Non-Resettable
• Switch Type: SPST
