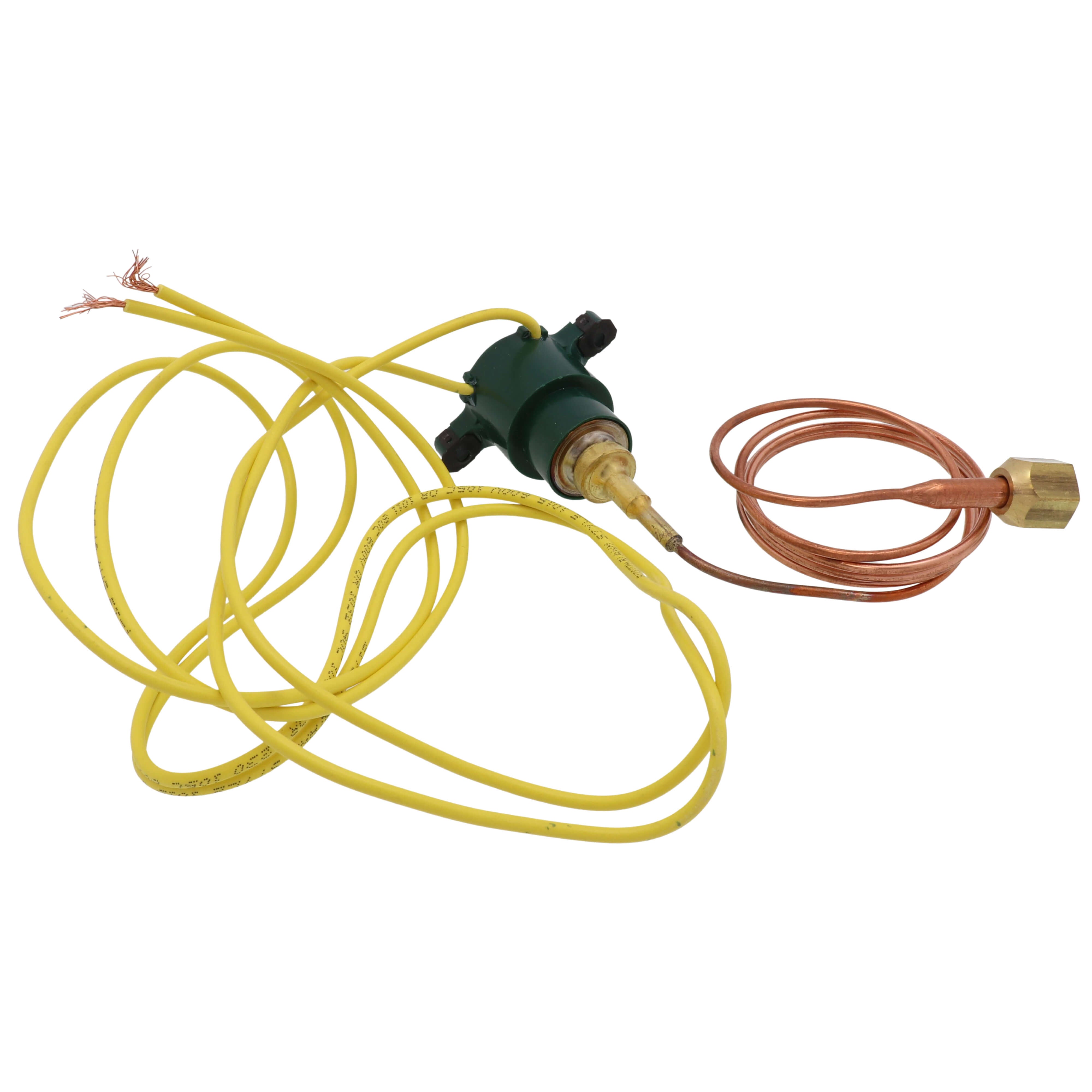

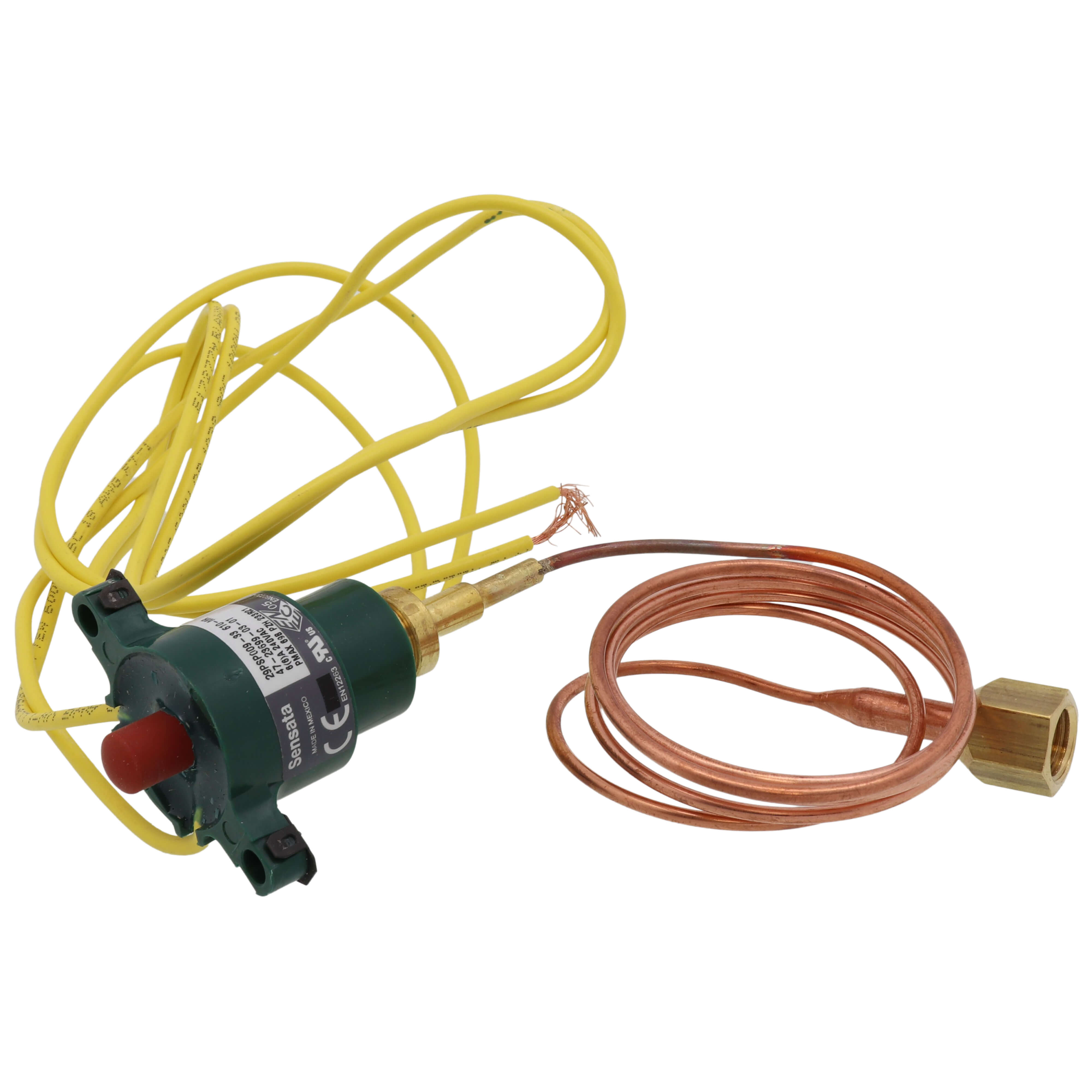

Rheem 47-23699-03 High Pressure M/R Switch 610#

Product Description

The Rheem 47-23699-03 is a high-pressure M/R switch used in HVAC systems for both residential and commercial applications. This switch is built to withstand tough conditions and provide reliable performance. It is compatible with various Rheem heating and cooling equipment, helping technicians effectively manage system maintenance and repairs.

• Designed for high-pressure applications
• Auto-reset function for safety
• Compatible with Rheem HVAC systems

Product Highlights

This M/R switch ensures optimal performance and safety in HVAC systems, making it a crucial component for effective temperature control.

Product Information

Standard Information

• Brand: Rheem-Ruud
• Item Number: 47-23699-03

Technical Specifications

• Type: High Pressure Limit
• Reset: Auto
• Open Pressure: 610 psig
• Tolerance Open Pressure: +/- 15 psig
• Close Pressure: 420 psig
• Tolerance Close Pressure: +/- 15 psig
• Refrigerant Connection Type: Sweat
• Refrigerant Connection Size: 3/32 inches

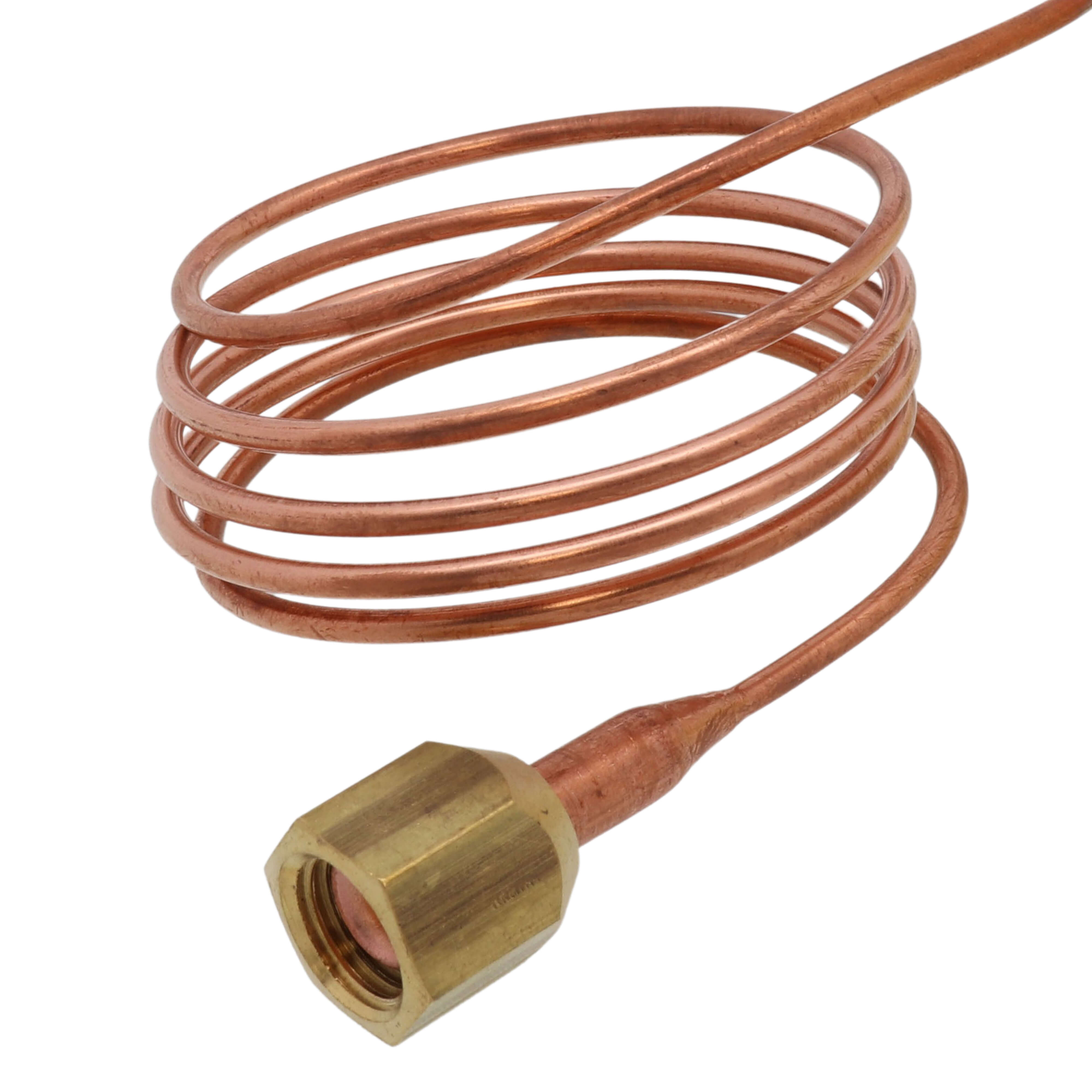

• Capillary Tube Included: Yes
• Capillary Tube Length: 36 inches
• Wire Size: 18 AWG
• Wire Length: 36 inches
• Motor Full Load Current at 120VAC: 5.8 A
• Motor Locked Rotor Current at 120VAC: 34.8 A
• Pilot Duty Rating at 24VAC: 125 VA
• Pilot Duty Rating at 120VAC: 375 VA
• Pilot Duty Rating at 277VAC: 375 VA
• Proof Test Pressure: 1000 psig
• Burst Test Pressure: 5000 psig
