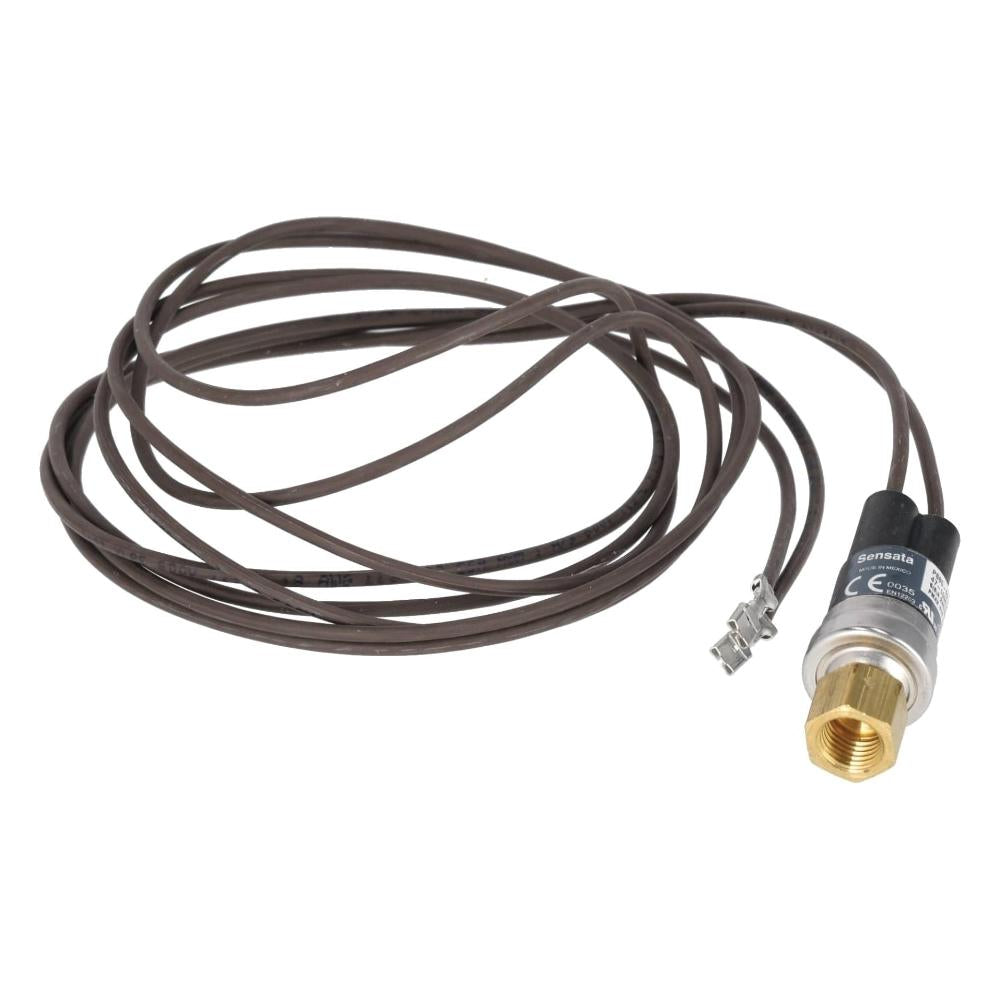

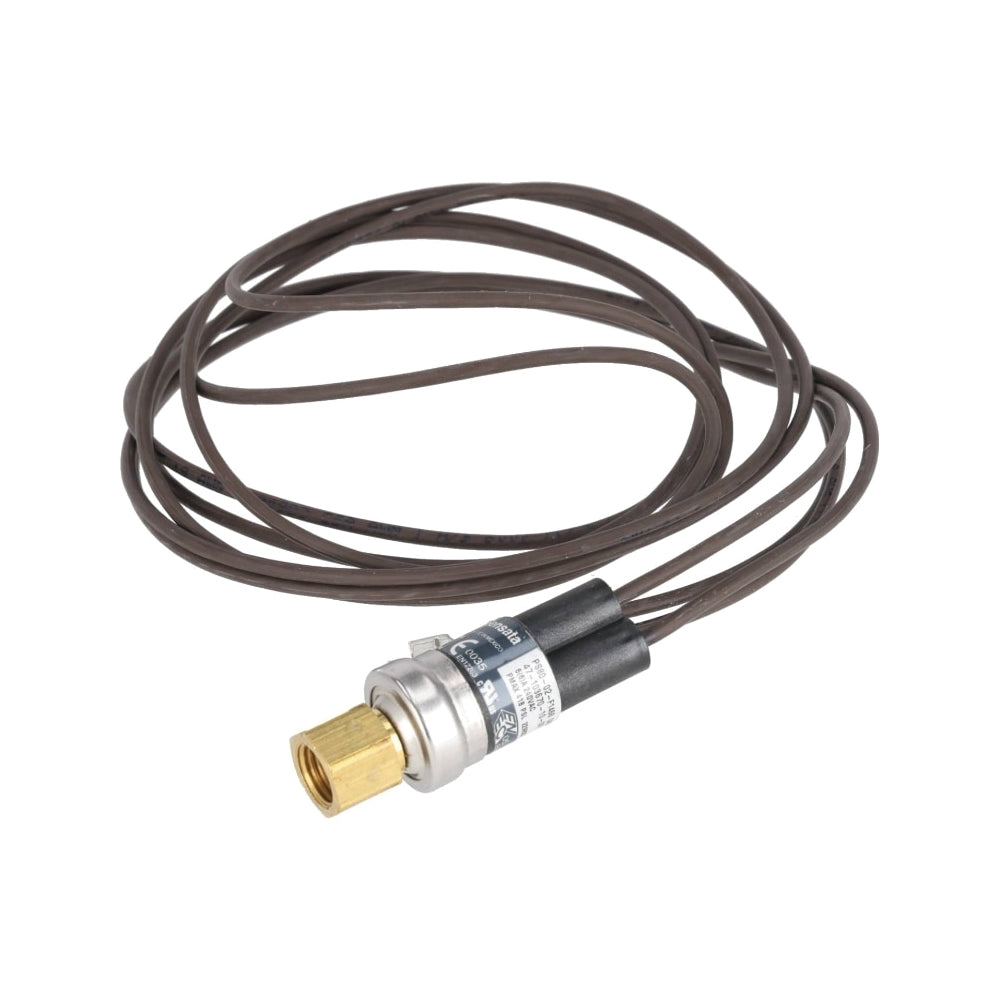

Rheem 47-103670-10 Low Pressure Limit Switch 120230 V 6/36 A

Product Description

The Rheem Low Pressure Limit Switch, MPN 47-103670-10, operates at a voltage of 120/230 V and an amperage rating of 6/36 A. It is designed with a flared connection and is suitable for various HVAC applications. This switch features a set point range from fifteen to forty psig and has a lead length of sixty inches for installation flexibility.

• Auto-reset functionality
• Single pole, single throw design
• Environmentally sealed leads for durability

Product Highlights

The switch is engineered for reliability with a proven track record in HVAC settings.

Product Information

Standard Information

• Brand: Rheem
• MPN: 47-103670-10

Technical Specifications

• Amperage Rating: 6/36 A
• Voltage Rating: 120/230 V
• Connection Type: Flared
• Lead Length: 60 inches
• Number of Poles: 1
• Pilot Duty Rating: 125 VA, 375 VA
• Pressure Rating: 15 to 40 psig
• Wire Size: 18 AWG
• Additional Information: Auto-Reset, 600 psig Proof Test Pressure, 3000 Burst Pressure
