Rheem 47-102738-156 Model Data Memory Card Heat Pump

Product Description

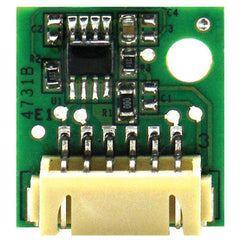

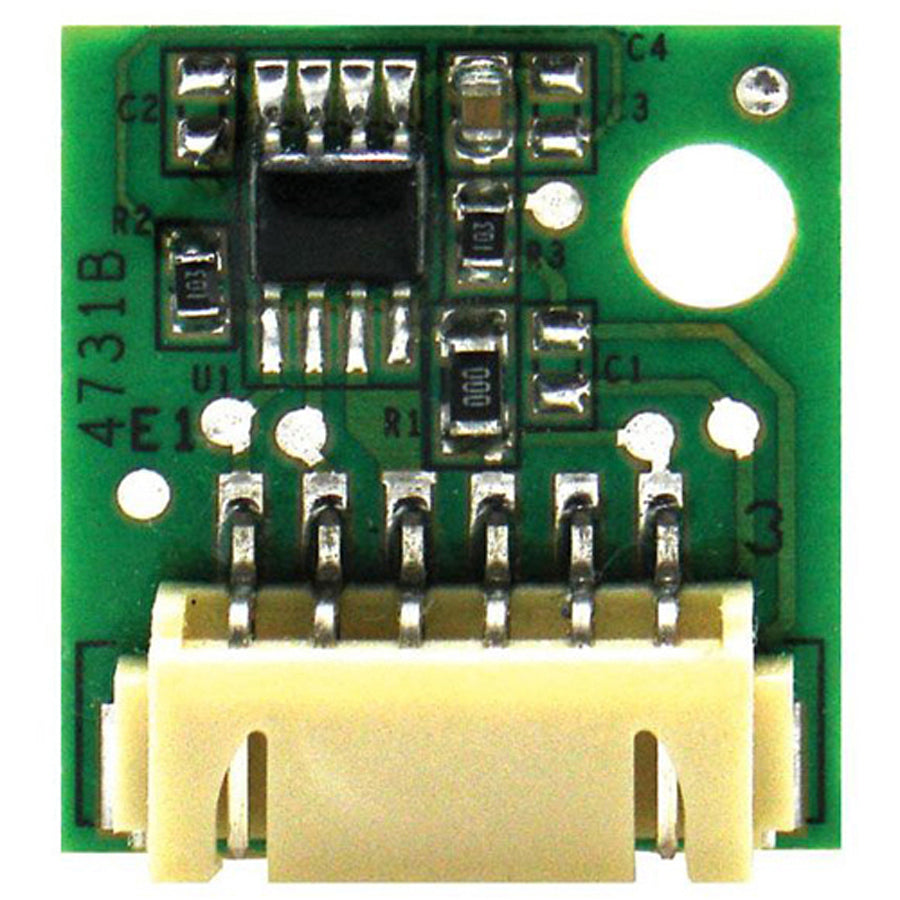

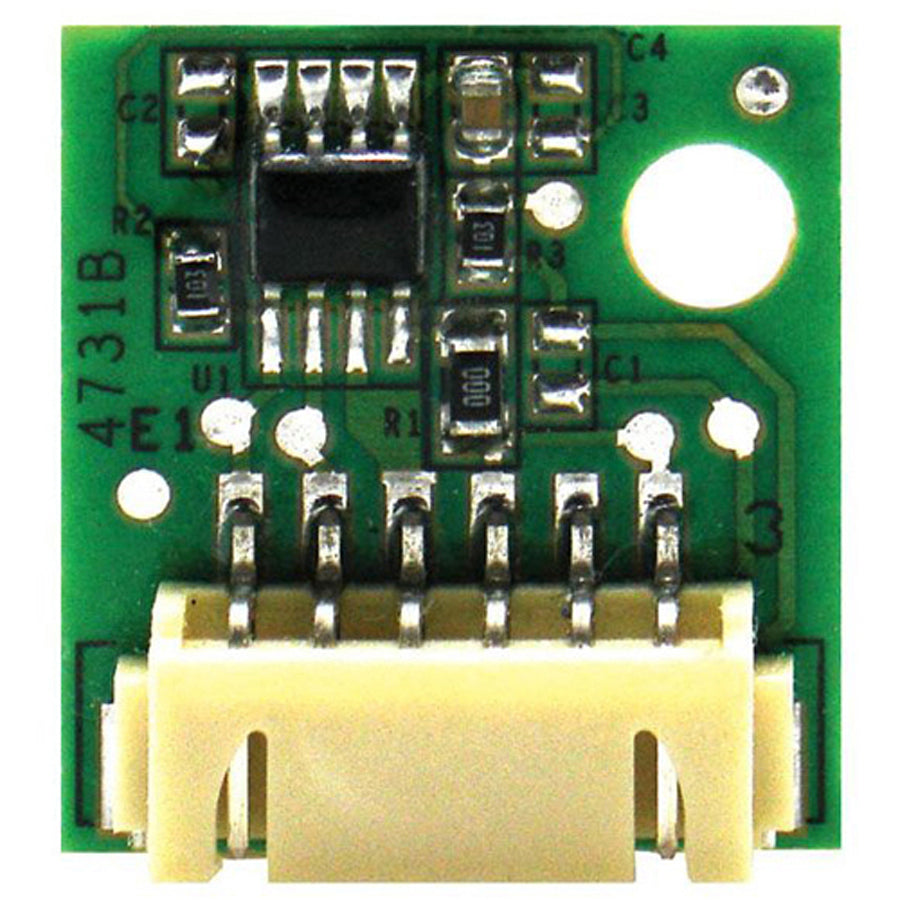

The RHEEM 47-102738-156 is a model data memory card (EEPROM) designed for use in Rheem heat pump systems. This card stores unit-specific configuration and model data that the system control board reads during operation. Without accurate model data, the control system cannot properly manage operating parameters, staging, or diagnostics. The card measures 5.3 inches in length, 3.1 inches in width, and 2.0 inches in height, and weighs 0.2 pounds. HVAC technicians handling control system replacements or board swaps will need this card to restore proper system identity and function.

This memory card is used on the RP17 series Rheem heat pump. It is applicable in residential heat pump installations where control board replacement or memory card failure has occurred. When a control board is replaced and the original card is damaged or missing, installing the correct model data card ensures the unit runs with the factory-programmed configuration specific to that equipment series.

Key Features

• Stores unit-specific model and configuration data for heat pump control systems
• Direct OEM replacement for the RP17 series heat pump
• Compact form factor: 5.3 x 3.1 x 2.0 inches
• Lightweight at 0.2 pounds for easy handling during service
• Required for proper control board operation after board replacement or card failure

Compatibility

Designed for use on the Rheem RP17 series heat pump.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect power to the unit at the disconnect box before handling any control board components or memory cards. Handle the EEPROM card carefully to avoid damage from static discharge. Refer to the equipment service manual for the correct card slot location and seating procedure on the control board.

Technical Specifications

• Item Type: Model Data Memory Card
• Used On: Heat Pump
• Compatible Series: RP17
• Length: 5.3 inches
• Width: 3.1 inches
• Height: 2.0 inches
• Weight: 0.2 pounds

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 47-102738-156
