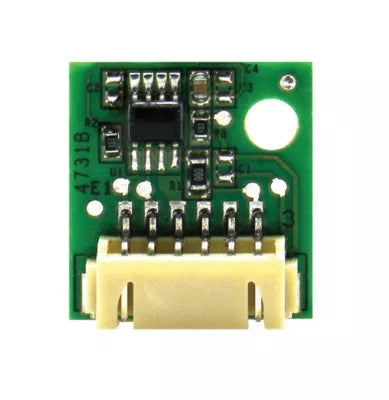

Rheem 47-102738-136 Model Data Memory Card

Product Description

The RHEEM 47-102738-136 is a model data memory card designed to store unit-specific configuration data for compatible RHEEM equipment. This card holds the programmed parameters the control board references during operation, ensuring the system runs according to the factory specifications for that particular model. HVAC technicians install this card as part of control board service or replacement procedures on supported equipment. Without the correct model data card seated in the control board, the unit may not operate properly or may default to incorrect operating parameters.

This memory card is used in residential HVAC applications where the control system requires model-specific data to be loaded at the board level. It is intended for field installation by licensed HVAC technicians during service calls involving control board replacement or data card failure. The card seats directly into the designated slot on the compatible control board and does not require tools to install. Keeping the correct model data card with the unit record is a best practice when servicing equipment covered under this configuration.

Key Features

• Stores factory-programmed model configuration data for supported RHEEM equipment
• Plug-in card design seats directly into the control board card slot
• Ensures the control board operates with the correct unit-specific parameters
• Sold as a single unit for direct field replacement

Compatibility

Designed for use with the RHEEM model RP2048BJVCA. Verify the model data card part number against the unit nameplate and service documentation before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect power to the unit at the disconnect switch and verify the circuit is de-energized before handling any control board components. Handle the memory card carefully to avoid damage to the card contacts or the board slot. Refer to the unit service manual for card seating orientation and control board access procedures.

Technical Specifications

• Unit of Measure: Each

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 47-102738-136
