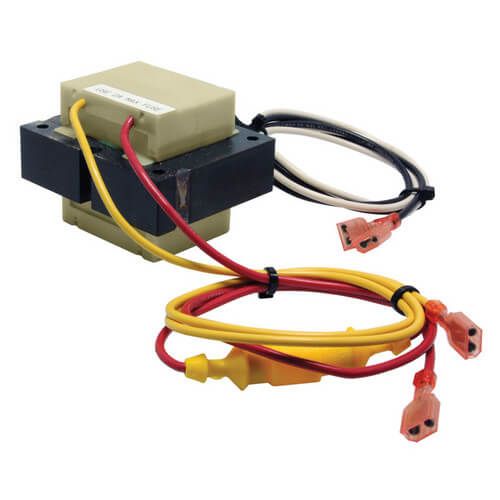

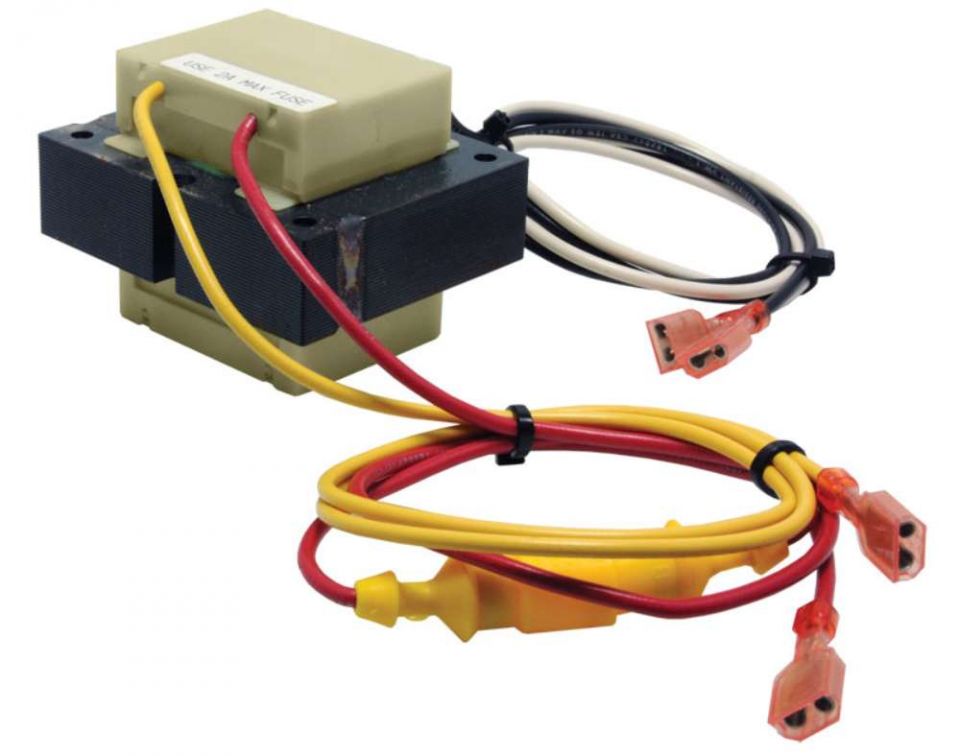

Rheem 46-22863-05 Transformer

Product Description

The Rheem 46-22863-05 Transformer converts voltage for HVAC systems. This transformer operates at a primary voltage of 230 volts and provides a secondary voltage of twenty-four volts. With a capacity of forty VA, it features electrical connections through leads with one-quarter inch insulated female quick connects.

• Overcurrent protection with a 2A external fuse
• Class 2 power limiting feature
• OEM design for proper compatibility

Product Highlights

The Rheem 46-22863-05 Transformer is essential for systems requiring voltage conversion and includes secure connections.

Product Information

Standard Information

• Brand: Rheem
• MPN: 46-22863-05

Technical Specifications

• Product Type: Transformer
• Capacity (VA): 40
• Electrical Connections: Leads with 1/4 in. insulated female quick connects
• Mounting Hole Spacing (in.): 2-3/16 x 1-3/4
• Frequency (Hz): 50 | 60
• Mounting: OEM
• Overcurrent Protection: 2A External Fuse
• Power Limiting: Class 2
• Primary Voltage (V): 230
• Secondary Voltage (V): 24
