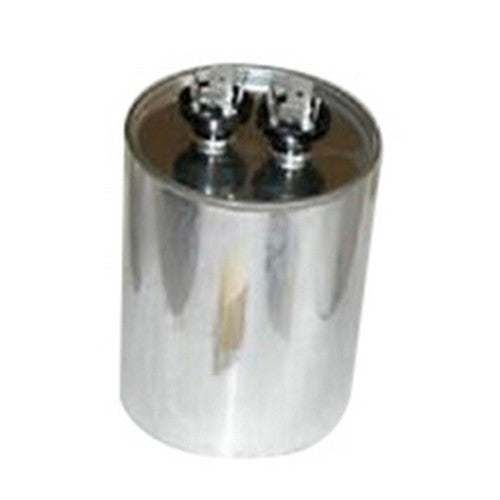

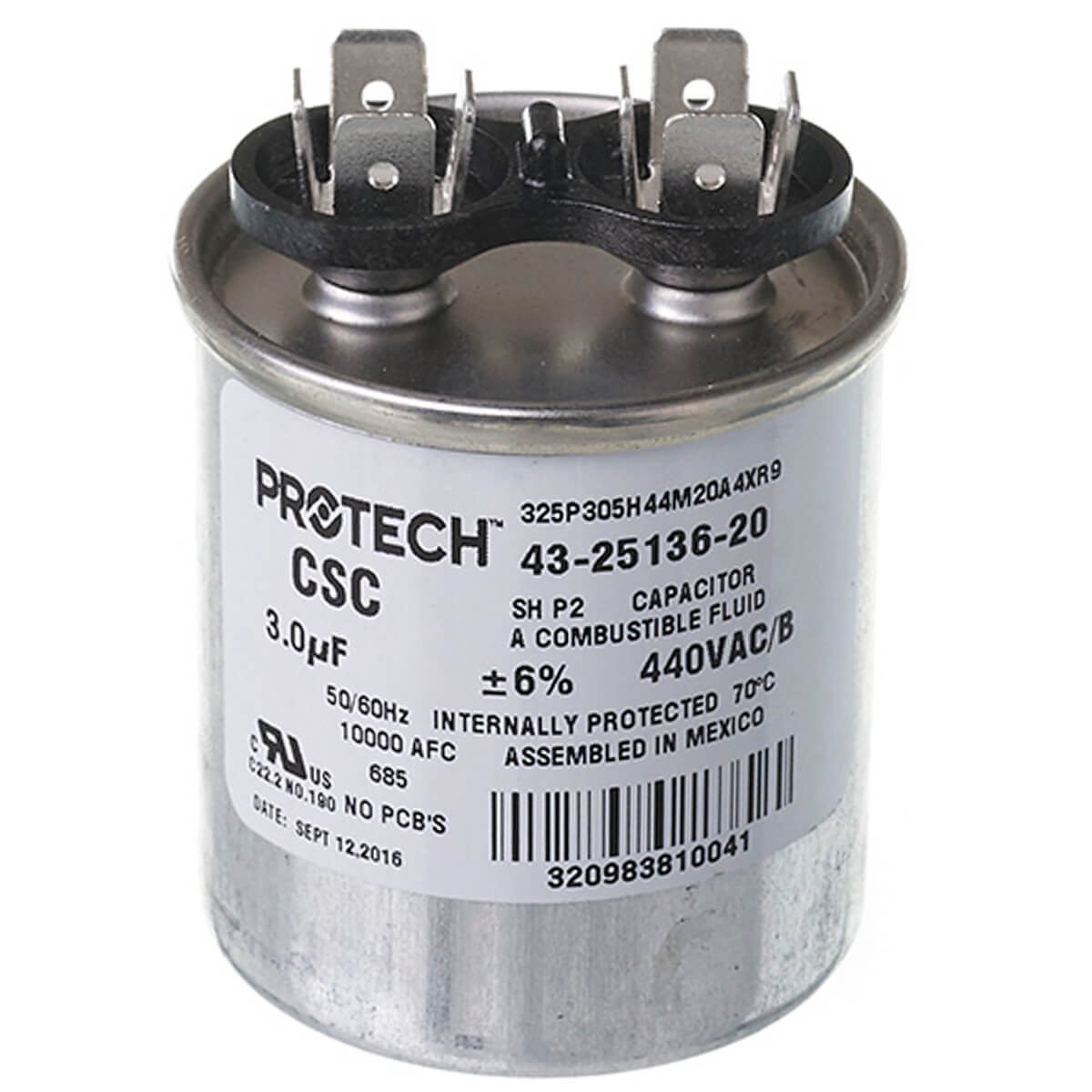

Rheem 43-25136-20 Protech Single Round Run Capacitor 3 MFD 440VAC

Product Description

The Rheem 43-25136-20 is a single round run capacitor designed for HVAC applications with a capacitance rating of three microfarads and a voltage rating of four hundred forty volts. This capacitor features a one-quarter inch quick connect terminal for easy installation. With dimensions of one point seven seven inches in diameter and two point one seven inches in height, it fits well in various HVAC equipment setups.

• Capacitance Range: 3 MFD
• Voltage Rating: 440VAC
• Shape: Round

Product Highlights

This capacitor is integral for maintaining the efficiency of HVAC systems. It ensures that motors run smoothly and reliably when starting and operating.

Product Information

Standard Information

• Type: Single
• Material: Painted Steel or Unpainted Aluminum

Technical Specifications

• Capacitance Range: 3 MFD
• Voltage Rating: 440VAC
• Overall Height: 2.170 inches
• Outside Diameter: 1.770 inches
• Terminal Connection: 1/4 inch Quick Connect
• Item Type: Capacitors
