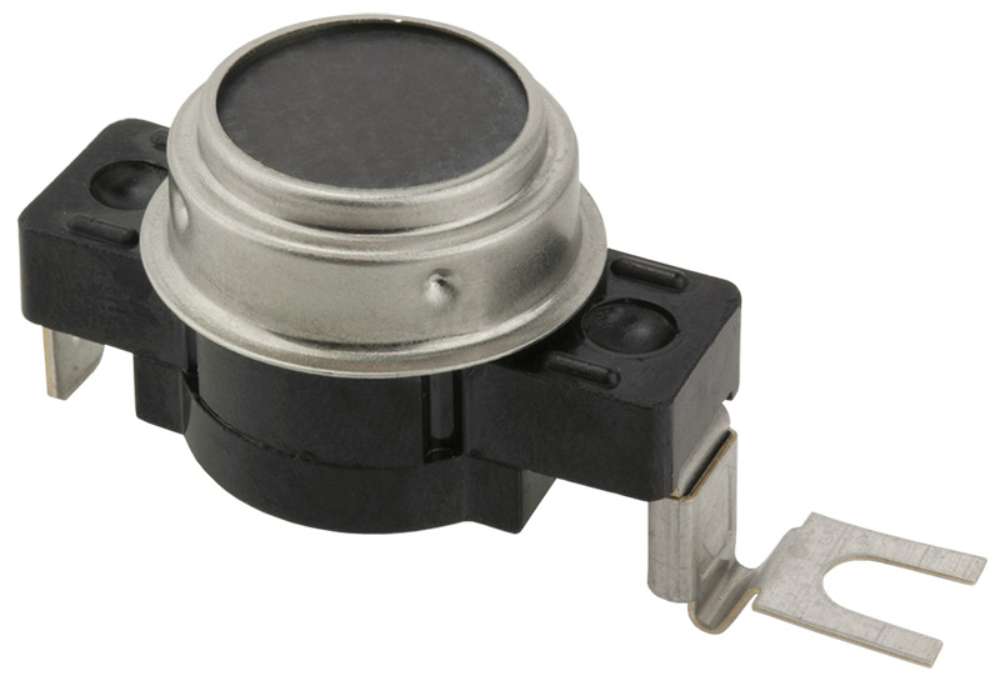

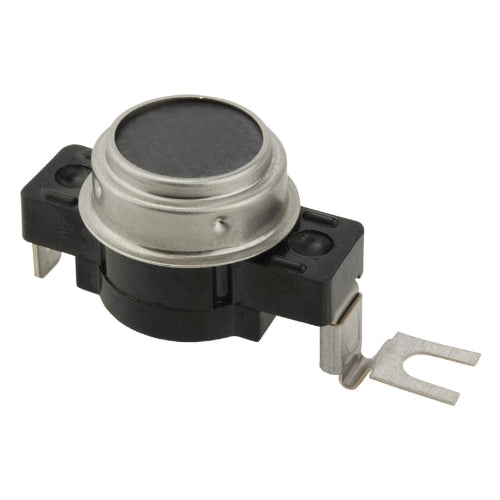

RHEEM 425071 Limit Switch - Auto Reset

Product Description

The Rheem 425071 is a limit switch with auto reset functionality. It is designed for use in flangeless airstream mounting applications. This switch features a single pole, single throw (SPST) contact configuration that is normally closed. It opens at one hundred sixty-five degrees Fahrenheit and closes at one hundred twenty-five degrees Fahrenheit. Electrical connections can be made using one-fourth inch quick-connect or screw slot.

• Auto reset functionality
• Normally closed (NC) contact orientation
• Flangeless airstream mounting

Product Highlights

This Rheem limit switch is suitable for HVAC systems where temperature regulation is essential. Its automatic reset capability reduces downtime and maintenance needs.

Product Information

Standard Information

• Brand: Rheem
• MPN: 425071

Technical Specifications

• Product Type: Limit Switch
• Voltage Rating: 230 V
• Amperage Rating: 25 A
• Contact Configuration: NC, SPST
• Number Of Poles: 1
• Open Temperature (F): 165
• Close Temperature (F): 125
• Nominal Temperature Difference (F): 40
• Reset Mode: Auto

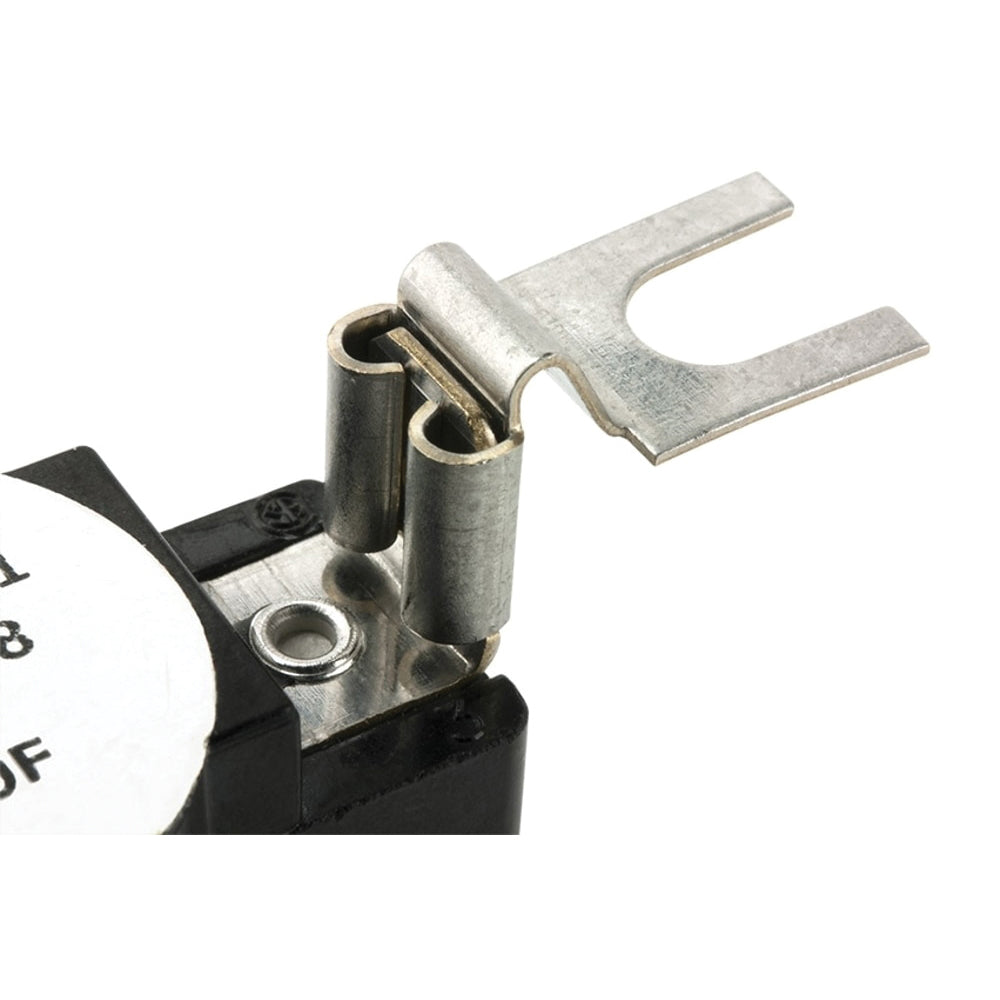

• Connections: 1/4 in. Quick Connect / Screw Slot
• Mounting: Flangeless airstream
• Switch Type: SPST
• Thickness: 3/8 in.
• Maximum Current Rating: 25 A
• Maximum Voltage Rating: 230 VAC
• Packaging Height: 2.1 in.
• Packaging Length: 3.1 in.
• Packaging Width: 2.6 in.
• Gross Weight: 0.2 lb
