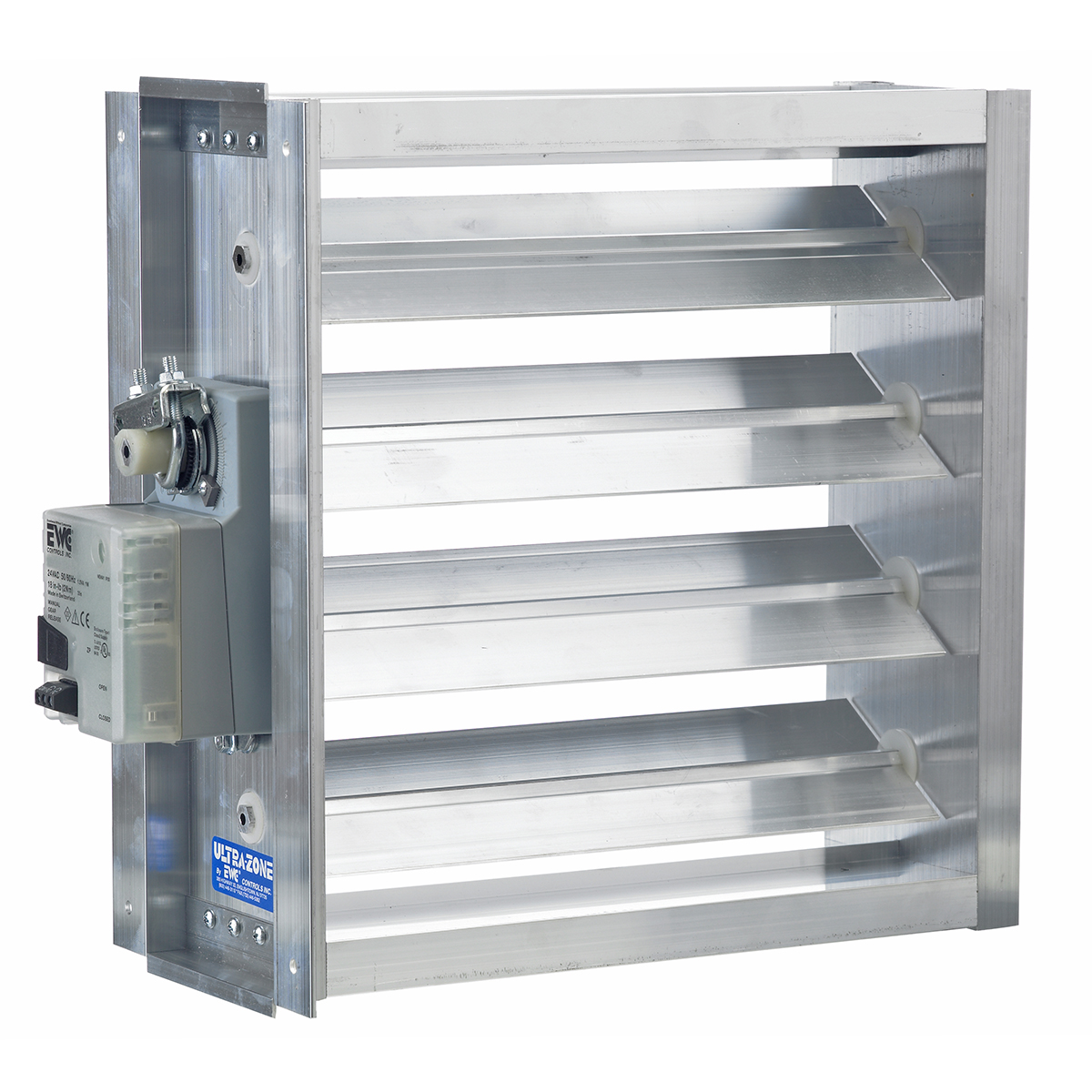

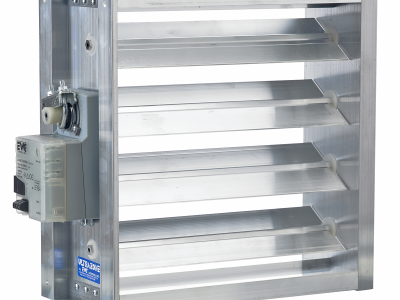

Rheem 20X8ND EWC Zone Damper

Product Description

The Rheem 20X8ND is a zone damper suitable for various HVAC systems. This unit features power open and power close operations to enhance control over airflow in different zones. It is designed with overlapping blades for efficient performance and is intended for installation within ductwork using a side-mount configuration.

• Power open and power close operation.
• Designed for side mounting.
• Utilizes a 3-wire configuration.

Product Highlights

This zone damper is ideal for improving energy efficiency and comfort in HVAC systems.

Product Information

Standard Information

• Brand: Rheem
• Country of Origin: USA

Technical Specifications

• MPN: 20X8ND
• Damper Type: Zone
• Mount: Side Mount
• Size: 20 inches x 8 inches
• Voltage: 24 VAC
• Amps: 1.5
• Weight: 6.8
• Length: 24
• Height: 7
• Width: 14
• Phase: Single
• Cycle/Hertz: 50/60 Hz
• Composition: Aluminum
• Mounting Type: Face plate
• Operating Temperature: -20°F to 160°F (-28.89°C to 71.11°C)
• Approvals: UL Listed; UL Recognized
