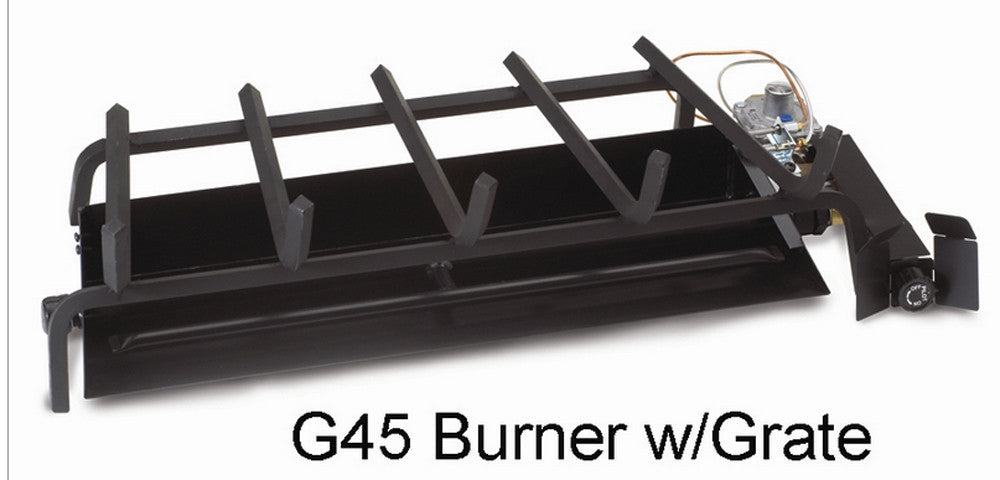

Rh Peterson G45-16/19-11 Triple T Vented Gas Burner Ng

Product Description

The RH PETERSON G45-16/19-11 is a Triple T vented natural gas log burner designed for single-sided indoor fireplaces. The Triple T configuration features a main burner tube running the length of the unit with a smaller front-flame tube that branches off, creating three additional flame ports for added depth and a realistic ember bed. Rated at 40,000 BTU/h on natural gas, this burner operates on a millivolt ignition system and includes the APK-11 on/off safety pilot valve with an RR-1 remote control transmitter and receiver. It is approved for mobile home installations. Licensed gas technicians handle installation in accordance with applicable fuel-gas codes.

This burner is intended for single-sided, vented indoor fireplaces using natural gas. It fits fireplaces with a minimum width of 29 inches, a minimum depth of 22 inches, and a minimum height of 11 inches. The G45-16/19-11 is designed to accommodate log sets sized 16 inches or 19 inches. The included components are a burner pan, grate, glowing embers, sand, burner clips, flex connector kit, and a damper clamp. The APK-11 safety pilot valve and RR-1 on/off remote are included. The log set is sold separately and must be a compatible Real-Fyre gas log set — this burner is not universal.

Key Features

• Triple T burner design with front-flame branch tube for added flame depth and realistic ember glow
• 40,000 BTU/h maximum output on natural gas
• Millivolt ignition system with standing pilot — burner can be operated manually or by remote
• Includes APK-11 on/off safety pilot valve and RR-1 remote control transmitter and receiver
• Compatible with log sets sized 16 inches or 19 inches only — not universal
• Mobile home approved for single-sided indoor vented fireplaces
• Upgradeable to RR-2 Deluxe remote with thermostat, timer, clock, and room temperature display (sold separately)

Compatibility

Designed for use with specific Real-Fyre gas log sets sized 16 inches or 19 inches only. Burners are certified to work with specific log sets — using this burner with a non-compatible log set creates risk of fire, carbon monoxide poisoning, and property damage. Requires a minimum fireplace opening of 29 inches wide, 22 inches deep, and 11 inches tall. Inlet gas pressure must be between 5.0 inches w.c. and 10.5 inches w.c.

Installation Notes

Installation must be performed by a licensed gas technician in accordance with the International Fuel Gas Code (IFGC) and all applicable local codes. Shut off the gas supply completely before making or breaking any gas connections. Use a listed flexible connector and verify all joints for leaks with an approved leak-detection solution before lighting. The damper must be secured in the open position using the included damper clamp when this vented burner is in use.

Technical Specifications

• BTU/h (Max.): 40,000
• Fuel Type: Natural Gas (NG)
• Ignition Type: Millivolt (Remote Ready)
• Venting Type: Vented
• Fireplace Style: Single Sided
• Location of Use: Indoor
• Allowable Log Set Sizes: 16 inches / 19 inches
• Gas Connection Size: 1/2 inch
• Inlet Gas Pressure (Min.): 5.0 inches w.c.
• Inlet Gas Pressure (Max.): 10.5 inches w.c.
• Minimum Fireplace Width: 29 inches
• Minimum Fireplace Depth: 22 inches
• Minimum Fireplace Height: 11 inches
• Mobile Home Approved: Yes
• Remote Included: Yes (RR-1 On/Off)

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-16/19-11
