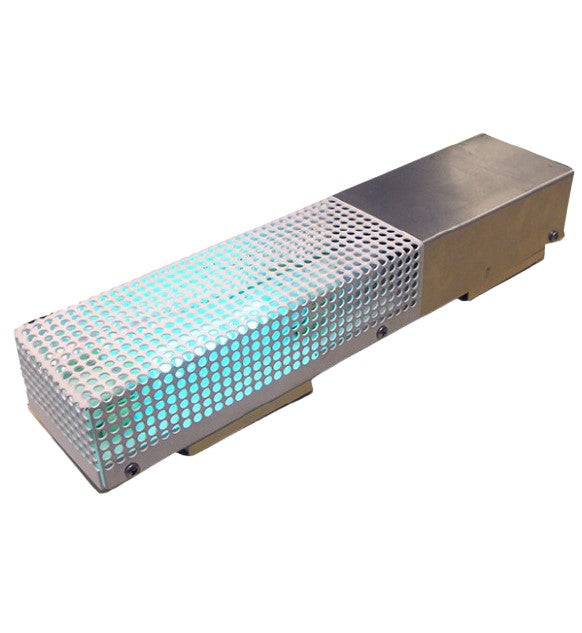

RGF PHIC-9PKG Replacement Package PHI Cell 9 Inch

Product Description

The RGF PHIC-9PKG is a replacement package for the PHI cell designed for use in air purification systems. This system effectively works with HVAC units that have blower sizes ranging from one thousand two hundred to three thousand CFM, or units with a capacity of three point five to seven point five tons. It operates at twenty-four volts AC while consuming eleven watts of power.

• Quick and simple installation
• Active technology targets and reduces viruses, bacteria, mold spores, and odors
• Compatible with existing air conditioning duct systems

Product Highlights

The PHIC-9PKG functions continuously and quietly, enhancing air quality in commercial environments and tackling unpleasant odors. Recommended replacement intervals for the cell are between eighteen thousand and twenty-five thousand hours.

Product Information

Standard Information

• Brand: RGF
• MPN: PHIC-9PKG

Technical Specifications

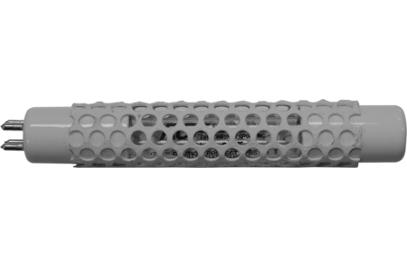

• Lamp Length: 9 inches
• Operating Voltage: 24 Vac
• Power Consumption: 11 W
• AMPS: 0.48 A
• Technology: PHI-CELL® RGF Proprietary Catalyst and UVC Lamp
• HVAC Blower Size: 1,200 to 3,000 CFM
• Tonnage: 3.5 to 7.5 ton
• Recommended Cell Replacement: 18,000 – 25,000 hours

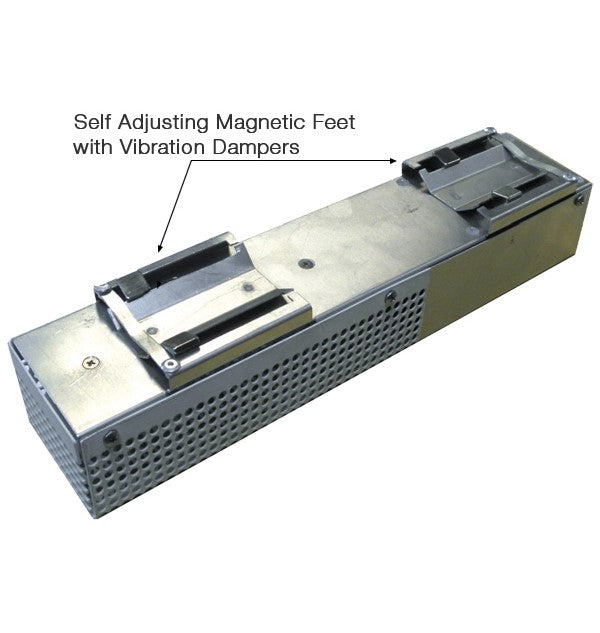

• Installation: Air handler cabinet / magnetic mount
• Material: Aluminum
• Warranty: 2 years ballast / 2 years cell (U.S. only)
• Hydro-Peroxides: <0.02 PPM
