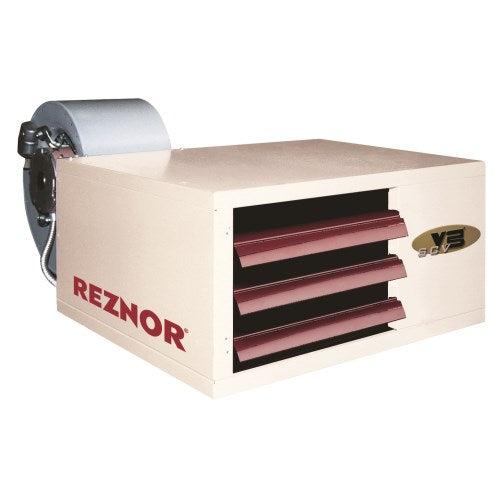

Reznor UDBS350 High Static Gas Fired Unit Heater

Product Description

The Reznor UDBS350 is a gas-fired, high static unit heater suitable for commercial and industrial applications. This unit offers a heating capacity of two hundred ninety-one thousand BTU and features a thermal efficiency of up to eighty-three percent. The heater is designed for horizontal mounting and incorporates a direct vent system, making it efficient and easy to operate.

• Vibration isolated venter motors ensure quiet operation.
• Integrated circuit board with diagnostic indicator lights for easy monitoring.
• External gas connection for straightforward installation.

Product Highlights

This unit heater is ideal for spaces that require effective heating with a large airflow capacity.

Product Information

Standard Information

• Fuel Type: Natural Gas, Liquid Propane
• Vent Type: Direct Vent

Technical Specifications

• Heating Capacity: 291000 BTU
• Maximum Input Capacity: 350000 BTU
• Thermal Efficiency: 83%
• Maximum Air Flow: 5987 CFM
• Minimum Air Flow: 3586 CFM
• Phase: 1
• Gas Connection Size: 3/4 Inch
• Flue Connection Size: 6 Inches
• Product Height: 42 5/8 Inches
• Product Width: 40 7/8 Inches
• Product Depth: 63 7/16 Inches
• Product Weight: 410 Pounds
• Country of Origin: United States
• CSA Listed: Yes
• ANSI Certified: Yes
• Parts Warranty: 5 Years
• Heat Exchanger Warranty: 10 Years
• Heat Exchanger Material: Aluminized Steel, Stainless Steel
• Voltage: 115/1, 208 Volts, 230 Volts
• Frequency: 60 Hz
• Power Consumption (Watts) @ 115 V: 1635
