Reznor rz101901 System Test Switch Rdf

Product Description

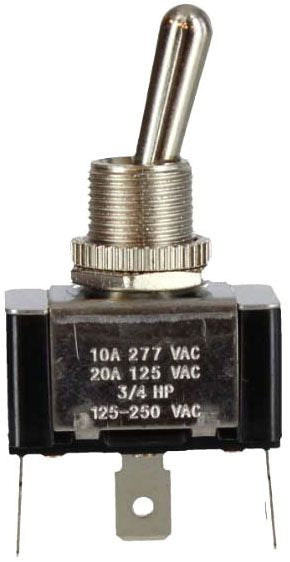

The REZNOR rz101901 is a system test switch designed for use with RDF series heating equipment. This component allows service technicians to initiate and verify system operation during commissioning, troubleshooting, and preventive maintenance procedures. The switch interfaces directly with the RDF system controls, providing a reliable means to confirm burner sequencing, blower operation, and control circuit continuity without requiring the full operational load cycle. Licensed HVAC technicians and commercial heating service professionals typically specify this part when diagnosing RDF unit performance or completing post-repair verification.

The rz101901 is intended for RDF series commercial unit heater applications. It serves as a diagnostic and commissioning aid in installations where verifying full system startup sequences is required before returning equipment to normal service. This part is suited for commercial and industrial heating environments where REZNOR RDF equipment is installed, such as warehouses, manufacturing facilities, and large-bay spaces.

Key Features

• Designed specifically for REZNOR RDF series system integration
• Enables controlled system test sequences for commissioning and fault diagnosis
• Supports verification of burner and blower control circuits
• OEM replacement part ensuring compatibility with existing RDF control wiring

Compatibility

Designed as an OEM-style replacement test switch for REZNOR RDF series heating systems.

Installation Notes

Installation and replacement of this switch should be performed by a qualified HVAC technician familiar with commercial gas heating equipment. Disconnect all power to the unit and shut off the gas supply before servicing control components. Refer to the unit wiring diagram and service manual when reconnecting control circuit wiring. Follow applicable local codes and manufacturer service procedures when returning the unit to operation.

Technical Specifications

• Application: REZNOR RDF Series System Test

Standard Information

• Brand: REZNOR
• Manufacturer Part Number: rz101901
