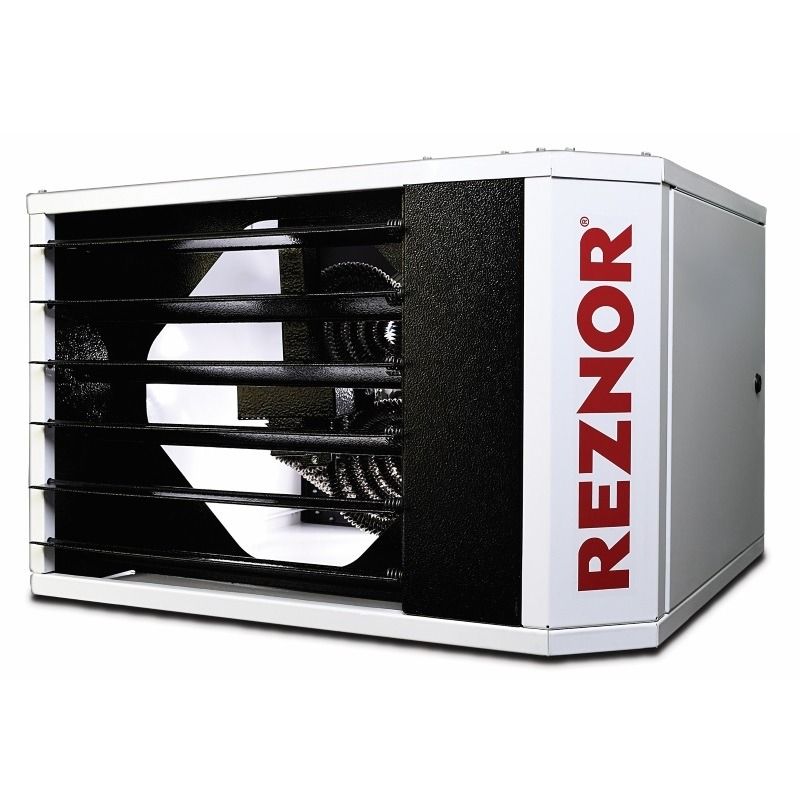

Reznor EUH-15 Electric Unit Heater 15kW / 51,182 BTU, 208V - 240V / 3 Phase

Product Description

The Reznor EUH-15 electric unit heater is designed for commercial and industrial space heating applications. This multi-voltage model is convertible and can operate at 208V or 240V, 3-phase. The EUH-15 provides 51,182 BTU/h of efficient heating with an air volume between 263 and 1,215 CFM. Multiple mounting options allow for flexible wall or ceiling installation.

• 15kW (51,182 BTU) heating capacity
• 208/240V 3 Phase electrical
• High 1215 CFM output moves more air

Product Highlights

The Reznor EUH-15 electric unit heater features a durable design, multiple mounting options, and easy installation for commercial and industrial use.

Product Information

Standard Information

• Brand: REZNOR
• Manufacturer Part Number: EUH-15

Technical Specifications

• SKU: EUH-15-AK20
• Brand/Manufacturer: Reznor
• Heating BTU: 51,182 BTU
• Maximum CFM: 1,215
• Electric Heat: 15 Kilowatts
• Electrical: 208-240 / 3 phase
• Phase: Three Phase
• Operating Mode: Heating
• Fuel Type: Electric
• Fan Size: 16"
• Mounting Type: Wall/Ceiling Mount
• Installation Type: Hanging - Ceiling or Wall
• Certified Usage: Commercial (Indoor Only)
• Installation Kit: Bracket Included
• kW (@208V): 11.3
• kW (@240V): 15
• CFMs: 263 / 1215 (Min. / Max.)
• Discharge Air Temperature Rise (°F): 39
• Blower: Built-In
• Remote: Not Available
• Fuse Block: No
• Oscillating: No
• Tip-Over Safety Switch: No
• Connectivity: Not WiFi Compatible
• Min. Mounting Height (ft.): 6'
• To Access Panel (in.): 21"
• To Side Wall (in.): 1"
• To Rear from Fan Motor (in.): 18"
• Voltage: 208-240V
• Amps (@208/3/60 - Low Heat): 26.8
• Amps (@208/3/60 - High Heat): 31.5
• Circuit Breaker (Amps @208V): 40
• Amps (@240/3/60 - Low Heat): 41.3
• Amps (@240/3/60 - High Heat): 36.4
• Circuit Breaker (Amps @240V): 45
• Certifications: UL, CSA
