Rexnord 801-20-32-01 RND Annular Assembly

Product Description

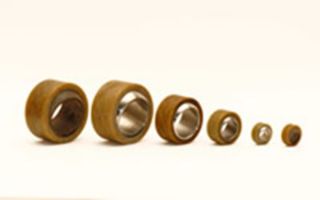

The Rexnord 801-20-32-01 RND is an annular assembly designed for reliability in various applications. This component is made from quality materials to ensure longevity and efficient performance. It has a bore diameter of 1.2500 inches and an outside diameter of 2.0000 inches, making it suitable for numerous mechanical systems.

• Bearing Type: Spherical Plain Bearings
• Lubrication: Maintenance Free/Self-Lubricating
• Operating Temperature Range: -65 to 325 °F

Product Highlights

This annular assembly features a self-lubricating design with a woven Teflon fiber liner, supported by a fiberglass and epoxy resin matrix. The metallic wear surface enhances durability and performance.

Product Information

Standard Information

• Brand: Rexnord
• MPN: 801-20-32-01

Technical Specifications

• Bore Diameter: 1.2500 inches
• Outside Diameter: 2.0000 inches
• Inner Ring Width: 1.0930 inches
• Outer Ring Width: 0.9370 inches
• Ball Diameter: 1.7950 inches
• Misalignment Angle: 6 °
• Ball Material: Stainless Steel
• Inner Ring Material: Stainless Steel
• Outer Ring Material: Woven Teflon Fiber
