Resideo ZD8X12 Parallel Blade Zone Damp 24 VAC 8 VA 8x12

Product Description

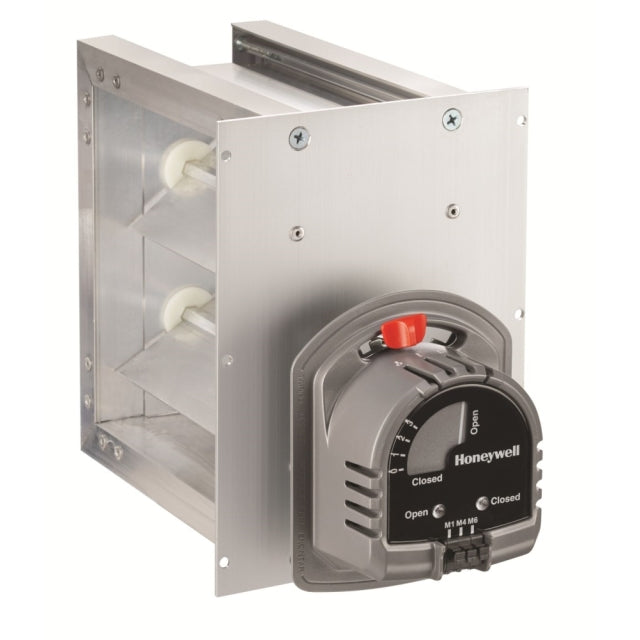

The RESIDEO ZD8X12 is a rectangular, parallel blade zone control damper, specifically designed for circulating air within residential HVAC systems. This 8 inch x 12 inch damper operates on 24 VAC 60 Hz with an 8 VA motor rating. Constructed from extruded aluminum for durability, it features a power closed, spring open mechanism. Compatible with TrueZONE and other electronic zoning systems, it provides precise and reliable airflow management.

• Mechanical Visual Position Indicator for Damper Status
• Solid Construction Using Extruded Aluminum Frame and Blades
• Fail-Safe, Normally Open Operation

Product Highlights

The RESIDEO ZD8X12 damper offers low leakage performance, easy two-wire installation, and adjustable position range stops for customized airflow.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD8X12

Technical Specifications

• Type: Rectangular Parallel Blade Power Closed Spring Open Supply Air Damper
• Opening Size: 8 x 12 Inch
• Overall Size: 3.95 W x 4.97 D x 4.64 H Inch
• Material: Extruded Aluminum
• Motor Mounting Type: Bottom
• Motor Rating: 24 VAC 60 Hz 8 VA
• Motor Torque: 71 Inch-Ounce
• Operating Temperature: 40 to 140 Deg F
• Pressure Drop: 0.0329 Inch WC at 800 FPM
• Motor Angular Rotation: 90 Degree
• Leakage: < 1% at 0.5 Inch WC
• Max Static Pressure: 1 Inch WC
• Motor Timing: 30s Power Open / 10s Spring Return
• Motor Terminal Wiring: M1-Power, M6 Common, M4 (Optional) LED
• Actuator Location: Side Mount
• Number of Wires: 2
• Style: New Construction
• Indicator Type: LED
• Compatibility: TrueZONE and Other Electronic Zoning Systems
• Application: Residential HVAC Air Circulation
