Resideo ZD24X8 parallel blade zone damper 24 vac 24x8 ZD24X8

Product Description

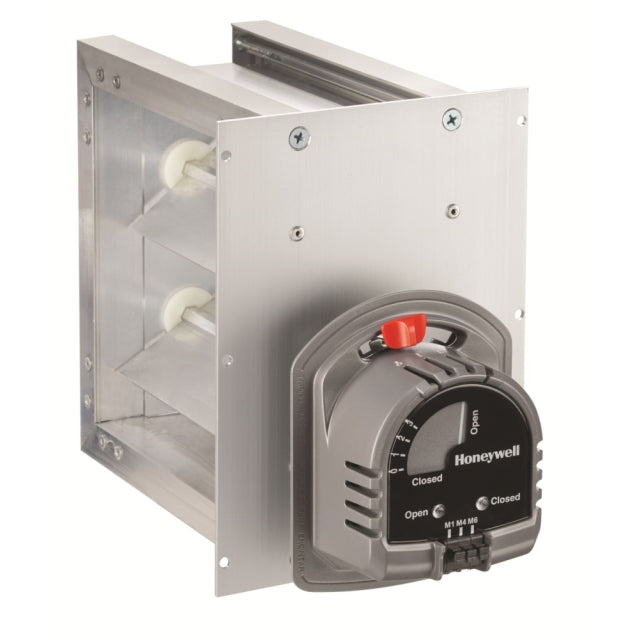

The RESIDEO ZD24X8 is a rectangular, parallel blade zone control damper designed for circulating air in residential HVAC systems. This power-closed, spring-open damper operates on 24 VAC 60 Hz with an 8 VA motor, featuring an extruded aluminum frame and blades for durability. It measures 24 inches by 8 inches and is compatible with TrueZONE and other electronic zoning systems, offering precise air control.

• Mechanical Visual Position Indicator for Damper Status
• Solid Construction Using Extruded Aluminum Frame and Blades
• Parallel Blade Design for Low Leakage Performance

Product Highlights

Features a mechanical visual position indicator and adjustable damper position range stops for customized airflow control.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD24X8

Technical Specifications

• Operation Type: Rectangular, Parallel Blade, Power Closed, Spring Open
• Size: 24 Inch x 8 Inch
• Dimensions: 3-61/64 Inch Width x 4-31/32 Inch Depth x 4-41/64 Inch Height
• Construction Material: Extruded Aluminum (Frame and Blade)
• Mounting Type: Side
• Motor Electrical Rating: 24 Volt AC 60 Hertz 8 Volt Amp
• Motor Torque: 71 Inch-Ounce
• Operating Temperature: 40 to 140 Deg F (Ambient)
• Pressure Drop: 0.0329 Inch WC at 800 Foot per Minute
• Angular Rotation: 90 Degree
• Leakage: Less than 1 Percent at 1/2 Inch WC
• Max Static Pressure: 1 Inch WC
• Actuation Timing: 30 Second (Power Open)/10 Second (Spring Return)
• Wiring Configuration: M1-Power, M6 Common, M4 (Optional) LED Indication
• Compatibility: TrueZONE and Other Electronic Zoning System
• Application: Circulating Air in HVAC System, Residential
• Replaces Model: ZD24X8 - 24" x 8" Rectangular (PC/SO) 2-Wire Zone Damper
• Number of Wires: 2-Wire
• Power Options: Power Close, Spring Open
• Shape: Rectangular
• Style: New Construction
• Damper Type: Supply Air Damper
• Indicator Type: LED
