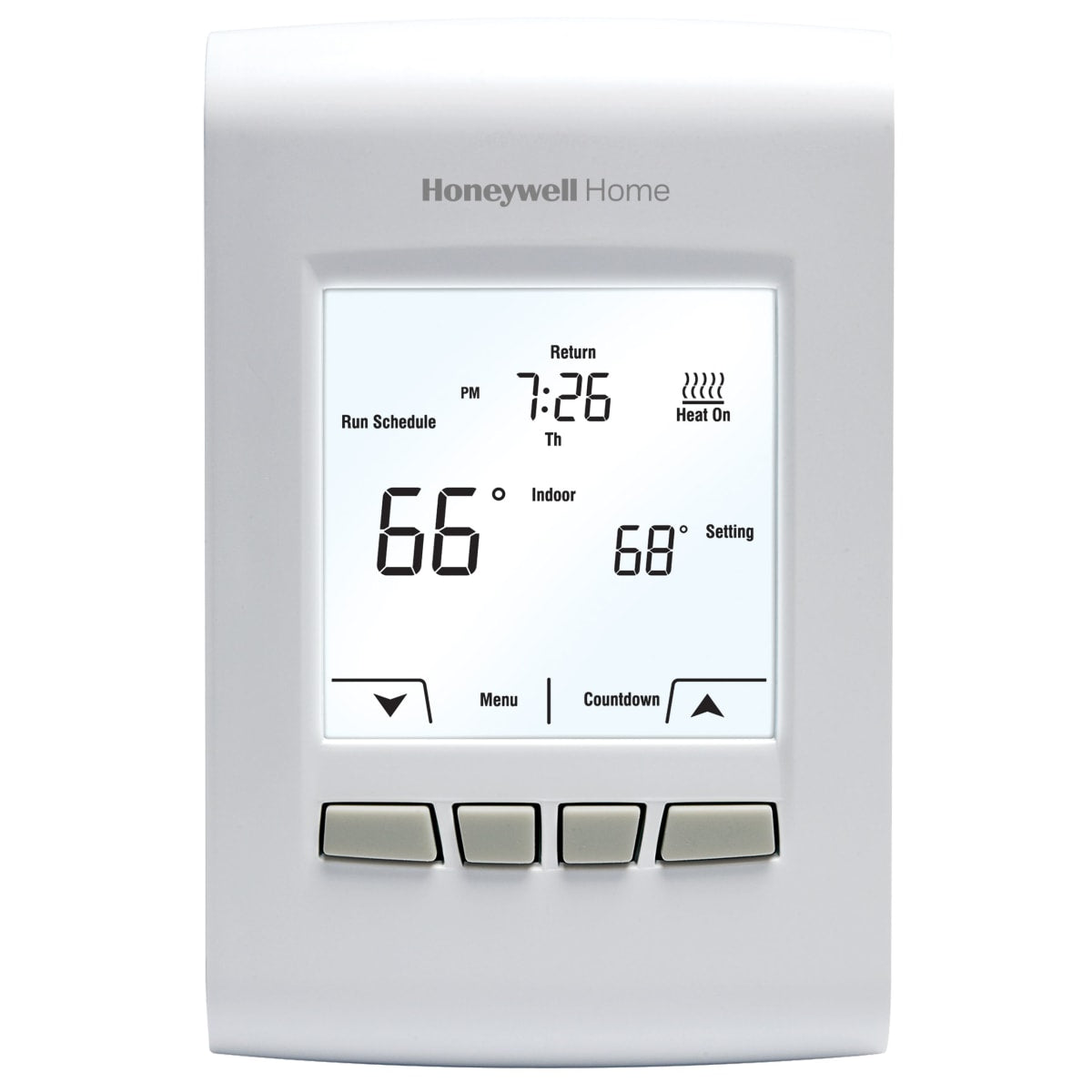

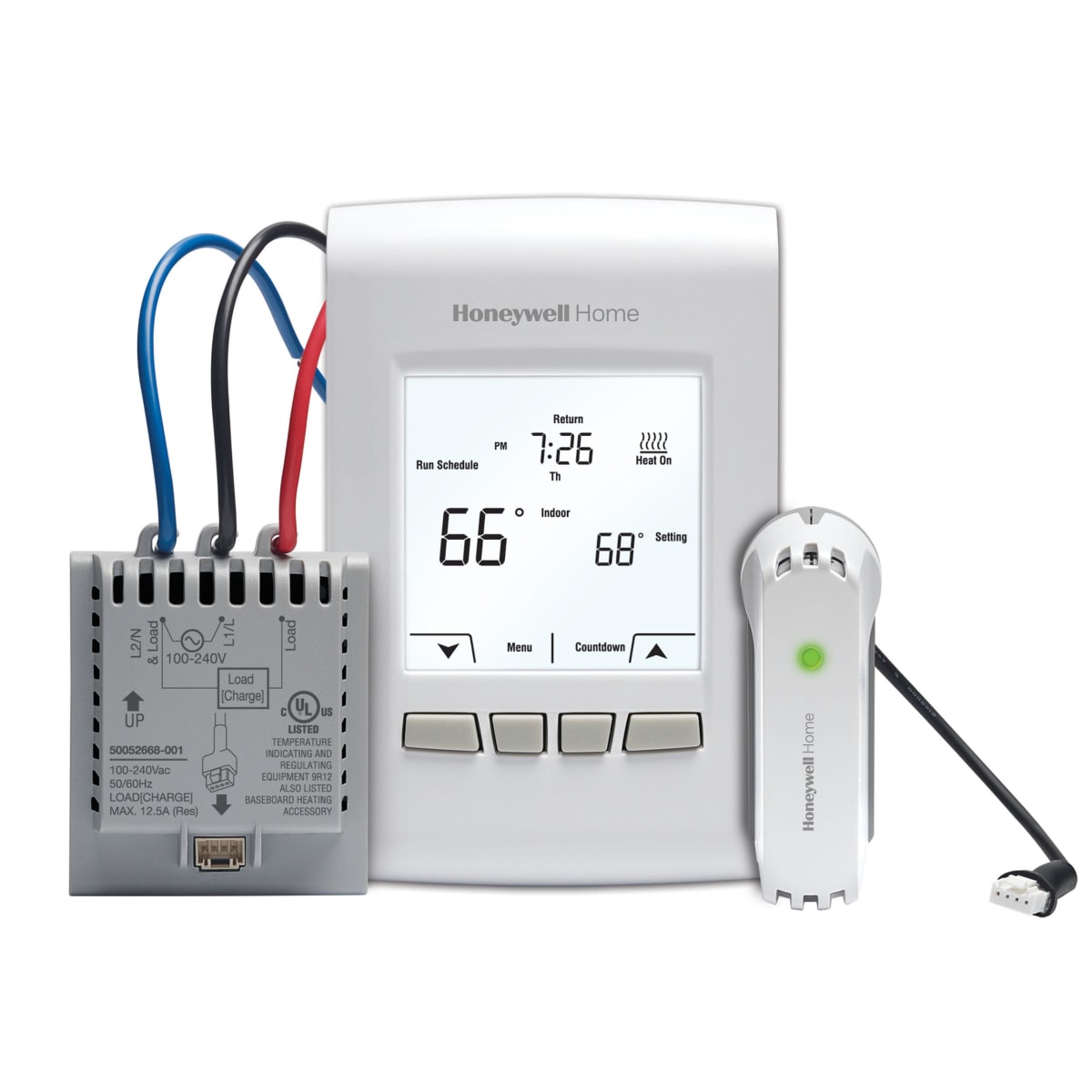

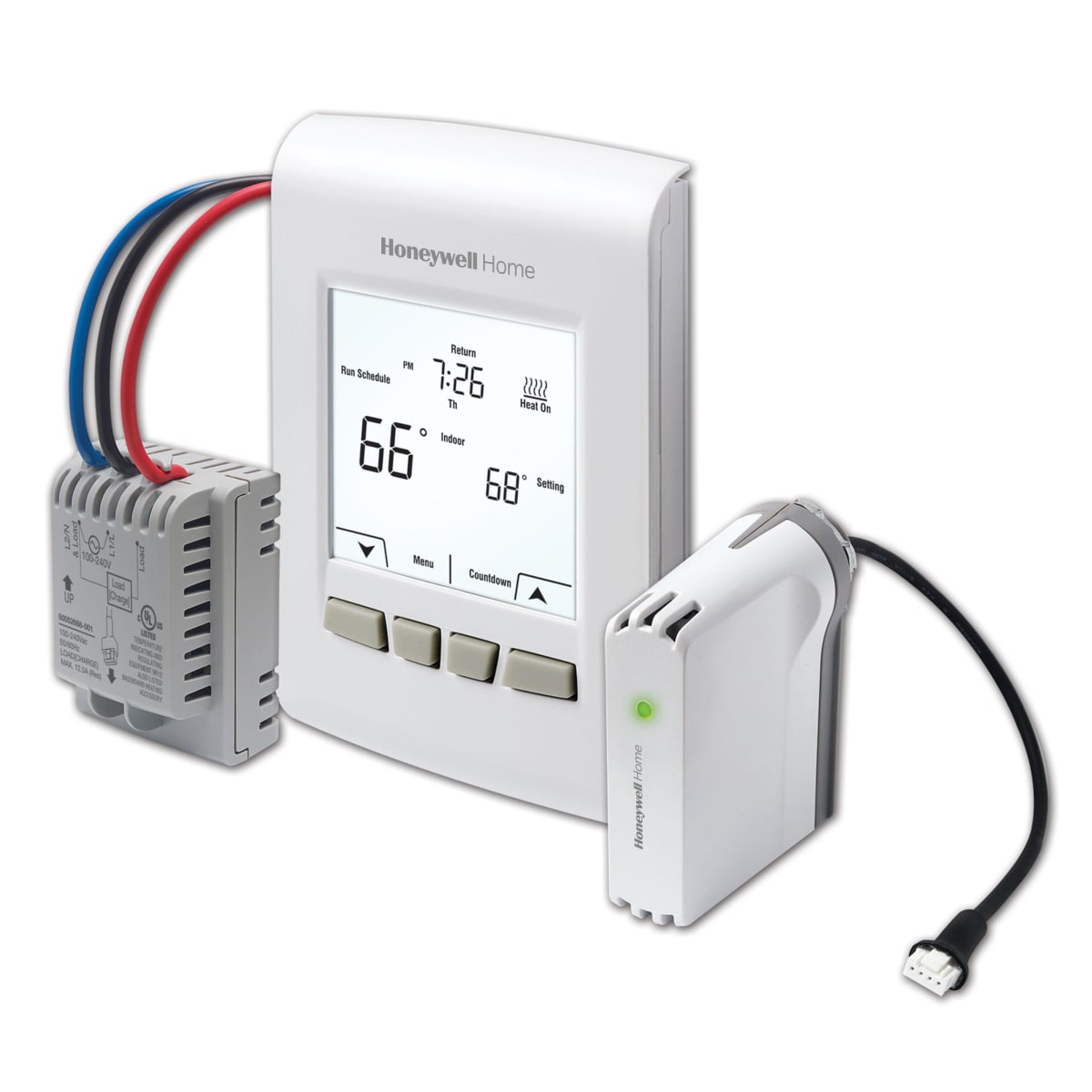

Resideo YTL9160AR1000/U Wireless Programmable/Non-Programmable Line Volt Thermostat Kit with the RedLINK Internet Gateway

Product Description

The Resideo YTL9160AR1000/U is a Wireless Programmable/Non-Programmable Line Volt Thermostat Kit. This thermostat is equipped with RedLINK technology, allowing for easy installation and operation without the need for additional wiring. It is designed to control electric heat baseboards, convectors, or fan-forced heaters efficiently.

• Compatible with multiple heating systems.
• Features a user-friendly interface with clear LCD screen.
• Includes an Equipment Interface Module for reliable HVAC communication.

Product Highlights

The thermostat can be installed quickly and effectively, providing added room control and facilitating easy relocations or upgrades.

Product Information

Standard Information

• Brand: Resideo
• MPN: YTL9160AR1000/U

Technical Specifications

• Power Method: Battery for thermostat, hardwired for Equipment Interface Module
• Temperature Range: 41°F to 86°F (5°C to 30°C)
• Operating Temperature Range: 32°F to 122°F
• Voltage: 100-240 VAC
• Weight: 1.7 lbs
• Dimensions: 4.06 inches height, 3.22 inches length, 4.06 inches width
• Wireless Technology: RedLINK
• Battery Size: AA
