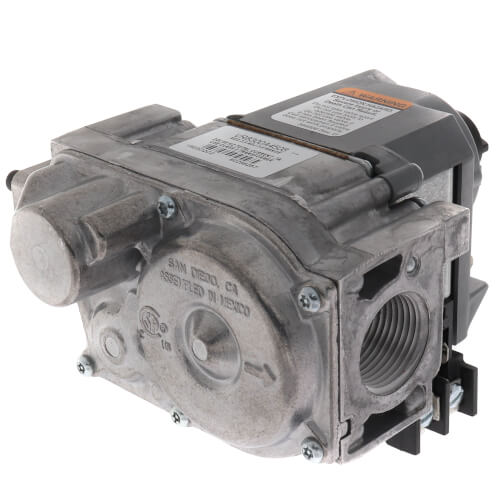

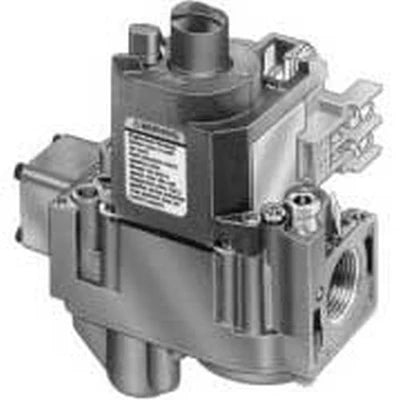

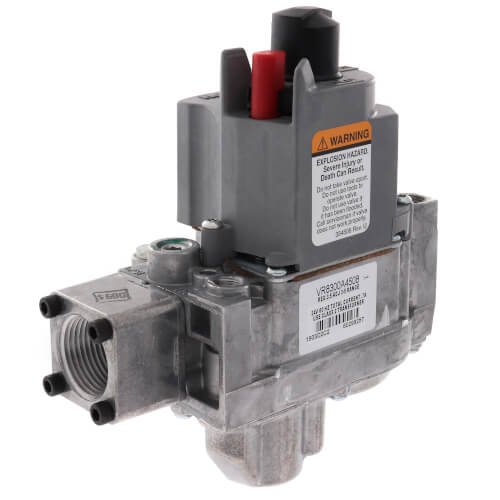

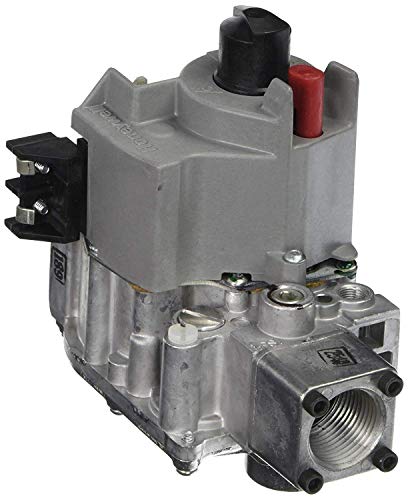

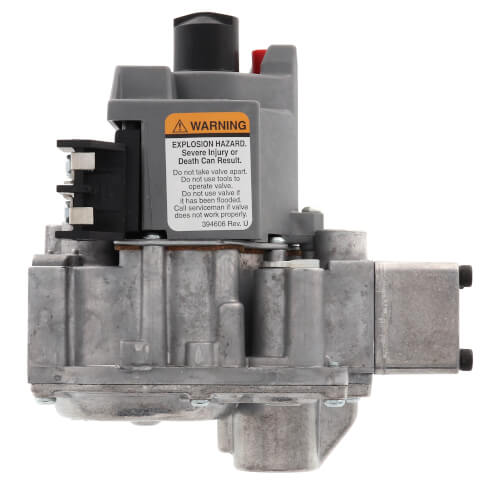

Resideo VR8300A4508 Standard Dual Standing Pilot Gas Valve 24V Replacement VR8300A4508

Product Description

The Resideo VR8300A4508 is a robust dual standing pilot gas valve designed to ensure efficient operation of gas-powered appliances. Featuring a 3/4 inch inlet and outlet, this model is crucial for maintaining safety and functionality in HVAC systems.

• Solenoid and diaphragm-operated valves for reliable operation.
• Includes safety shut-off, manual valve, and pressure regulator.
• Easy access for adjustments and compatible with ECO connectors.

Product Highlights

Offering a compact size, the Resideo VR8300A4508 includes two automatic operators that enhance the safety protocols within heating systems. Standing pilot ignition ensures continued operation even during power interruptions.

Product Information

Standard Information

• Brand: Resideo
• MPN: VR8300A4508

Technical Specifications

• Ignition Type: Standing Pilot
• Capacity: 200,000 BTU
• Voltage: 24V
• Fuel Type: Natural Gas
• Inlet Size: 3/4 inches
• Outlet Size: 3/4 inches
• Weight: 2.34 lbs
• Dimensions: 7 x 5.95 x 3.7 inches
