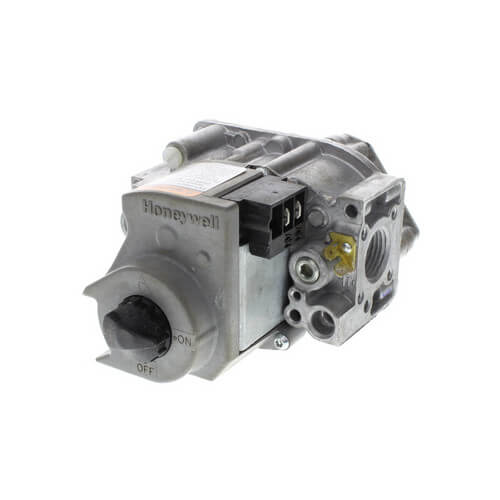

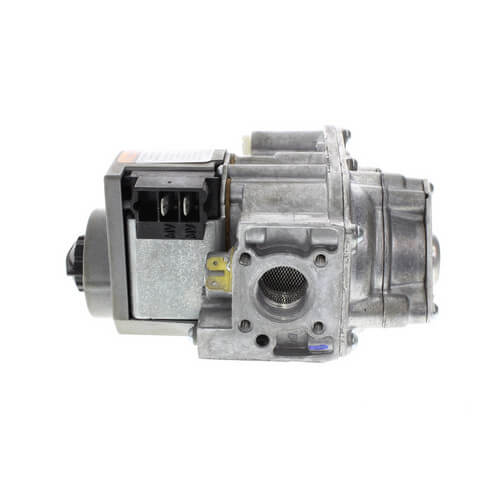

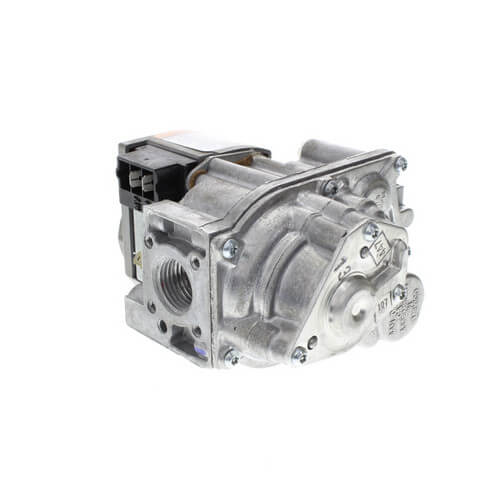

Resideo VR8205C1024 Step Opening Dual Direct Ignition Gas Valve

Product Description

The Resideo VR8205C1024 is a step opening dual direct ignition gas valve designed for use in gas-fired appliances operating at twenty-four volts alternating current. It functions effectively in heating systems with capacities ranging from twenty to two hundred cubic feet per hour.

• Dual automatic safety controls
• Includes a manual valve and two automatic operators
• Compatible with natural gas and LP conversion

Product Highlights

This gas valve meets the required safety standards and features both a solenoid and diaphragm-operated valve for reliable operation.

Product Information

Standard Information

• Manufacturer: Resideo
• Part Type: Gas Control

Technical Specifications

• Power Supply: 24 Vac
• Type of Gas: Natural and LP
• Inlet/Outlet Size: 1/2 inches x 1/2 inches
• Body Pattern: Straight-through
• Pressure Ratings: 0.5 psi
• Temperature Range: 0 F to 175 F
• Dimensions: 4.9375 inches high, 4.125 inches wide, 2.6875 inches deep
• Weight: 2.05 pounds
