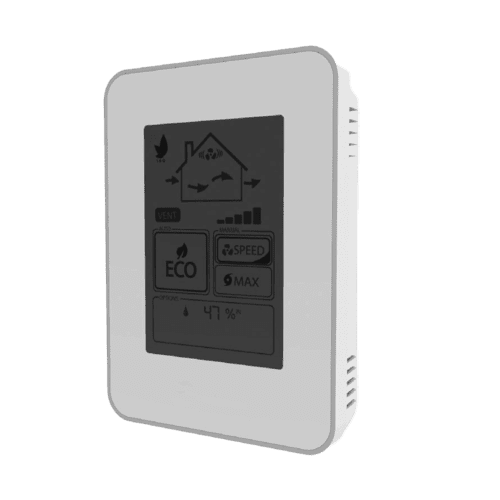

Resideo vnt5200h2000 Ventilation Balancing Control

Product Description

The RESIDEO vnt5200h2000 is a touchscreen balancing control designed for use with heat recovery ventilators and energy recovery ventilators. It gives HVAC technicians and homeowners a wall-mounted interface to manage ventilation operation in residential settings. The control supports two operating modes: a manual mode for direct user-set ventilation rates and an automatic ECO mode that adjusts ventilation based on programmed parameters. This unit provides precise airflow balancing control, which is critical for ensuring that HRV and ERV systems perform at rated efficiency.

This balancing control is intended for residential ventilation systems where indoor air quality management is a priority. It is typically installed by licensed HVAC technicians as part of a new HRV or ERV setup or as a replacement interface for an existing ventilation system. The touchscreen interface simplifies mode selection and system adjustments during commissioning and routine service calls.

Key Features

• Touchscreen interface for intuitive mode selection and system control
• Manual mode allows direct user control over ventilation rates
• Automatic ECO mode adjusts ventilation operation based on preset parameters
• Designed specifically for HRV and ERV balancing applications
• Wall-mounted installation for accessible homeowner and technician access

Compatibility

Compatible with the following RESIDEO ventilator models: VNT5150E2000, VNT5150H2000, VNT5200E2000, and VNT5200H2000.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with low-voltage ventilation controls and local mechanical codes. Power down the ventilator unit and disconnect any low-voltage wiring before removing an existing control or making new connections. Follow the ventilator manufacturer wiring diagram for proper terminal assignments. Do not operate the control without confirming the ventilator is fully commissioned and airflow is balanced per system design specifications.
