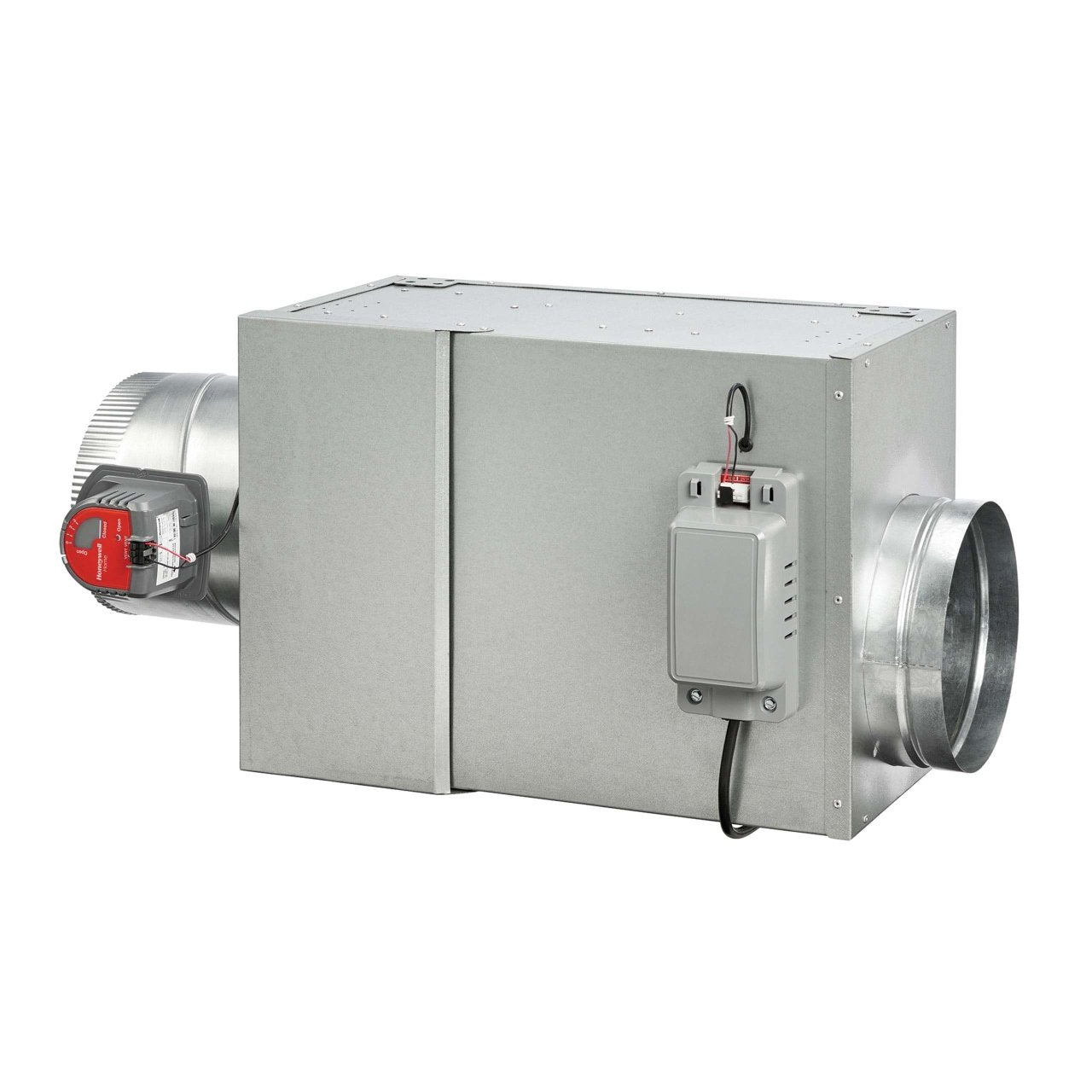

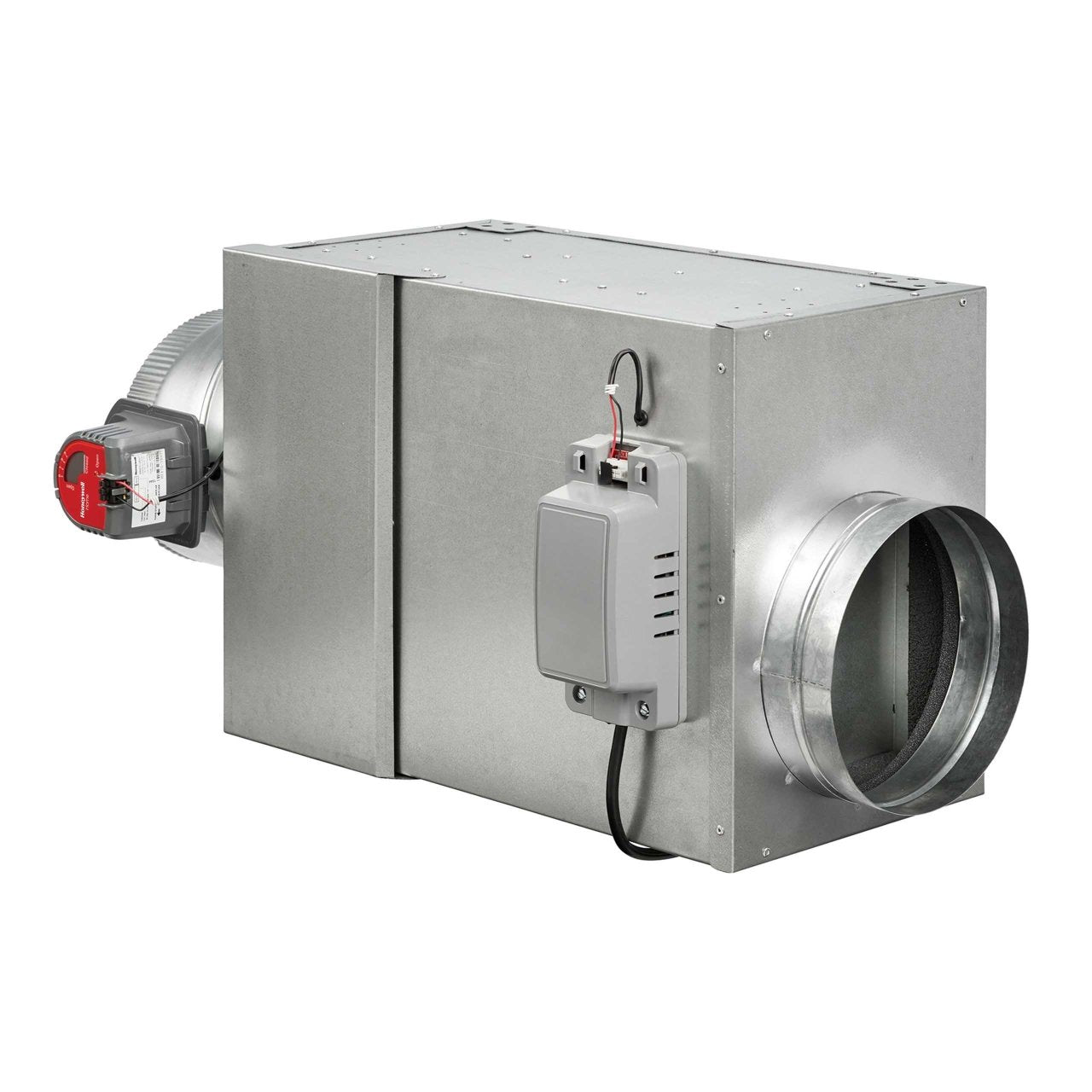

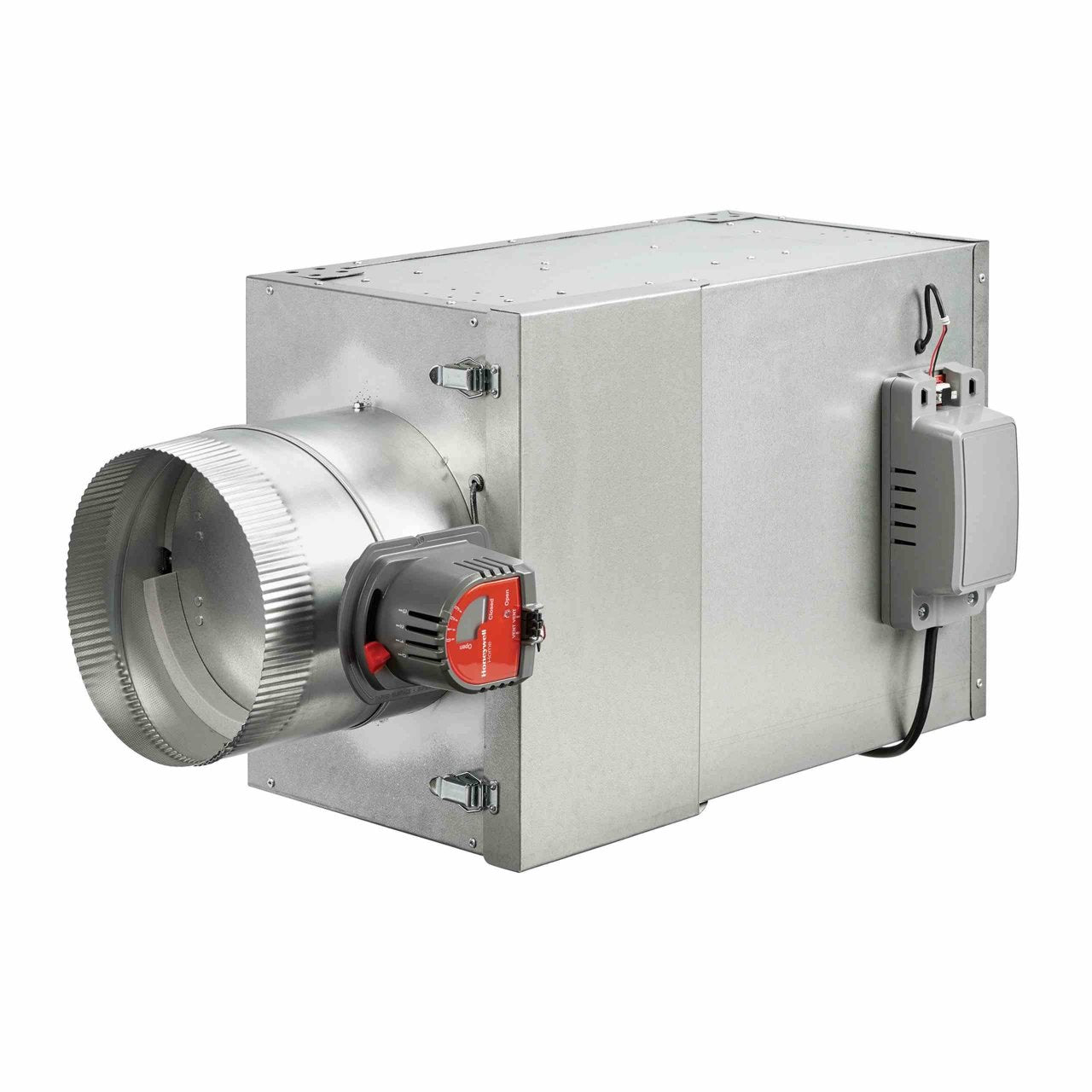

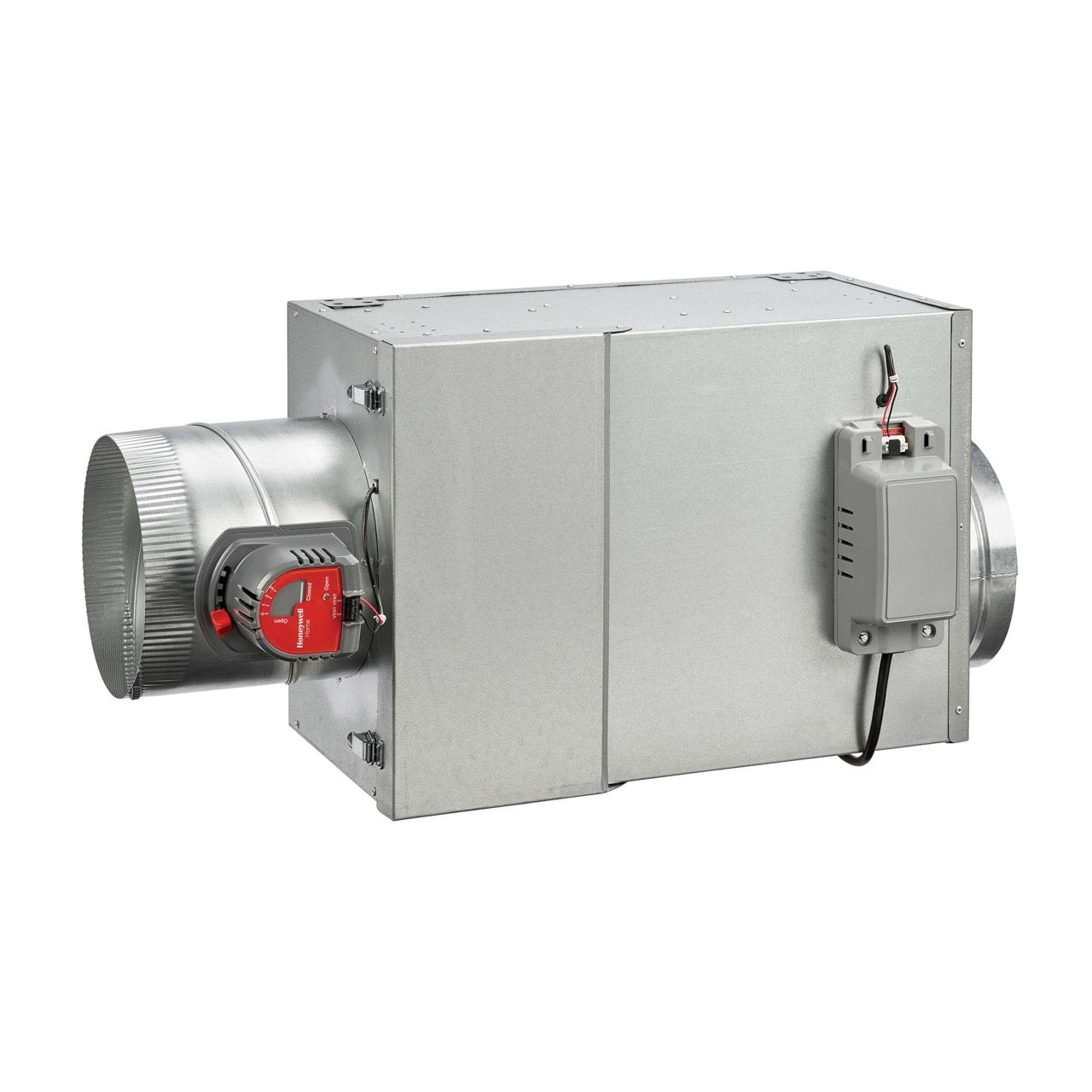

Resideo VNT2200A1000 Fresh Air Supply Ventilator with Damper

Product Description

The RESIDEO VNT2200A1000 Fresh Air Supply Ventilator brings outside air inside to increase the number of air exchanges in a home and provide better indoor air quality. The duct-mounted ventilator interfaces with a ventilation control and powers an electronic damper. Constructed with galvanized steel, it operates at 120 Vac and 60 Hz.

• Brings Fresh Air Inside the Home
• Duct-mounted for easy installation

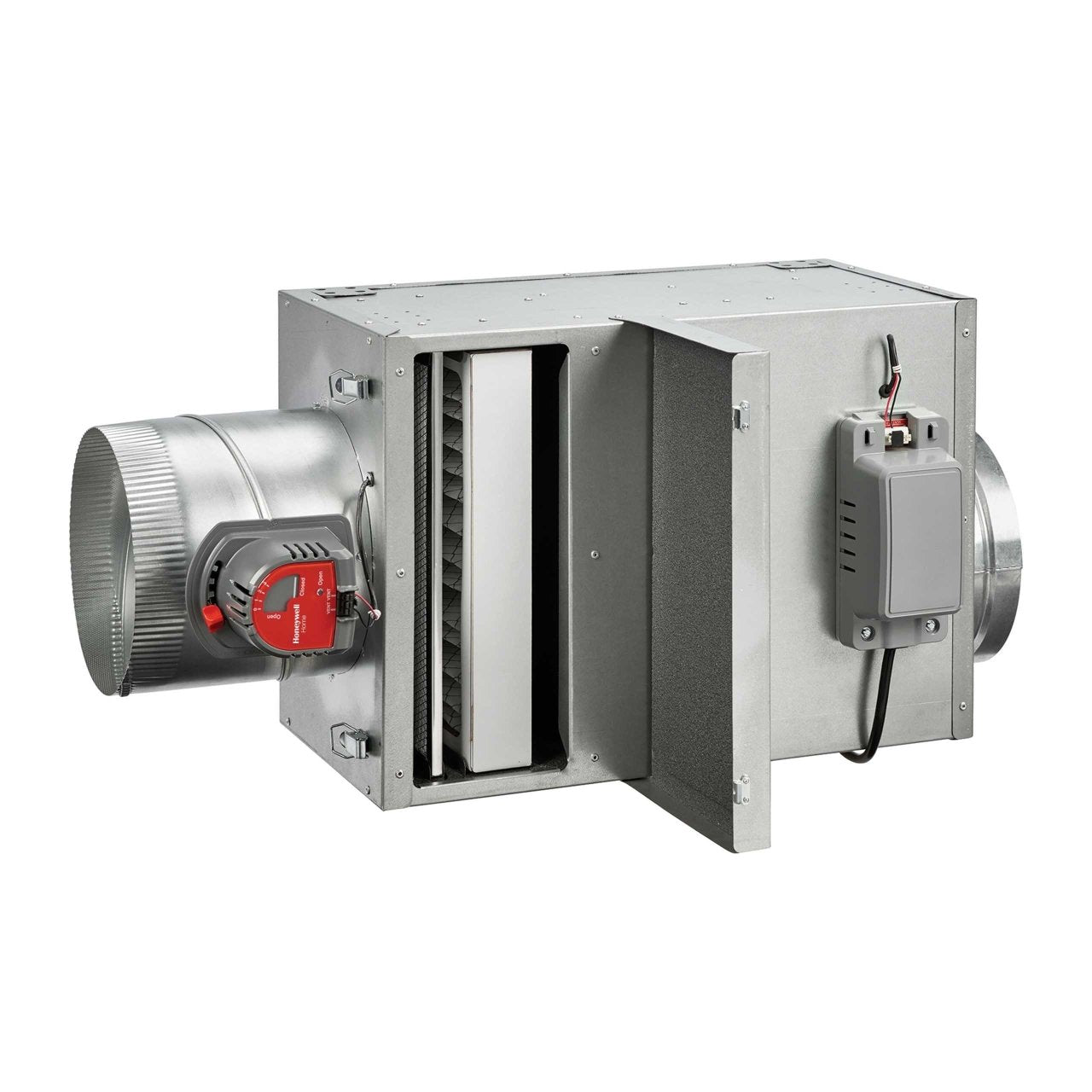

• Includes MERV 8 Filter

Product Highlights

The RESIDEO Fresh Air Supply Ventilator improves indoor air quality by increasing air exchanges. It features a galvanized steel body and includes a MERV 8 filter.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: VNT2200A1000

Technical Specifications

• Current Draw: 0.7 A
• Approvals and Standards: UL Listed, Report E187216, HVI 2100 Certified
• Includes: MERV 8 Filter
• Product Height: 15 in, 381 mm
• Product Length: 29 in, 736 mm
• Product Width: 14.2 in, 361 mm
• Ambient Relative Humidity (Min): 0% Non-condensing
• Ambient Relative Humidity (Max): 95% Non-condensing
• Auxiliary Outputs: No
• Body Material: Galvanized Steel
• Collar Diameter: 8 in
• Operating Voltage: 120 Vac
• Power Supply Frequency: 60 Hz
