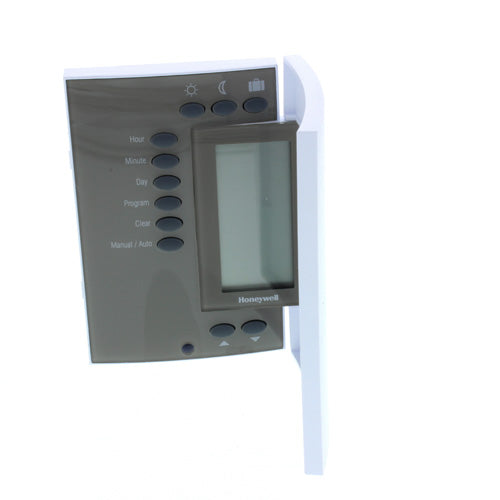

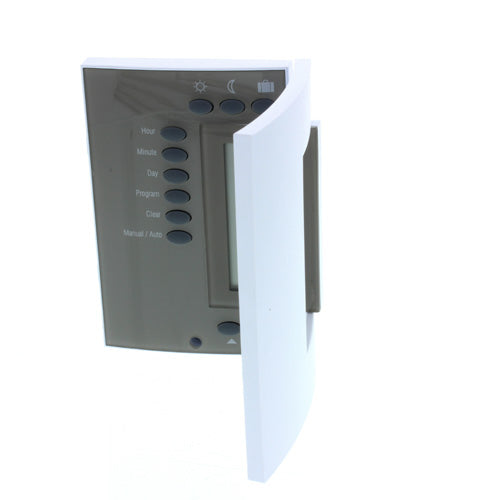

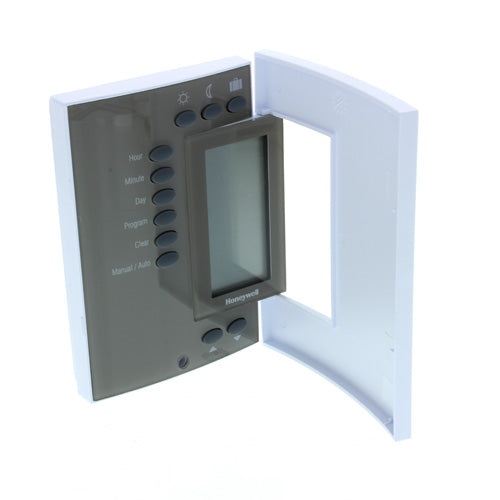

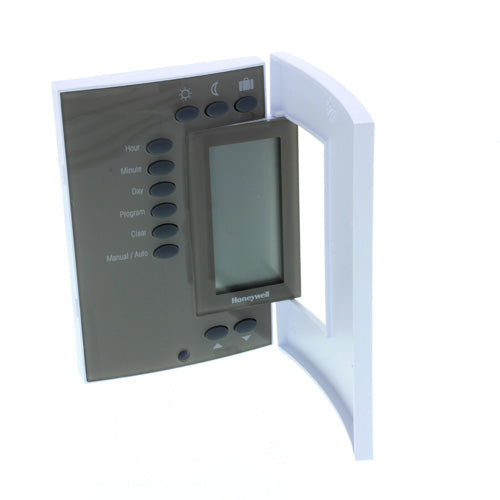

Resideo TL8100A1008 Multi-Application 7-Day Programmable Electronic Thermostat

Product Description

The Resideo TL8100A1008 is a multi-application 7-day programmable electronic thermostat designed for various heating systems. It supports applications such as baseboards, convectors, and radiant ceilings, making it versatile for different setups. This thermostat operates on two AA batteries and is compatible with millivolt systems.

• 7-day programming for customized temperature control
• Maximum electrical load: five amps resistive and two amps inductive
• Thermistor sensor for accurate temperature regulation

Product Highlights

This thermostat provides ease of use with a push-button interface and features such as pump protection for hot water heating. It is packaged in a clamshell for easy visibility and handling.

Product Information

Standard Information

• Brand: Resideo
• MPN: TL8100A1008

Technical Specifications

• Power Method: 2 x AA batteries
• Electrical Ratings: 5 A resistive, 2 A inductive @ 24 VDC, 120 Vac, 240 Vac
• Dimensions: Length 6.75 inches, Width 4.55 inches, Height 1.5 inches
• Operational Temperature Range: 32°F - 122°F
• Humidity Range: 0% to 95% non-condensing
• Compatible Systems: Millivolt systems
• Relay Switch Type: Standard relay
• Accuracy: 0.5°C
