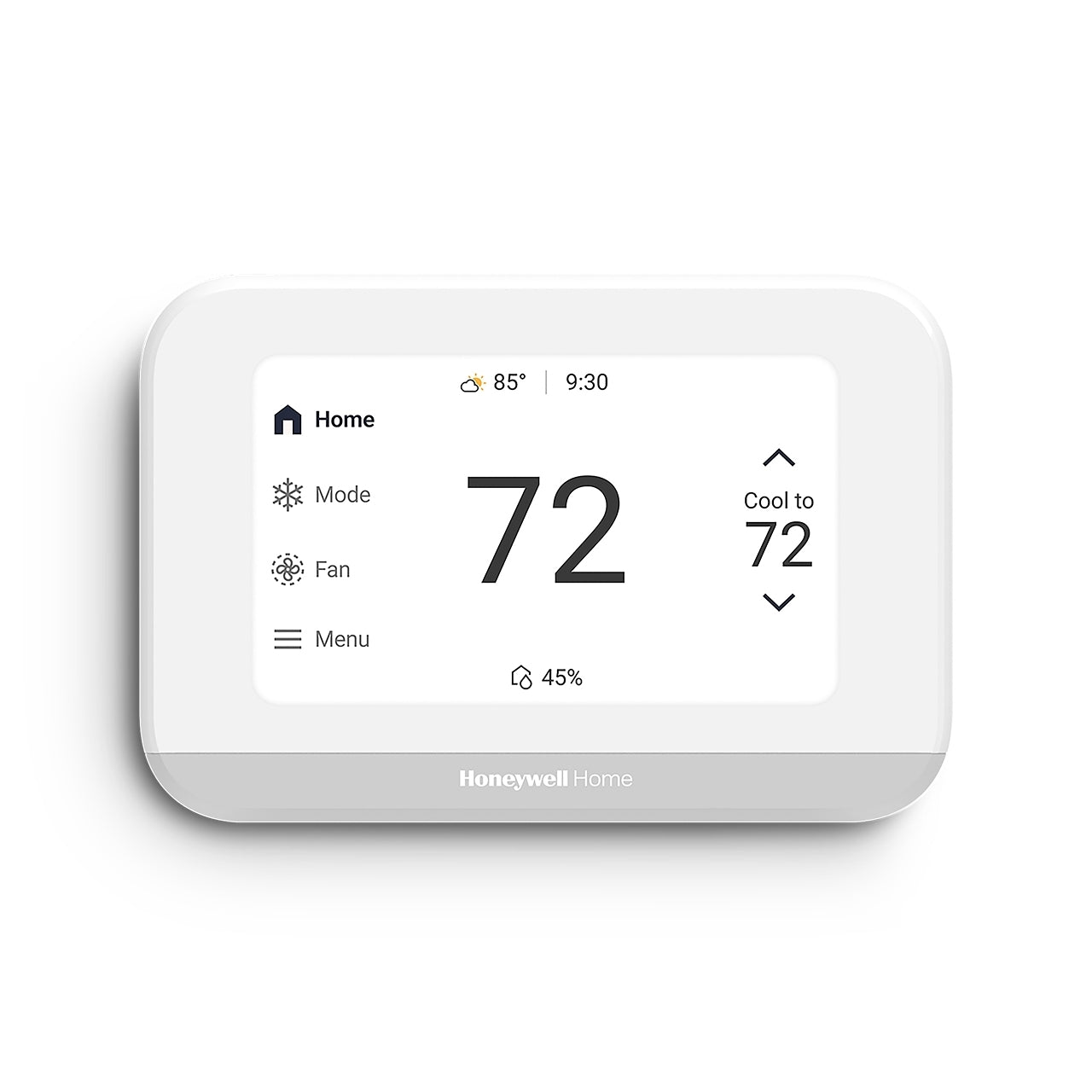

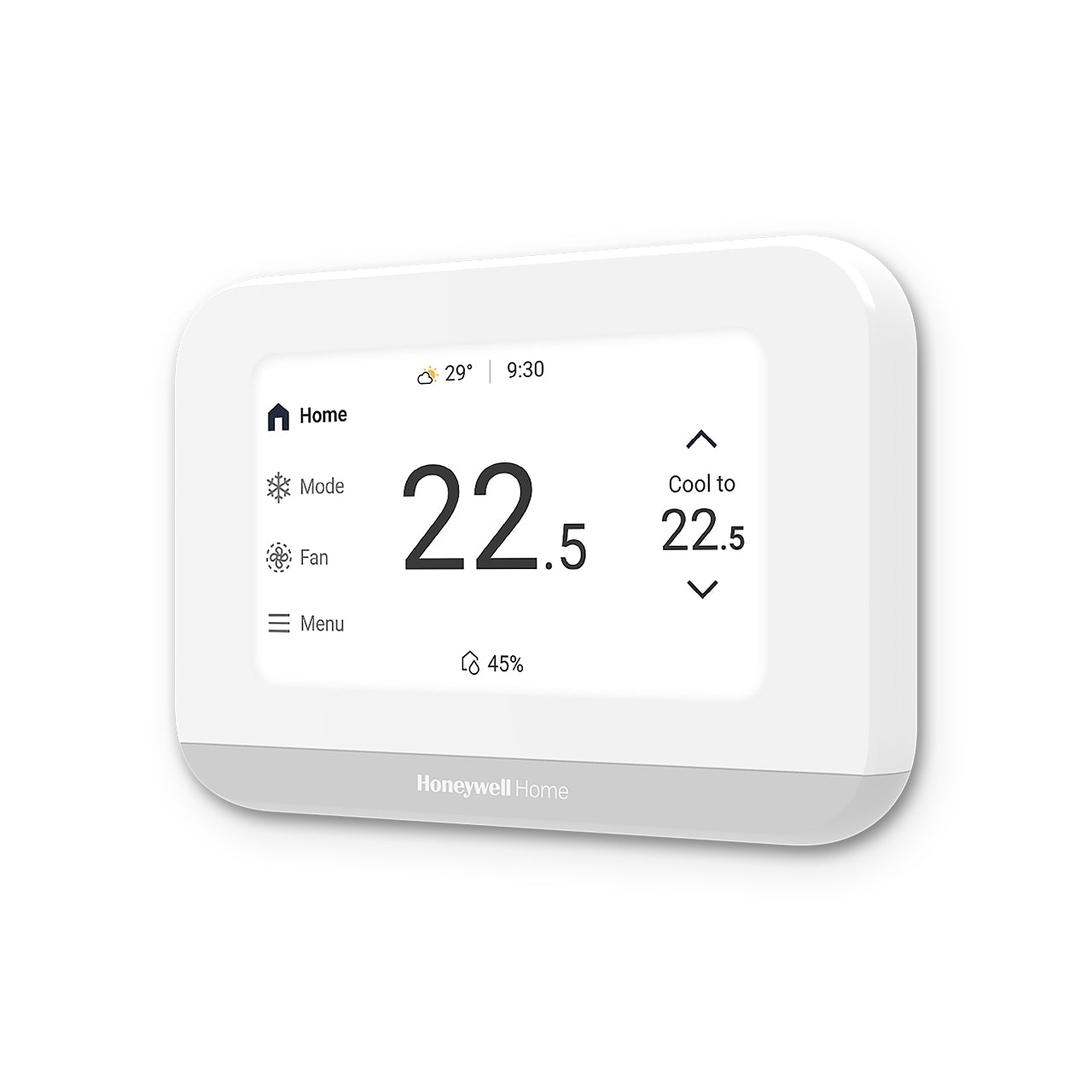

Resideo thx900w1/u Smart Thermostat Touchscreen White

Product Description

The RESIDEO thx900w1/u is a hardwired smart thermostat designed for residential and light commercial 24 VAC HVAC systems. It features a 4.3 square inch color touchscreen with display language selectable for English, French, or Spanish. The thermostat supports up to 3H/2C heat pump staging or 2H/2C conventional staging and includes built-in Wi-Fi for smart home integration. Indoor humidity monitoring with a set point range of 0 to 90 percent RH gives HVAC technicians a single control point for both temperature and IAQ management. A C-wire is required for hardwired power. Energy Star certified for qualifying installations.

This thermostat is suited for residential and light commercial applications including gas, oil, electric warm air, hydronic, fan coil unit, and PTAC systems. It supports time-based or Smart Away programming and can be configured for both residential and light commercial program types. Auto or manual heat-cool changeover is selectable. Emergency heat mode is included for heat pump applications. The utility rewards feature supports demand-response enrollment where applicable.

Key Features

• 4.3 square inch touchscreen with English, French, and Spanish display language options
• Supports 3H/2C heat pump or 2H/2C conventional staging
• Built-in Wi-Fi with smart home integration capability
• Indoor humidity monitoring with 0 to 90 percent RH set point range
• Energy Star certified
• Hardwired 24 VAC operation — C-wire required
• Utility rewards feature for demand-response programs

Compatibility

Compatible with residential and light commercial 24 VAC systems including gas, oil, electric warm air, hydronic, fan coil unit, and PTAC configurations. Supports IAQ control integration.

Installation Notes

Installation should be performed by a licensed HVAC technician. Power down the system at the breaker before wiring. A C-wire is required — confirm availability at the thermostat base before beginning installation. Mount horizontally to a wall J-box per the manufacturer wiring diagram and applicable local codes.

Technical Specifications

• Application: Residential or light commercial, 24 VAC systems
• System Types: Gas, oil, electric warm air, hydronic, fan coil unit, PTAC
• Stages: 3H/2C heat pump or 2H/2C conventional
• Display Size: 4.3 square inches
• Touchscreen: Yes
• Display Language: English, French, or Spanish (display selectable)
• Wi-Fi: Yes
• Smart Home Integration: Yes
• Power Supply: Hardwired, C-wire required
• Frequency: 60 Hz
• Color: White
• Modes of Operation: Heat, Off, Cool, Auto, Emergency Heat
• Program Type: Time-Based or Smart Away, Residential or Light Commercial
• Heat-Cool Changeover: Auto or Manual
• Set Point Temperature Range: Heat 40 to 90 degrees F, Cool 50 to 99 degrees F
• Humidity Set Point Range: 0 to 90 percent RH
• Ambient Operating Temperature: 37 to 102 degrees F
• Operating Relative Humidity: 5 to 90 percent RH
• Mounting Location: J-box, horizontal wall mount
• Product Height: 3.54 inches
• Product Width: 5.25 inches
• Product Depth: 0.96 inches
• Energy Star Certified: Yes
• Warranty: 5 years

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: thx900w1/u
