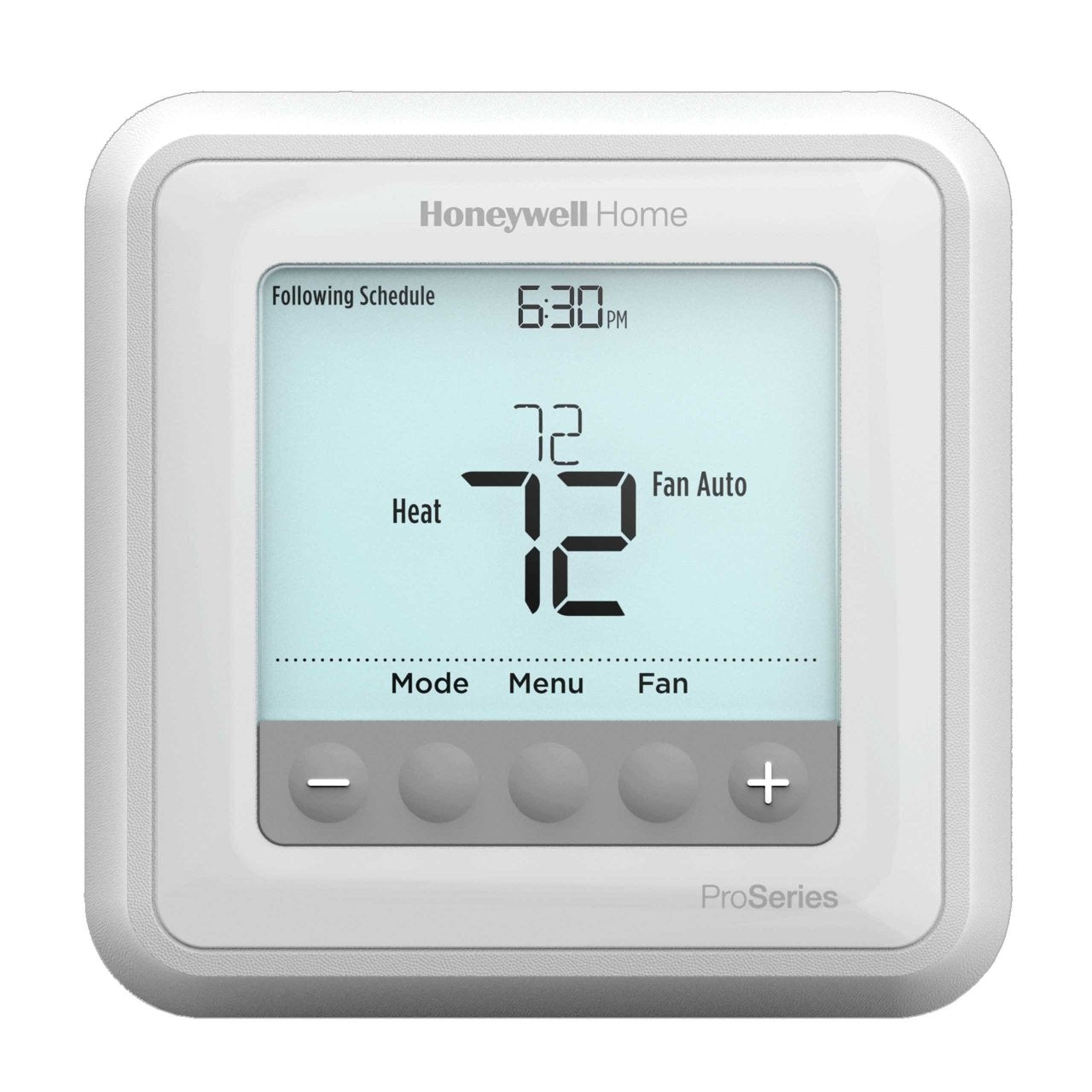

Resideo TH6220U2000 2HT/2CL prog 24V T6 stat

Product Description

The Resideo TH6220U2000 Programmable Thermostat offers precision temperature control for enhanced comfort and energy efficiency in various settings. This advanced control solution is designed for precise temperature management in residential and commercial applications. With 2-heat/2-cool system compatibility and 24V operation, it provides versatile programming options for optimal comfort throughout the day, making it ideal for homes, apartments, offices, and commercial buildings.

• 2 Heat/2 Cool System Compatibility
• 7-Day Programming
• Smart Response Technology

Product Highlights

Precision temperature control for enhanced comfort and energy efficiency.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TH6220U2000

Technical Specifications

• Type: Programmable
• Series: T6 Pro
• Display Size: 5.44 sq in.
• Application: Conventional or Heat Pump
• Power Source: Battery Only (2 x AA), Hardwired Only (terminals R & C) or Harwired with Battery Backup (terminals R + optional C)
• Temperature Control Range: Heat: 40 to 90 Deg F Cool: 50 to 99 Deg F
• Fan Switching Modes: Auto-On-Circ-Follow Schedule
• Mounting Type: Wall
• Input Voltage: 20 to 30 Vac
• Stages: 2 Heat / 2 Cool Conventional or 2 Heat / 1 Cool Heat Pump - dual fuel and aux heat lockout with outdoor sensor
• System Switching Modes: Heat-Off-Cool-Auto-Em Heat
• Programmability: 7-day, 5-2 day, 5-1-1 day or non-programmable
• Terminal Designations: R, RC, C, W, O/B, W2-AUX, E, Y, Y2, G, L/A, K, S, and S
• Changeover Mode: Auto or Manual
• Interface: Button
• Display Type: Monochrome
• Mounting Shape: Square
• Running Current: 0.02-0.50A or 0.02-1.00A (varies by terminal)
• Dual Fuel: Yes
• Operating Temperature Range: 37 to 102°F
• Operating Humidity Range: 5 to 90% RH, non-condensing
• Frequency: 50/60 Hz
• Switch Type: Relay
• Differential Temperature: ± 1 Degree Differential
• Temperature Accuracy: 1°F temperature accuracy
• Battery Type: Alkaline
• Battery Size: AA

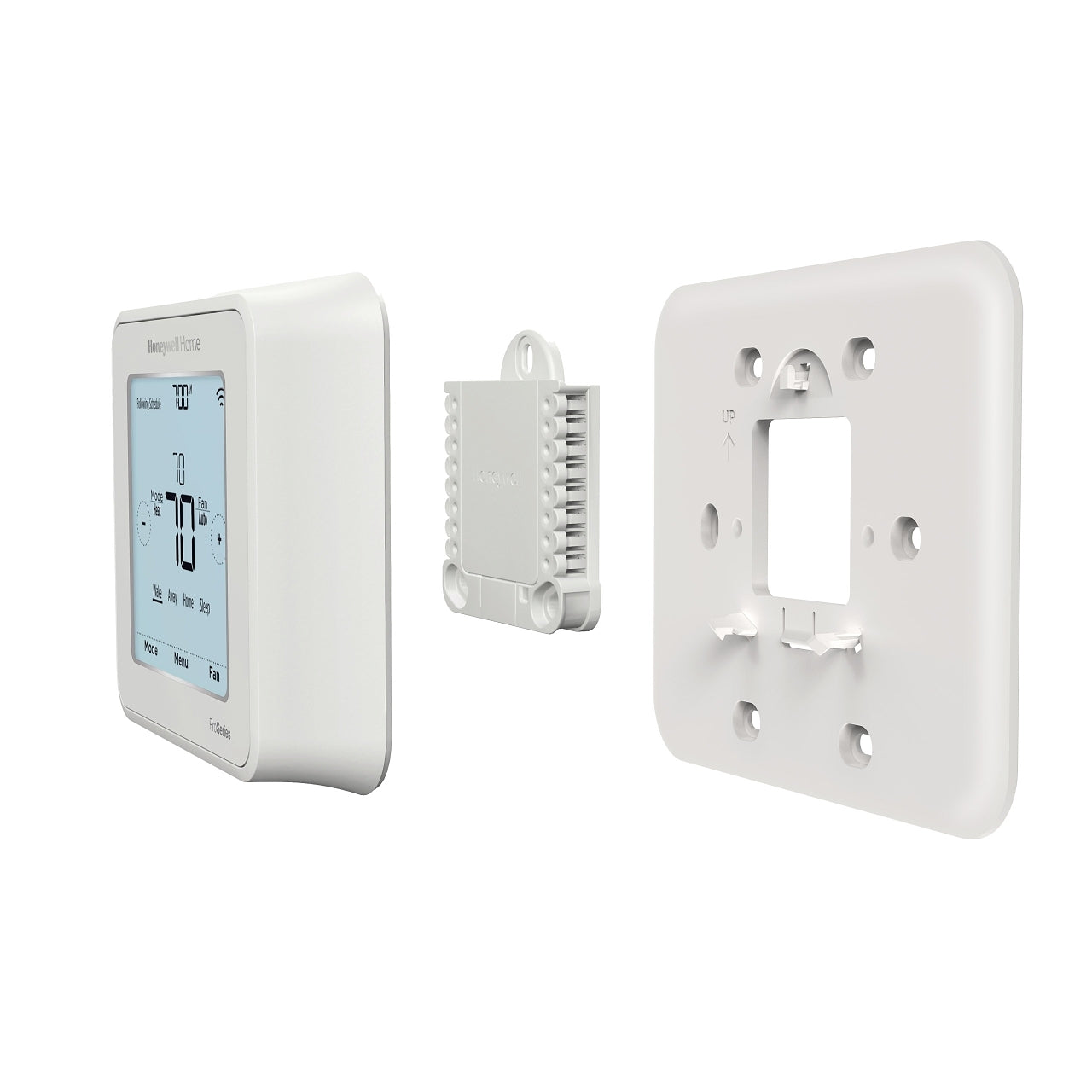

• Mounting System: UWP System
