Resideo TH1110D2009-44 T1 Non-Programmable Thermostat

Product Description

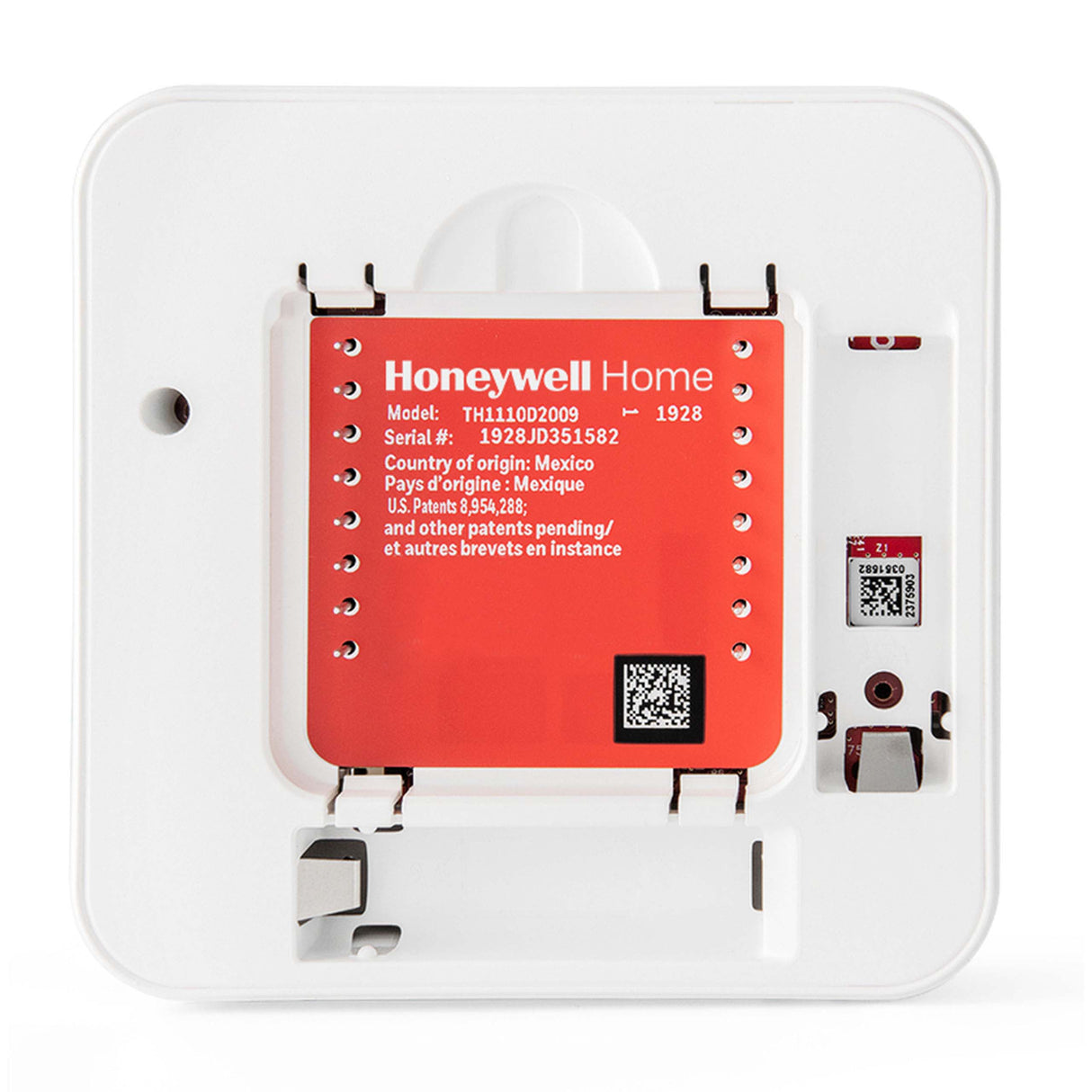

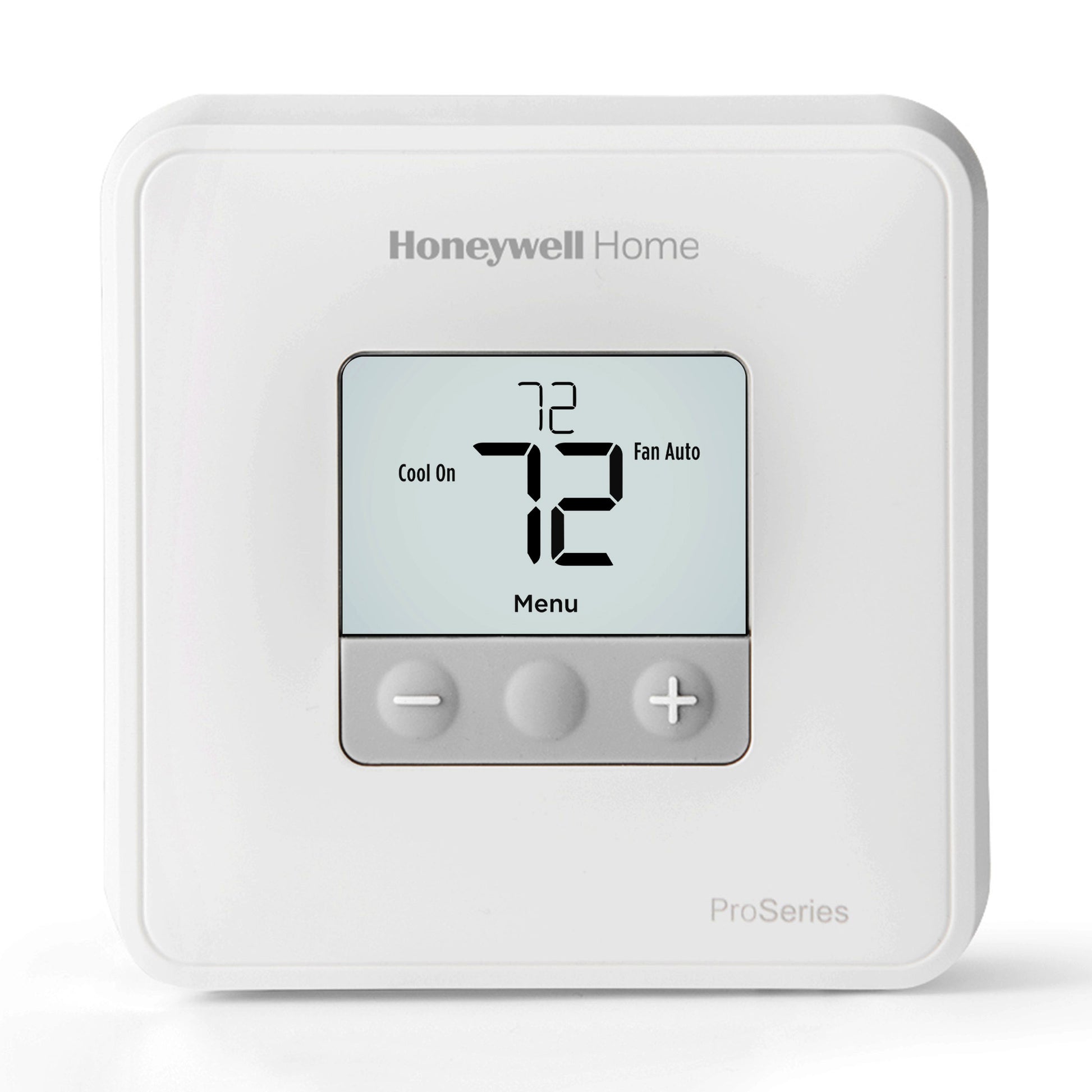

The Resideo TH1110D2009-44 T1 Pro Non-Programmable Thermostat comes with the standard UWP mounting system. Features push-button control and a sleek aesthetic, it will fit right into any decor. Designed for 24V power systems, the TH1110D2009 supports single-stage heat and cool setups. The thermostat accommodates single-stage heat pumps without auxiliary heat and covers a temperature range from 32 to 90°F.

• Simple installation with push-button control
• Easy to read display with a display size of 2.37 in.
• 24 Vac systems; gas, oil, electric warm air; hot water coil; gas, oil, electric hydronic; or steam / gravity systems

Product Highlights

The T1 Pro Non-Programmable Thermostat makes temperature control simple with easy installation and an easy to read display.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TH1110D2009-44

Technical Specifications

• Thermostat Type: Non programmable
• WiFi: No
• RedLINK: No
• Color: White
• Includes: T1 Pro Thermostat; UWP Mounting System; Honeywell Home Standard Installation Adapter (J-box adapter); Decorative Cover Plate; Screws and anchors; 2 AA Batteries; Installation Instructions and User Guide
• Stages: 1 Heat or 1 Cool Conventional Systems
• Modes of Operation: Heat; Cool
• Program Type: Manual / Not Programmed
• Display Type: LCD Screen
• Display Language: English
• Product Height: 4.06 in; 104 mm
• Product Width: 4.06 in; 104 mm
• Product Depth: 1.09 in; 28 mm
• Warranty: 5 Years
• Energy Star Certified: No
• Features: Backlit Display
• Power Source: Battery or Hardwired
• Changeover: Manual
• Display Size: 2.37 sq. in.
• Electrical Connections (in): Honeywell UWP Mounting System
• Electrical Rating (amp): 20 -30 VAC
• Frequency: 50 Hz; 60 Hz
• Operating Humidity Range (%RH): 5% - 90% RH, Non-Condensing
• Operating Temperature Range (C): 0° - 39°
• Operating Temperature Range (F): 32° - 102°
• Setting Temperature Range (C): Heat: 0° - 32°; Cool: 10° - 37°
• Setting Temperature Range (F): Heat: 32° - 90°; Cool: 50° - 99°
• Supply Voltage: 20 - 30 VAC
• Switch Positions (Fan): AUTO-ON
• Switch Positions (System): HEAT-OFF-COOL
