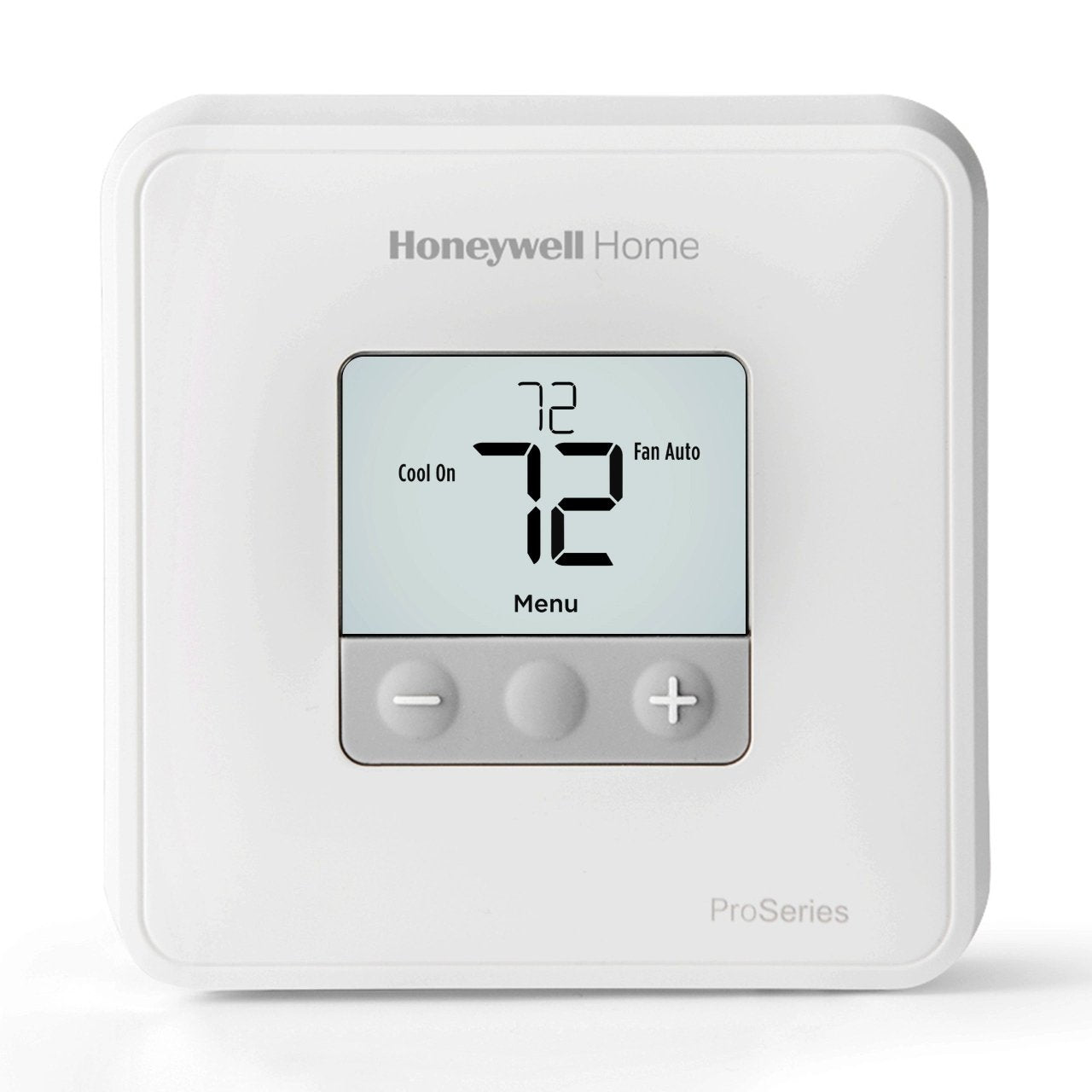

Resideo TH1010D2000 T1 Pro Non-Programmable Thermostat 24 Vac

Product Description

The Resideo TH1010D2000 T1 Pro Non-Programmable Thermostat provides temperature control for 24 Vac systems, including gas, oil, electric warm air, hot water coil, electric hydronic, and steam/gravity systems. It features soft key controls and a 2.37 sq. in. LCD display with an LED backlight for clear readability. This thermostat supports up to 1 heat or 1 cool conventional systems and offers both battery and hardwired power options.

• Simple installation process for quick setup.
• Push-button control for straightforward user interaction.
• Easy-to-read 2.37 sq. in. LCD display with LED backlight.

Product Highlights

Non-programmable thermostat with soft key controls, LED backlight, and dual power options for conventional 24 Vac systems.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TH1010D2000

Technical Specifications

• System Application: 24 V AC systems, gas, oil, electric warm air, hot water coil, electric hydronic, steam/gravity systems, Heat Pump without auxillary heat
• Type: Non programmable thermostat
• System Stages: 1 Heat or 1 Cool Conventional Systems
• Smart Home Compatibility: No
• Display Technology: LCD Screen
• Display Area: 2.37 sq in
• Language: English
• Time Format: 24 Hour, 12 Hour (AM/PM)
• Operating Modes: Heat, Cool
• Programmability: Manual / Not Programmed
• Power Method: Battery Powered, Hardwired
• Battery Size: AA
• Battery Chemistry: Alkaline
• Wi-Fi Connectivity: No
• Z-Wave Connectivity: No
• RedLINK Connectivity: No
• Product Color: White
• Temperature Sensor Type: Thermistor
• Operating Temperature Range: 32 °F to 102 °F (0 °C to 39 °C)
• Temperature Differential: ± 1 °F (± 0.5 °C)
• Backlight: LED
• Temperature Accuracy: ± 1 °F (± 0.5 °C)
• Connection Type: UWP Mounting System
• Mounting Method: UWP Mounting System
• Fan Speeds: 1
• Frequency: 50 Hz, 60 Hz
• Set Point Temperature Range: Heat: 32 °F to 90 °F (0 °C to 32 °C), Cool: 50 °F to 99 °F (10 °C to 37 °C)
• Switch Action Type: SPST
• Installation Location: Wall, Internal
• Control Switch Type: Relay
• Input Voltage: 20 to 30 Vac
• Operating Humidity: 5 to 90% RH, non-condensing
• System Switch Positions: HEAT-OFF or COOL-OFF
• Fan Switch Positions: AUTO-ON
• Display Temperature Range: 32 °F to 120 °F
• Changeover Type: Automatic, Manual
• Terminal Connections: G, O/B
