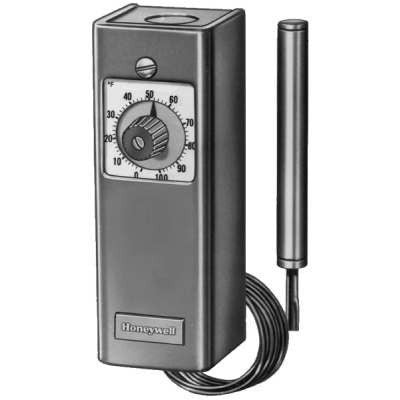

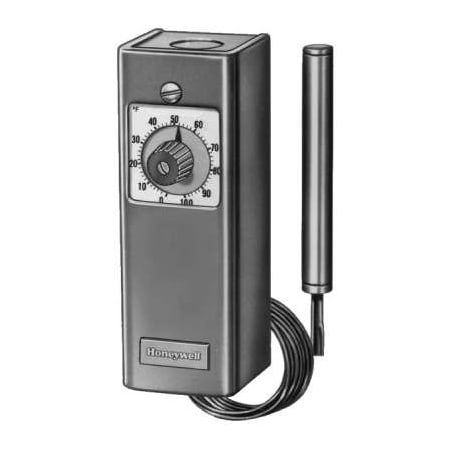

Resideo T675A1508 Temperature Controller 0-100 F (5 ft Capillary) Replacement T675A1508/U

Product Description

Resideo T675A1508 is a remote-bulb temperature controller with a 1/2 inch diameter by 4-3/16 inch copper remote bulb and a 5-foot capillary. It provides SPDT switching for control of dampers, valves, boilers, tanks, ducts, or pipes, with a 0 to 100 F set point range, 3 to 10 F differential, and ambient temperature compensation. The unit is approved to UL and CSA standards and can be mounted in any position.

• SPDT contact configuration; contact ratings: 8 A at 120 VAC, 5.1 A at 240 VAC, 4.2 A at 277 VAC (full load); 48 A at 120 VAC, 30.6 A at 240 VAC, 25.2 A at 277 VAC (locked rotor); 125 VA at 120/208/240/277 VAC
• Remote-bulb sensing: 1/2 in diameter x 4-3/16 in length copper bulb with 5 ft capillary; single sensor input; set point range 0 to 100 F and differential 3 to 10 F
• Overall dimensions 2 in W x 2-5/8 in D x 5-5/8 in H; frequency 50/60 Hz; includes two 7/8 in knockout holes; approvals UL and CSA

Product Highlights

Remote-bulb SPDT temperature controller, 0 to 100 F range, 5 ft capillary, 1/2 in x 4-3/16 in copper bulb, UL and CSA approvals

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: T675A1508
• Country of Origin: Unknown

Technical Specifications

• Manufacturer: Resideo
• Manufacturer Part Number: T675A1508
• Alternate Part Number: T675A1508/U
• Series/Model: T675A
• Product Type: Remote-bulb temperature controller
• Remote Bulb Size: 1/2 in diameter x 4-3/16 in length (copper)
• Capillary Length: 5 ft
• Maximum Temperature Rating: 125 F
• Set Point Range: 0 to 100 F
• Differential Temperature Rating: 3 to 10 F
• Contact Configuration: SPDT (single-pole double-throw)
• Contact Rating (Full Load): 8 A at 120 VAC; 5.1 A at 240 VAC; 4.2 A at 277 VAC
• Contact Rating (Locked Rotor): 48 A at 120 VAC; 30.6 A at 240 VAC; 25.2 A at 277 VAC
• Contact Rating (VA): 125 VA at 120/208/240/277 VAC
• Number of Sensor Inputs: 1
• Knockout Size: (2) 7/8 in diameter
• Frequency Rating: 50/60 Hz
• Overall Dimensions: 2 in W x 2-5/8 in D x 5-5/8 in H
• Approvals: UL, CSA
• Applications: Boiler, tank, duct, pipe; control of dampers and valves in heating-cooling systems
• Mounting: Can be mounted in any position; includes mounting bracket (107324A noted in source)
• Category: HVAC/R & Fans
• UNSPSC Code: 41112200
