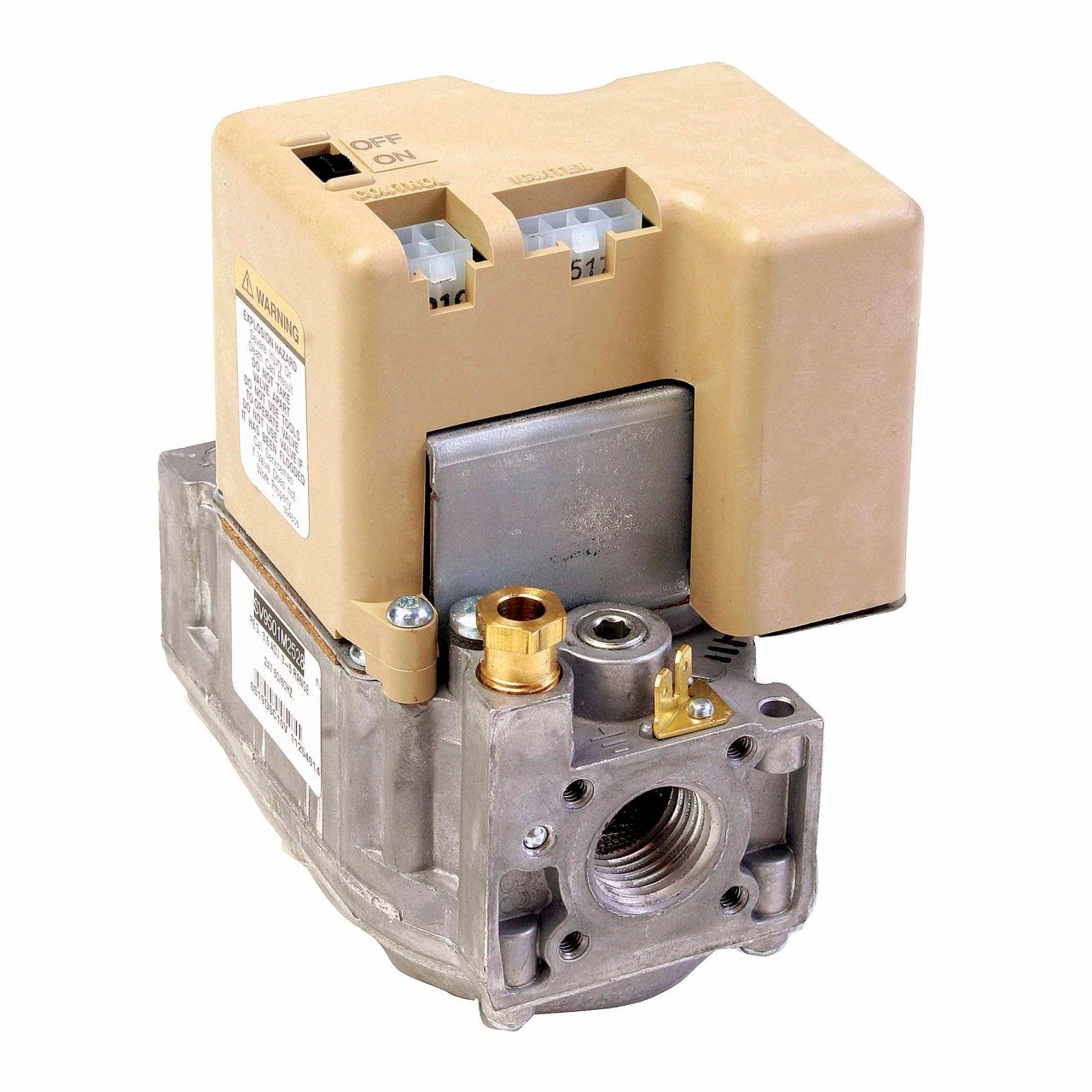

Resideo SV9602P4816/U control valve straight pattern 3/4 inch NPT

Product Description

The RESIDEO SV9602P4816/U Control Valve is a straight pattern valve designed for industrial and automation applications. With a 3/4-inch NPT connection, it provides seamless integration into existing pipelines. Its durable construction ensures longevity in demanding environments. This control valve offers precise regulation of fluid flow, making it suitable for various industrial processes.

• Accurate fluid flow control
• Straight pattern design for seamless integration
• Durable construction for demanding environments

Product Highlights

This control valve provides reliable and efficient fluid flow regulation for industrial and automation applications.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: SV9602P4816/U

Technical Specifications

• Includes: Two 3/4 in to 1/2 in Reducer Bushings, Extension Harness
• Approvals and Standards: CSA International: 112395, AGA IAS Certified: C2030017, CGA IAS Certified: C2030017, UL Approved: 98PSC00009
• Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
• Electrical Ratings: 24 Vac
• Frequency: 50 Hz; 60 Hz
• Flame Failure Response Time: 1.6 sec @ 3 µA
• PrePurge: 30 seconds
• Ambient Temperature Range: -40 F to +175 F
• Ignition System Type: Intermittent Hot Surface Pilot Ignition
• Ignition Sequence: Intermittent Pilot
• Gas Type: Natural
• Flame Sense: HSI
• Ignition Source: Pilot
• Ignition Trials To Lockout: Continuous Retry
• Ignition Trial Time: 90 sec
• Typical Ignition Hardware: Q3450; Q3480
• Body Pattern: Straight-Through
• Opening Characteristics: Step
• Pressure Regulator Setting: Full Rate: 3.5 in. WC; Step Setting: 0.7 in. WC non--adjustable
• Pressure Rating: 1/2 psi
• Inlet/Outlet Size: 3/4 in. NPT x 3/4 in. NPT.
• Pilot Gas Outlet: Yes
• Capacity: Maximum at 1 in. P.D.--300 ft³/hr; Maximum--415 ft³/hr; Minimum--30 ft³/hr
• Pressure Tapping: 1/8 in. - NPT
• End Style: NPT
• Series: SV9602
