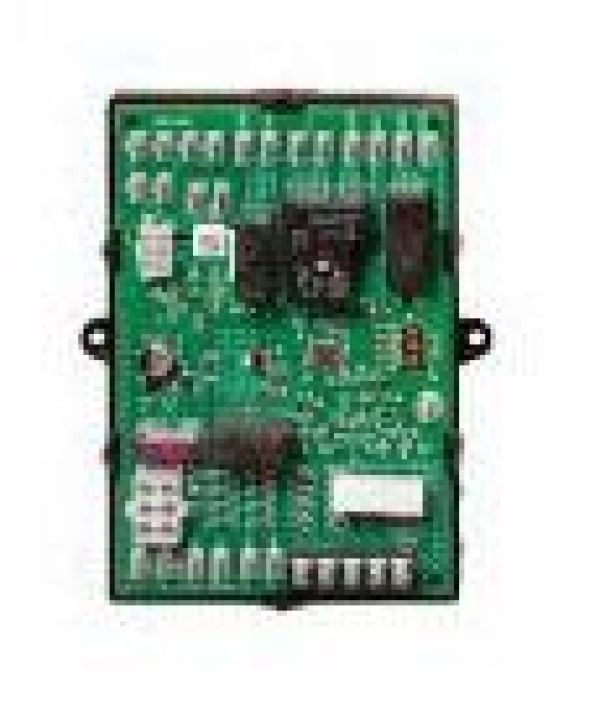

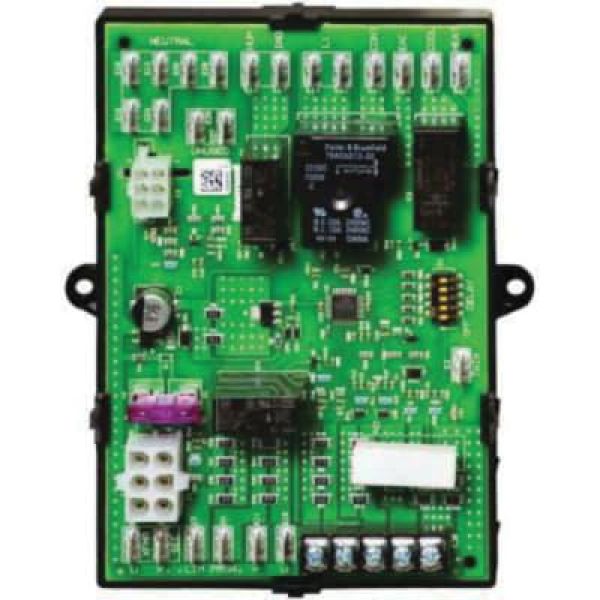

Resideo ST9120U1011 Electronic Fan Timer REPLACEMENT ST9141A1002

Product Description

The Resideo ST9120U1011 electronic fan timer integrates control of combustion blower and circulating fan operations in a gas warm air appliance. It features adjustable heat and cool fan on and off delays. It replaces Honeywell ST9120, ST9101, ST9141, and ST9160 models.

Product Highlights

The Resideo ST9120U1011 is a universal electronic fan timer with LED diagnostics, designed for gas warm air furnaces. It offers easy replacement with included instructions and wire harnesses.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: S1-ST9120U1011

Technical Specifications

• Manufacturer: Resideo
• Manufacturer Part Number: ST9120U1011/U
• UPC: 85267719582
• Additional Information: Ambient Temperature -40 to 175 Deg F; Application Gas Furnace
• Application: For integrates control of combustion blower and circulating fan operations for a gas warm air appliance
• Approval: CSA
• Brand: Resideo
• Maximum Off Time: 180 Second (Heat Fan), 60 Second (Cool Fan)
• Maximum On Time: 60 Second (Heat Fan), 30 Second (Cool Fan)
• Minimum Off Time: 60 Second (Heat Fan), 30 Second (Cool Fan)
• Minimum On Time: 30 Second (Heat Fan), 4 Second (Cool Fan)
• Product Features: Replaces 40+ Existing Honeywell Electronic Fan Timers; Instruction Sheet Supplies Full Cross Reference and Wiring Guide; Interface Harnesses for Simple Conversion; Integrates Control of all Combustion Blower and Circulating Fan Operations in Gas Warm-Air Appliance; Replaceable Fuse; DIP Switch Selectable Heat and Cool Delay on and Off Times; Led Lights for Easy Diagnostics; Electronic Air Cleaner and Humidifier Terminal Connections; Continuous Low Speed Indoor Air Circulation
• Standards/Approvals: CSA File No. LR95329-17 Certified, UL File No. MP466
• Temperature Rating: -40 to 175 deg F
• Type: Universal
• Voltage Rating: 18 to 30 Volt AC 50/60 Hertz
