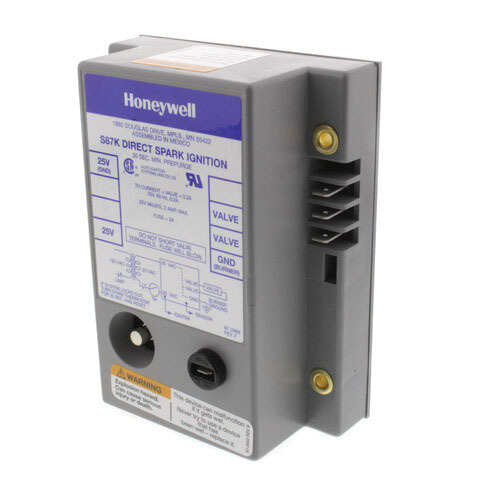

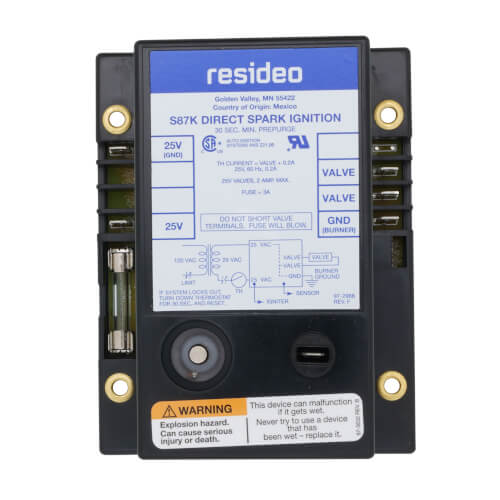

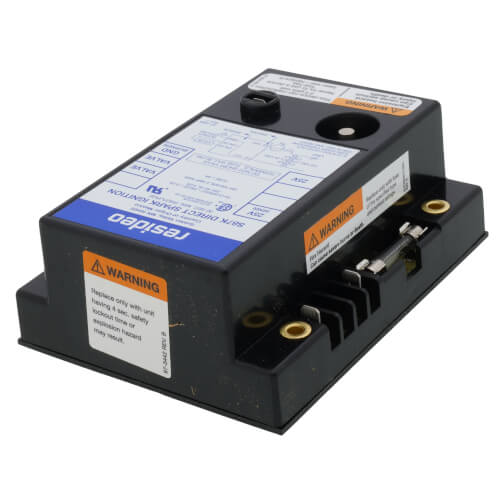

Resideo S87K1008 Direct Spark Ignition Control W/4 Second Trial and Lockout Timing

Product Description

The Resideo S87K1008 is a Direct Spark Ignition Control designed for reliable operation in gas-fired heating systems. This control module features a four-second trial for ignition and lockout timing.

• Controls ignition sequence in gas-fired heating systems.
• Works with various gas types including natural gas and LP.
• Compact size suitable for limited space applications.

Product Highlights

The Resideo S87K1008 ensures safe and efficient ignition, providing crucial control for gas appliances. This module supports direct spark ignition, suitable for use in furnaces and boilers.

Product Information

Standard Information

• Brand: Resideo
• Part Number: S87K1008

Technical Specifications

• Type: Direct Spark Ignition Module
• Voltage: 24 Vac
• Dimensions: 6.3 inches (Length) x 4.6 inches (Width) x 3.5 inches (Height)
• Ignition Trials To Lockout: 1
• Max Ambient Temperature: -40 F to +175 F
• Flame Failure Response Time: 0.8 sec at 5.0 microamp
